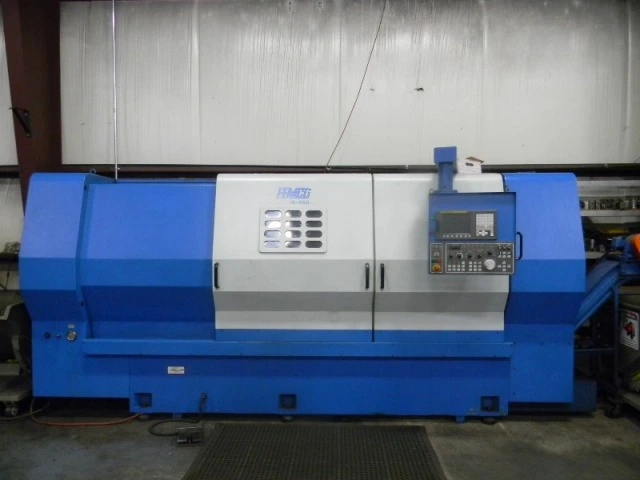

FEMCO HL-55S CNC TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS FEMCO HL-55S CNC LATHE WITH A FANUC 0I CONTROL HAS 40" CENTERS, A 15" CHUCK WITH 4.53" BAR CAP AND 2 SPEED GEARED HEADSTOCK.
SPECIFICATIONS:
MAXIMUM TURNING LENGTH 42.12
MAXIMUM SWING OVER BED 28.62
MAXIMUM TURNING DIAMETER 24.21
DISTANCE BETWEEN CENTERS 47.24
SPINDLE SPEED 2500 RPM
SPINDLE NOSE A2-11
SPRINDLE BORE 5.12
BAR CAPACITY 4.53
CHUCK DIAMETER 15
SPINDLE MOTOR DIRECT DRIVE 30/35HP
NUMBER OF STATIONS 12
X-AXIS TRAVEL 13.39
RAPID TRAVERSE RATE 630/MIN
Z-AXIS TRAVEL 43.31
RAPID TRAVERSE RATE 787
TAILSTOCK TRAVEL 43.1
QUILL DIAMETER 4.72
QUILL TRAVEL 4.72
QUILL TAPER MT#5
FANUC Oi CONTROL
BOX WAYS DESIGN
2 SPEED GEARED HEADSTOCK
CHIP CONVEYOR
ALL AVAILABLE TOOLING AND MANUALS
THIS FEMCO HL-55S CNC LATHE WITH A FANUC 0I CONTROL HAS 40" CENTERS, A 15" CHUCK WITH 4.53" BAR CAP AND 2 SPEED GEARED HEADSTOCK.
Imperial
| Max. Swing | 28.6" |
| Max Turning Diameter | 24.21" |
| Spindle Bore/Max Bar Capacity | 5.12"/ 4.53" |
| Z Travel | 43.31" |
| X Travel | 13.9" |
| Machining Length | 46" |
| Chuck Size | 15" |
| Chuck Type | Hydraullic |
| Spindle Motor | 30 hp |
| Spindle Speeds (RPM) | 2500 |
| Spindle Bore/Bar Capacity | 5.12 in |
| Max. Bar Capacity | 4.5" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Control | CNC (FANUC Oi) |
SPECIFICATIONS:
MAXIMUM TURNING LENGTH 42.12
MAXIMUM SWING OVER BED 28.62
MAXIMUM TURNING DIAMETER 24.21
DISTANCE BETWEEN CENTERS 47.24
SPINDLE SPEED 2500 RPM
SPINDLE NOSE A2-11
SPRINDLE BORE 5.12
BAR CAPACITY 4.53
CHUCK DIAMETER 15
SPINDLE MOTOR DIRECT DRIVE 30/35HP
NUMBER OF STATIONS 12
X-AXIS TRAVEL 13.39
RAPID TRAVERSE RATE 630/MIN
Z-AXIS TRAVEL 43.31
RAPID TRAVERSE RATE 787
TAILSTOCK TRAVEL 43.1
QUILL DIAMETER 4.72
QUILL TRAVEL 4.72
QUILL TAPER MT#5
FANUC Oi CONTROL
BOX WAYS DESIGN
2 SPEED GEARED HEADSTOCK
CHIP CONVEYOR
ALL AVAILABLE TOOLING AND MANUALS
