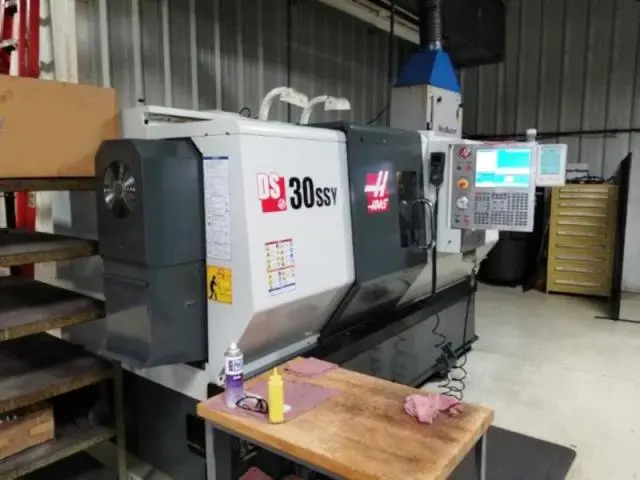

HAAS DS-30SSY DUAL SPINDLE LATHE
Have one to sell?
ConditionUsed
1 available
THIS 2014 HAAS DS-30SSY IS A DUAL SPINDLE LATHE WITH Y AXIS WITH 8" CHUCK, 3" BIG BORE OPTION, 300 PSI COOLANT THRU, CHIP CONVEYOR AND A BUNCH OF TOOLING.
HAAS DS-30SSY DUAL SPINDLE
NEW 2014
SPECIFICATIONS:
SWING OVER BED 31.75"
MAX TURNING DIAMETER 16"
MAX TURNING LENGTH 23"
Y AXIS TRAVEL +/- 2"
MAIN SPINDLE MOTOR 30 HP
MAIN SPINDLE SPEED 4,800 RPM
MAIN SPINDLE NOSE A2-6
MAIN SPINDLE CHUCK 8" 3-JAW
TURRET 24 STATION HYBRID (12 VDI/ 12 BOT)
SUB SPINDE MOTOR 20 HP
SUB SPINDLE SPEED 4,800 RPM
SUB SPINDLE NOSE A2-5
EQUIPPED WITH:
HAAS CNC CONTROL
DS-3BSS 3" BIG BORE
HPC 300 PSI HIGH PRESSURE COOLANT
ACF BAG FILTER SYSTEM
ATP AUTOMATIC TOOL PRESETTER
LCC3 BELT TYPE CHIP CONVEYOR
HIL HALOGEN LIGHTS
HV-ISO-XFR MR ISOLATED TRANSFORMER 380-480V
ETHERNET DATA TRANSFER PORT
EPFDM HAAS POWER FAILURE DETECTION
RJH-C REMOTE JOG HANDLE
EXPANDED-MEMORY SOLID STATE MEMORY
HLT-AHTH AXIAL LIVE TOOLHOLDER
HLT-RHTH RADIAL LIVE TOOLHOLDER
MIST COLLECTOR
***LOTS OF TOOLING***
THIS 2014 HAAS DS-30SSY IS A DUAL SPINDLE LATHE WITH Y AXIS WITH 8" CHUCK, 3" BIG BORE OPTION, 300 PSI COOLANT THRU, CHIP CONVEYOR AND A BUNCH OF TOOLING.
Imperial
| Maximum Swing | 31.75" |
| Max Turning Diameter | 16" |
| Main Spindle Bore/Max Bar Capacity | 3.0/ 2.625 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 23" |
| X-Axis Travel (X1, X2, X3) | 12.5 |
| Z-Axis Travel (Z1, Z2, Z3) | 23 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3" |
| Main Spindle Maximum Bar Work | 2.625" |
| Main Spindle Speed | 4,800 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,800 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 24 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| High Pressure Coolant System (PSI) | 300 |
| Number of Available Live Tool Holders | 2 |
| Control | CNC (HAAS) |
| Dimensions | 171" X 90" X 92" |
| Weight | 16,000 LBS |
HAAS DS-30SSY DUAL SPINDLE
NEW 2014
SPECIFICATIONS:
SWING OVER BED 31.75"
MAX TURNING DIAMETER 16"
MAX TURNING LENGTH 23"
Y AXIS TRAVEL +/- 2"
MAIN SPINDLE MOTOR 30 HP
MAIN SPINDLE SPEED 4,800 RPM
MAIN SPINDLE NOSE A2-6
MAIN SPINDLE CHUCK 8" 3-JAW
TURRET 24 STATION HYBRID (12 VDI/ 12 BOT)
SUB SPINDE MOTOR 20 HP
SUB SPINDLE SPEED 4,800 RPM
SUB SPINDLE NOSE A2-5
EQUIPPED WITH:
HAAS CNC CONTROL
DS-3BSS 3" BIG BORE
HPC 300 PSI HIGH PRESSURE COOLANT
ACF BAG FILTER SYSTEM
ATP AUTOMATIC TOOL PRESETTER
LCC3 BELT TYPE CHIP CONVEYOR
HIL HALOGEN LIGHTS
HV-ISO-XFR MR ISOLATED TRANSFORMER 380-480V
ETHERNET DATA TRANSFER PORT
EPFDM HAAS POWER FAILURE DETECTION
RJH-C REMOTE JOG HANDLE
EXPANDED-MEMORY SOLID STATE MEMORY
HLT-AHTH AXIAL LIVE TOOLHOLDER
HLT-RHTH RADIAL LIVE TOOLHOLDER
MIST COLLECTOR
***LOTS OF TOOLING***
