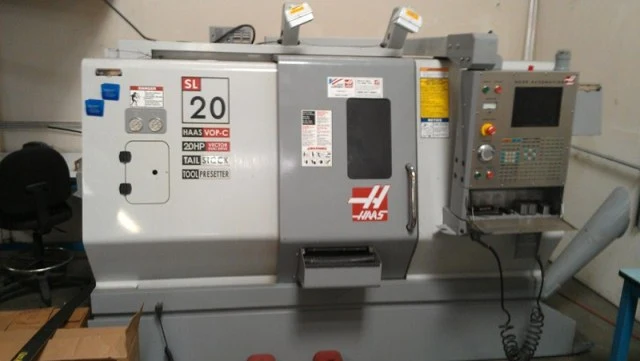

HAAS SL 20T

SPECIFICATIONS:
SWING OVER FRONT APRON                        20"
SWING OVER CROSS SLIDE                        9.5"
X-AXIS TRAVEL                                 8.45"
Z-AXIS TRAVEL                                 20"
RAPID TRAVERSE RATES                          710 IPM
CHUCK SIZE                                    8.3"
MAX BAR CAPACITY                              2"
DIST. BETWEEN CENTERS                         24"
MAX TURNING DIA                               10"
SPINDLE SPEEDS                                4,000 RPM
SPINDLE TORQUE                                154 @ 650 RPM
SPINDLE MOTOR                                 20 HP
SPINDLE BORE                                  3"
DRAW TUBE BORE                                2.06"
TURRET STATIONS                               10
MACHINE WEIGHT                                9,000 LBS
MACHINE DIMENSIONS                            127"L X 65"W X 72"H
