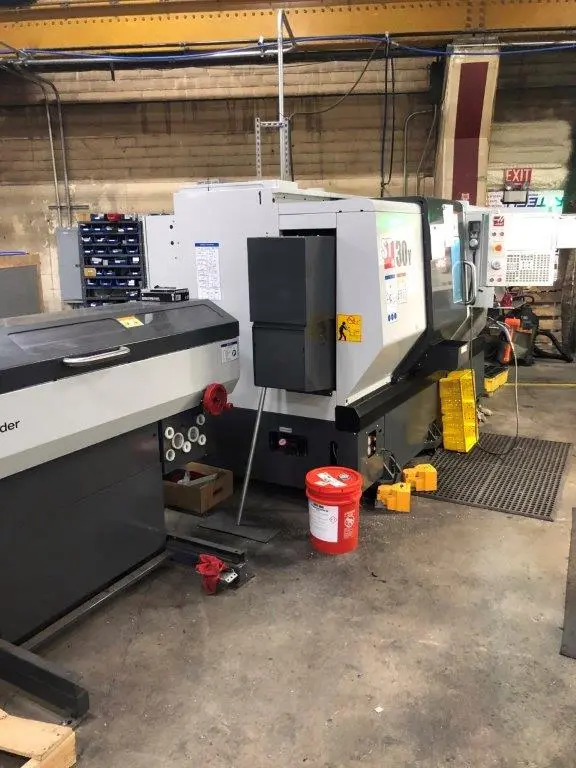

EXCEPTIONAL 2019 HAAS ST 30Y WITH VERY LOW HOURS COMES WITH A 12" CHUCK, 6000 RPM LIVE TOOLING UPGRADE, 6 LIVE TOOLS, BORING BAR HOLDERS, PARTS CATCHER, TAILSTOCK, BARFEEDER AND CHIP CONVEYOR.
| Maximum Swing | 31.75" |
| Max Turning Diameter | 26" |
| Main Spindle Bore/Max Bar Capacity | 3.46/ 3.0 |
| Tail Stock/Sub Spindle | Tail Stock |
| Distance Between Centers | 34" |
| Maximum Cutting Length | 26" |
| Distance Between Spindles | 34" |
| X-Axis Travel (X1, X2, X3) | 12.7 |
| Z-Axis Travel (Z1, Z2, Z3) | 26 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" |
| C-Axis Indexing (1, 2) | .001 |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Turret Tool Positions 1, 2 | 24 |
| Turret Type | Hybrid |
| B Axis Rotary Tool Spindle Speed | 6000 rpm |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 300 |
| Available Live Tool Holders | 6 |
| Control | CNC (HAAS) |
| Weight | 14,300 LBS |
SPECIFICATIONS:
SWING 31.75"
DISTANCE BET CENTERS 34"
Z-AXIS 26"
X-AXIS 12.7"
Y AXIS +/- 2"
# AXIS 4
CHUCK SIZE 12" CHUCK UPGRADE
TURRET 24 STATION BMT65 (1/2 INDEX) UPGRADE
BAR CAPACITY 3"
POWER 30 HP VECTOR DRIVE
MAX RPM 4,000 RPM
TURNING DIA 18"
WEIGHT 14,300
HAAS CNC CONTROL w/ 15" COLOR MONITOR
6000 RPM LIVE TOOLING SPEED UPGRADE
4000 RPM LIVE TOOLING w/ C-AXIS
HI-TORQUE LIVE TOOLING w/ C-AXIS
300 PSI COOLANT THRU
AUTOMATIC TOOL PRESETER
AUTO JET AIR BLAST
RIGID TAP
REMOTE JOG HANDLE
PARTS CATCHER SYSTEM
WIRELESS INTUITIVE PROBING (WIP)
PROGRAMMABLE HYDRAULIC TAILSTOCK - MT4
CHIP TRAY FILTER
HAAS BARFEEDER
CHIP CONVEYOR - BELT TYPE
6 LIVE TOOLS - 3 RADIAL/ 3 AXIAL
BORING BAR HOLDER 1" BMT65
BORING BAR HOLDER 1.5" BMT65
BORING BAR HOLDER 1.5" BMT65 SPLIT BODY
BORING BAR HOLDER 1" BMT65 SPLIT BODY
BORING BAR HOLDER 2" BMT65 SPLIT BODY
TURNING TOOL HOLDER 1" / .75" BMT65
1" Half-Index ID Boring Bar Static Toolholder w/3 holes, for BMT65 Turret
TURNING TOOL HOLDER I" BMT65
***ONLY 522 CUT HOURS!***
