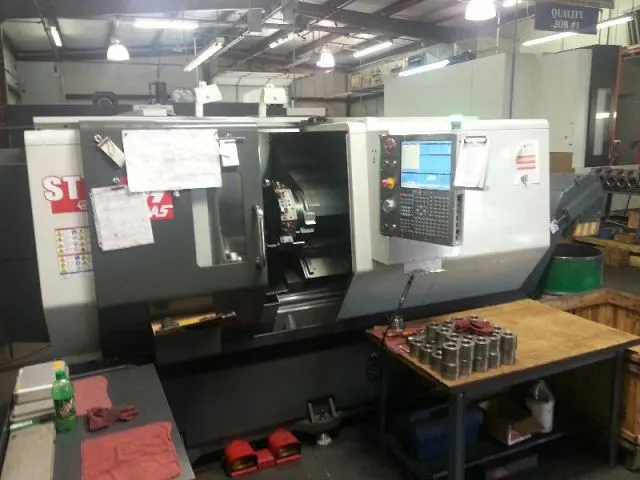

HAAS ST 30

SPECIFICATIONS:
SWING DIAMETER 31.75"
CHUCK SIZE 10"
BAR CAPACITY 4"
BETWEEN CENTERS 26"
MAX CUTTING DIAMETER 21"
MAXIMUM CUTTING LENGTH 26"
W/STANDARD WORKHOLDING 25"
X AXIS TRAVELS 12.75"
Z AXIS TRAVELS 26"
X AXIS MAX THRUST 4600 LB
Z AXIS MAX THRUST 5800 LB
RAPIDS ON X 945 IN/MIN
RAPIDS ON Z 945 IN/MIN
SPINDLE 6000RPM
TURRET NUMBER OF TOOLS 12
OD VS ID TOOLS ANY COMBINATION
TOOL SIZE (OD TURNING) 1"
ACCURACY
POSITIONING ±0.0002"
REPEATABILITY ±0.0001"
