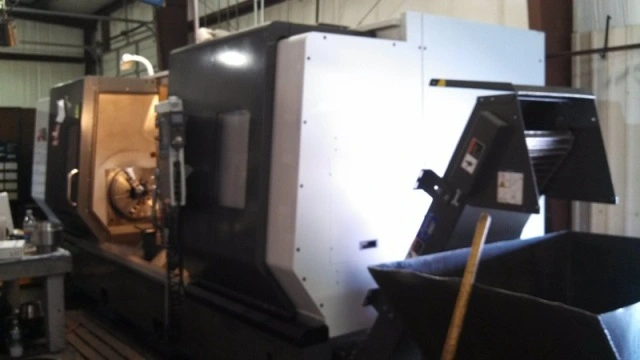

HAAS ST-40L
Have one to sell?
ConditionUsed
1 available
THIS HAAS ST 40L HAS A 7" BIG BORE OPTION AND 80" CENTERS, STEADY REST, BISON 20" 3 JAW SCROLL CHUCK, 300 PSI COOLANT THRU AND A 1400 RPM SPINDLE.
SPECIFICATIONS:
SWING oVER FRONT APRON 34.5"
SWING OVER CROSS SLIDE 25.5"
SWING OVER TAILSTOCK 25.5"
CHUCK SIZE 20" 4 JAW"
MAX CUTTING DIAMETER 25.5"
MAX CUTTING LENGTH 80"
X AXIS TRAVELS 17"
Z AXIS TRAVELS 80"
RAPIDS ON X 710 IN/MIN
RAPIDS ON Z 320 IN/MIN
MAX THRUST X 5500 LB
MAX THRUST Z 5500 LB
SPINDLE (BIG BORE OPTION)
MAX RATING 55 HP
MAX SPEED 1400 RPM
SPINDLE NOSE A2-11
SPINDLE BORE 7.0"
TURRET
NUMBER OF TOOLS 12 STATIONS
BORING BAR REAR CLEARANCE
(FROM BACK OF TURRET ) 4.37"
AIR REQUIRED 4 SCFM, 100 PSI
COOLANT CAPACITY 120 GAL
MACHINE WEIGHT 30000 LB
EQUIPPED WITH:
HAAS INTUITIVE PROGRAMMING SYSTE
2-SPEED GEARBOX
12-STATION BOLT-ON TURRET
PROGRAMMABLE HYDRAULIC TAILSTOCK
USB PORT AND RIGID TAPPING
7.0" (178 MM) BIG BORE OPTION
A2-11 SPINDLE
2-SPEED GEARBOX; 1400 RPM (MAX)
CHIP CONVEYOR, BELT TYPE
HIGH-INTENSITY LIGHTING
DUAL HALOGEN EXTERNAL LIGHTS M
HIGH-PRESSURE COOLANT, 300 PSI (21 BAR)
EXTRA PERFORMANCE OPTION FOR SL-40, INCLUDING:
55HP SPINDLE MOTOR & 12HP Z-AXIS SERVO MOTOR
STEADY REST PROVISION WITH MANUAL POSITIONING ALONG Z AXIS
FULL WRAP STEADY REST FOR CNC LATHE CAPACITY 1" -12.00"
BISON 20 INCH, 3 JAW SCROLL CHUCK, MODEL 7-825-2011, A2-11 MOUNT
THIS HAAS ST 40L HAS A 7" BIG BORE OPTION AND 80" CENTERS, STEADY REST, BISON 20" 3 JAW SCROLL CHUCK, 300 PSI COOLANT THRU AND A 1400 RPM SPINDLE.
Imperial
| Max. Swing | 34.5" |
| Max Turning Diameter | 25.5" |
| Spindle Bore/Max Bar Capacity | 7" |
| Z Travel | 80" |
| X Travel | 17" |
| Machining Length | 80" |
| Chuck Size | 20" |
| Chuck Type | Manual |
| Spindle Motor | 55 hp |
| Spindle Speeds (RPM) | 1400 |
| Spindle Bore/Bar Capacity | 7 in |
| Max. Bar Capacity | 7" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Steady Rest | Yes |
| Control | CNC (HAAS) |
| Weight | 30,000 LBS |
SPECIFICATIONS:
SWING oVER FRONT APRON 34.5"
SWING OVER CROSS SLIDE 25.5"
SWING OVER TAILSTOCK 25.5"
CHUCK SIZE 20" 4 JAW"
MAX CUTTING DIAMETER 25.5"
MAX CUTTING LENGTH 80"
X AXIS TRAVELS 17"
Z AXIS TRAVELS 80"
RAPIDS ON X 710 IN/MIN
RAPIDS ON Z 320 IN/MIN
MAX THRUST X 5500 LB
MAX THRUST Z 5500 LB
SPINDLE (BIG BORE OPTION)
MAX RATING 55 HP
MAX SPEED 1400 RPM
SPINDLE NOSE A2-11
SPINDLE BORE 7.0"
TURRET
NUMBER OF TOOLS 12 STATIONS
BORING BAR REAR CLEARANCE
(FROM BACK OF TURRET ) 4.37"
AIR REQUIRED 4 SCFM, 100 PSI
COOLANT CAPACITY 120 GAL
MACHINE WEIGHT 30000 LB
EQUIPPED WITH:
HAAS INTUITIVE PROGRAMMING SYSTE
2-SPEED GEARBOX
12-STATION BOLT-ON TURRET
PROGRAMMABLE HYDRAULIC TAILSTOCK
USB PORT AND RIGID TAPPING
7.0" (178 MM) BIG BORE OPTION
A2-11 SPINDLE
2-SPEED GEARBOX; 1400 RPM (MAX)
CHIP CONVEYOR, BELT TYPE
HIGH-INTENSITY LIGHTING
DUAL HALOGEN EXTERNAL LIGHTS M
HIGH-PRESSURE COOLANT, 300 PSI (21 BAR)
EXTRA PERFORMANCE OPTION FOR SL-40, INCLUDING:
55HP SPINDLE MOTOR & 12HP Z-AXIS SERVO MOTOR
STEADY REST PROVISION WITH MANUAL POSITIONING ALONG Z AXIS
FULL WRAP STEADY REST FOR CNC LATHE CAPACITY 1" -12.00"
BISON 20 INCH, 3 JAW SCROLL CHUCK, MODEL 7-825-2011, A2-11 MOUNT
