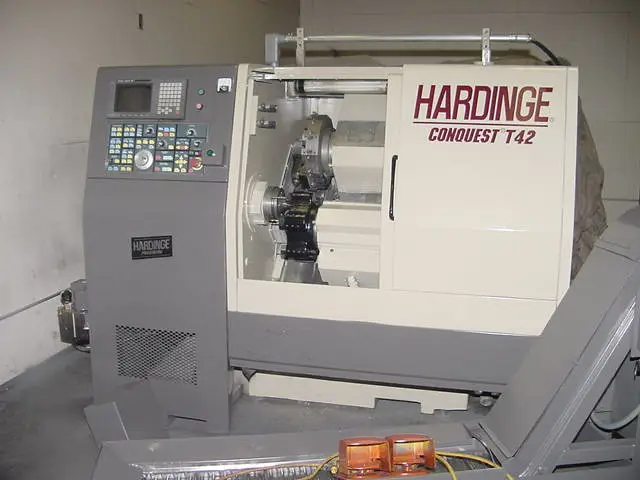

HARDINGE CONQUEST T-42 CNC LATHE with LIVE TOOLING AND END WORKING TURRET
Have one to sell?
ConditionUsed
1 available
THIS HARDINGE CONQUEST T-42 CNC LATHE with LIVE TOOLING AND 6 POSITION END WORKING TURRET HAS AN 8" POWERHOLD CHUCK AND 16C COLLET, 12 POSITION UPPER TURRET WITH 6 LIVE STATIONS.
SPECIFICATIONS:
SPINDLE CONFIGURATION (ANSI) A2-5"
16C ROUND COLLET (THROUGH CAPACITY) 1.625"
AC DIGITAL DRIVE SYSTEM STANDARD 10 HP
TORQUE RATING 42 FT-LB
SPEED RANGE (1-RPM STEPS) 50 TO 5000
CARRIAGE AND CROSS SLIDE
SWING DIAMETER OVER UPPER WAY COVER 21.2"
X-AXIS TRAVEL (MAX.) 5.5"
X-AXIS RAPID TRAVERSE RATE 472 IPM
Z-AXIS RAPID TRAVERSE RATE 630 IPM
Z-AXIS (DRILLING) THRUST (MAX.) 1,500 LBS
BI-DIRECTIONAL VERTICAL TURRET
NO. OF STATIONS 12
SQUARE SHANK TOOL SIZE (MAX.) 3/4"
ROUND SHANK TOOL SIZE (MAX.) 1-1/4"
DISTANCE FROM SPINDLE FACE/TURRET (MAX.) 14"
TURNING DISTANCE (MAX.) 13.8"
COMPRESSED AIR REQUIREMENT 70 TO 90 PSI
5 TO 6 SCFM
SHIPPING WEIGHT, BASE MACHINE (APPROX.) 9,800 LBS
MACHINE DIMENSIONS LENGTH 93"
LENGTH WITH CHIP REMOVAL SYSTEM 123.67"
DEPTH 70"
HEIGHT 67"
FANUC 18T CNC CONTROL
8" POWERHOLD 3-JAW HYD. CHUCK
COLLET CHUCK
PARTS CATCHER
12 POSITION UPPER TURRET w/6 LIVE STATIONS
6 POSITION ENDWORKING TURRET
CHIP CONVEYOR
ALL AVAILABLE STANDARD AND LIVE TOOLHOLDERS
ALL AVAILABLE MANUALS
THIS HARDINGE CONQUEST T-42 CNC LATHE with LIVE TOOLING AND 6 POSITION END WORKING TURRET HAS AN 8" POWERHOLD CHUCK AND 16C COLLET, 12 POSITION UPPER TURRET WITH 6 LIVE STATIONS.
Imperial
| Max. Swing | 21.2" |
| Max Turning Diameter | 13.8" |
| Spindle Bore/Max Bar Capacity | 1.625" |
| Z Travel | 13.65" |
| X Travel | 5.31" |
| Chuck Size | 8" |
| Chuck Type | Hydraullic |
| Spindle Motor | 10 hp |
| Spindle Speeds (RPM) | 5000 |
| Max. Bar Capacity | 1.625" |
| Turret Tool Positions | 12 |
| Tailstock | No |
| Chip Conveyor | Yes |
| Control | CNC (FANUC 18T) |
| Dimensions | 123.67" X 70" X 67" |
| Weight | 9800 |
SPECIFICATIONS:
SPINDLE CONFIGURATION (ANSI) A2-5"
16C ROUND COLLET (THROUGH CAPACITY) 1.625"
AC DIGITAL DRIVE SYSTEM STANDARD 10 HP
TORQUE RATING 42 FT-LB
SPEED RANGE (1-RPM STEPS) 50 TO 5000
CARRIAGE AND CROSS SLIDE
SWING DIAMETER OVER UPPER WAY COVER 21.2"
X-AXIS TRAVEL (MAX.) 5.5"
X-AXIS RAPID TRAVERSE RATE 472 IPM
Z-AXIS RAPID TRAVERSE RATE 630 IPM
Z-AXIS (DRILLING) THRUST (MAX.) 1,500 LBS
BI-DIRECTIONAL VERTICAL TURRET
NO. OF STATIONS 12
SQUARE SHANK TOOL SIZE (MAX.) 3/4"
ROUND SHANK TOOL SIZE (MAX.) 1-1/4"
DISTANCE FROM SPINDLE FACE/TURRET (MAX.) 14"
TURNING DISTANCE (MAX.) 13.8"
COMPRESSED AIR REQUIREMENT 70 TO 90 PSI
5 TO 6 SCFM
SHIPPING WEIGHT, BASE MACHINE (APPROX.) 9,800 LBS
MACHINE DIMENSIONS LENGTH 93"
LENGTH WITH CHIP REMOVAL SYSTEM 123.67"
DEPTH 70"
HEIGHT 67"
FANUC 18T CNC CONTROL
8" POWERHOLD 3-JAW HYD. CHUCK
COLLET CHUCK
PARTS CATCHER
12 POSITION UPPER TURRET w/6 LIVE STATIONS
6 POSITION ENDWORKING TURRET
CHIP CONVEYOR
ALL AVAILABLE STANDARD AND LIVE TOOLHOLDERS
ALL AVAILABLE MANUALS
