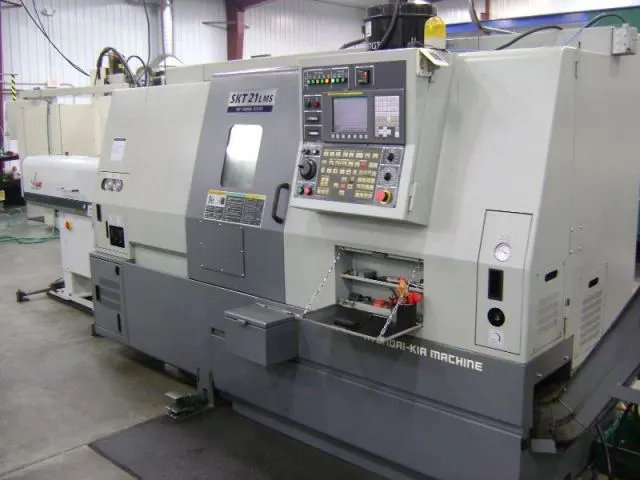

HYUNDAI-KIA SKT 21 LMS MULTI AXIS LATHE
Have one to sell?
ConditionUsed
1 available
THIS HYUNDAI-KIA SKT 21LMS COMES WITH AN 8" & 5" SAMCHULLY POWER GRIP CHUCKS, SUB-SPINDLE, PARTS CATCHER AND PREPPED FOR A BAR FEEDER. IT COMES EQUIPPED WITH A FANUC 0i-TC CNC CONTROL AND SEVERAL LIVE TOOLS.
SPECIFICATIONS:
CAPACITY: SWING OVER BED / SWING OVER SADDLE 21.7" / 13.8"
MAXIMUM TURNING DIAMETER / LENGTH 10.2" / 20.87"
SPINDLE: SPINDLE SPEEDS 25 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE 3.1" / 2.56" / A2-6
MAIN MOTOR (30 MIN. / CONTINUOUS) 20 / 15 HP
SUB-SPINDLE: SPEEDS 40 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE / INDEXING 1.7" / 1.3" / A2-8
MOTOR (30 MIN. / CONT.) 5 / 3 HP
TURRET: NUMBER OF POSITIONS 12 STATIONS
X-AXIS TRAVEL 8.3"
Z-LONGITUDINAL 21.7"
ROTARY TOOLS: ROTARY TOOL SPEED 30 - 4,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONTINUOUS) 5 / 3 HP
RAPIDS: RAPID TRAVERSE (X / Z ) 590 / 708 IPM
FEED RATE (X & Z ) 0.04 - 157 IPM
DIMENSIONS: FLOOR SPACE (L X W X H) 120" X 66" X 80"
WEIGHT (APPROX) 10,000 LBS
FANUC 0i-TC CNC CONTROL
LIVE TOOLING
SUB-SPINDLE
PARTS CATCHER
TOOL SETTER
8" POWER GRIP/SAM CHULLY CHUCK
5" POWER GRIP/SAM CHULLY CHUCK FOR SUB-SPINDLE
RS 232 PORT
BAR FEED PREPPED
ATS 5C COLLET HOLDER FOR SUP SPINDLE
QTY 2: RADIAL LIVE TOOLING - ER 32 X AXIS
QTY 2 AXIAL LIVE TOOLING - ER 32 Z AXIS
QTY 3: 1" OD HOLDER W/SUB
QTY 2: 1" OD HOLDER
QTY 1: 1" FACING HOLDER
QTY 4: 1" TWO POSITION ID HOLDER
QTY 1: 1" ID FOR MAIN/1" OD ON SUB
QTY 1: 1.25 ID W/THRU COOLANT
BARFEED AND ROYAL MIST COLLECTOR DO NOT COME WITH THE MACHINE
THIS HYUNDAI-KIA SKT 21LMS COMES WITH AN 8" & 5" SAMCHULLY POWER GRIP CHUCKS, SUB-SPINDLE, PARTS CATCHER AND PREPPED FOR A BAR FEEDER. IT COMES EQUIPPED WITH A FANUC 0i-TC CNC CONTROL AND SEVERAL LIVE TOOLS.
Imperial
| Maximum Swing | 21.7" |
| Max Turning Diameter | 10.2" |
| Main Spindle Bore/Max Bar Capacity | 3.1/ 2.56 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 13.8" |
| Maximum Cutting Length | 20.87" |
| Distance Between Spindles | 21.7" |
| X-Axis Travel (X1, X2, X3) | 8.3 |
| Z-Axis Travel (Z1, Z2, Z3) | 21.7 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.1" |
| Main Spindle Maximum Bar Work | 2.56" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20/ 15 |
| Sub Spindle/2nd Spindle Chuck Size | 5 |
| Sub Spindle/2nd Spindle Bore Size | 1.7/ 1.3 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 5/3 |
| Turret Tool Positions 1, 2 | 12 |
| B Axis Rotary Tool Spindle Speed | 4000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 5 hp |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | No |
| Tool Eye Measurement Upper Turret | Yes |
| Number of Available Live Tool Holders | 4 |
| Control | CNC (FANUC 0i-TC) |
| Dimensions | 120" X 66" X 80" |
| Weight | 10,000 LBS |
SPECIFICATIONS:
CAPACITY: SWING OVER BED / SWING OVER SADDLE 21.7" / 13.8"
MAXIMUM TURNING DIAMETER / LENGTH 10.2" / 20.87"
SPINDLE: SPINDLE SPEEDS 25 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE 3.1" / 2.56" / A2-6
MAIN MOTOR (30 MIN. / CONTINUOUS) 20 / 15 HP
SUB-SPINDLE: SPEEDS 40 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE / INDEXING 1.7" / 1.3" / A2-8
MOTOR (30 MIN. / CONT.) 5 / 3 HP
TURRET: NUMBER OF POSITIONS 12 STATIONS
X-AXIS TRAVEL 8.3"
Z-LONGITUDINAL 21.7"
ROTARY TOOLS: ROTARY TOOL SPEED 30 - 4,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONTINUOUS) 5 / 3 HP
RAPIDS: RAPID TRAVERSE (X / Z ) 590 / 708 IPM
FEED RATE (X & Z ) 0.04 - 157 IPM
DIMENSIONS: FLOOR SPACE (L X W X H) 120" X 66" X 80"
WEIGHT (APPROX) 10,000 LBS
FANUC 0i-TC CNC CONTROL
LIVE TOOLING
SUB-SPINDLE
PARTS CATCHER
TOOL SETTER
8" POWER GRIP/SAM CHULLY CHUCK
5" POWER GRIP/SAM CHULLY CHUCK FOR SUB-SPINDLE
RS 232 PORT
BAR FEED PREPPED
ATS 5C COLLET HOLDER FOR SUP SPINDLE
QTY 2: RADIAL LIVE TOOLING - ER 32 X AXIS
QTY 2 AXIAL LIVE TOOLING - ER 32 Z AXIS
QTY 3: 1" OD HOLDER W/SUB
QTY 2: 1" OD HOLDER
QTY 1: 1" FACING HOLDER
QTY 4: 1" TWO POSITION ID HOLDER
QTY 1: 1" ID FOR MAIN/1" OD ON SUB
QTY 1: 1.25 ID W/THRU COOLANT
BARFEED AND ROYAL MIST COLLECTOR DO NOT COME WITH THE MACHINE
