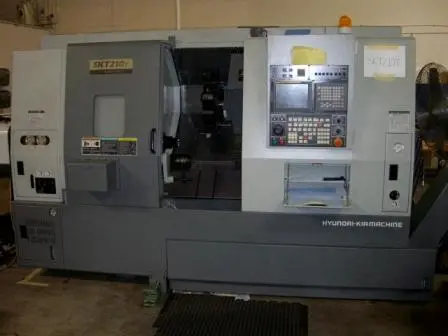

HYUNDAI KIA SKT 210MY
Have one to sell?
ConditionUsed
1 available
THIS HYUNDAI KIA SKT 210Y INCLUDES AN 8" CHUCK FOR UP TO 2" BAR WORK, PARTS CATCHER AND LNS BAR FEEDER.
SPECIFICATIONS:
MAX SWING 21.7"
MAX TURN DIA. 9.5"
MAX TURN LENGTH 20.9"
DISTANCE BETWEEN CENTERS 31"
Y TRAVELS L3.2"
RAPID 394 IPM
BAR CAPACITY 2.6"
MAIN SPINDLE 20/15HP
SPINDLE A2-11
SAMCHULLY CHUCK 8"
MAIN SPINDLE AND LIVE TOOL 4000 RPM
SAUTER VDI40 TURRET. 12 STATION
RADIAL LIVE TOOLS 3
AXIAL LIVE TOOLS. 3
OD TOOL HOLDERS. 7 1" SQUARE
TOOL HOLDERS 4 1.5" DIA.
FANUC 21 iTB CONTROL
8" CHUCK
2.44" SPINDLE BORE
2" HOLE USABLE
12 ATC
TOOL EYE
LNS - ECO BARFEEDER
TOOL PRESETTER
HYDRAULIC TAILSTOCK - MT4
PARTS CATCHER
CHIP CONVEYOR
THIS HYUNDAI KIA SKT 210Y INCLUDES AN 8" CHUCK FOR UP TO 2" BAR WORK, PARTS CATCHER AND LNS BAR FEEDER.
Imperial
| Max. Swing | 21.7" |
| Max Turning Diameter | 10" |
| Spindle Bore/Max Bar Capacity | 2.44"/ 2.0" |
| Z Travel | 21.6" |
| X Travel | 9.5" |
| Machining Length | 20.9" |
| Chuck Size | 8" |
| Chuck Type | Hydraullic |
| Spindle Motor | 20 hp |
| Spindle Speeds (RPM) | 4000 |
| Spindle Bore/Bar Capacity | 2.44 in |
| Max. Bar Capacity | 2" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Parts Catcher | Yes |
| Bar Feed | Yes |
| Control | CNC (FANUC 21 i-TB) |
SPECIFICATIONS:
MAX SWING 21.7"
MAX TURN DIA. 9.5"
MAX TURN LENGTH 20.9"
DISTANCE BETWEEN CENTERS 31"
Y TRAVELS L3.2"
RAPID 394 IPM
BAR CAPACITY 2.6"
MAIN SPINDLE 20/15HP
SPINDLE A2-11
SAMCHULLY CHUCK 8"
MAIN SPINDLE AND LIVE TOOL 4000 RPM
SAUTER VDI40 TURRET. 12 STATION
RADIAL LIVE TOOLS 3
AXIAL LIVE TOOLS. 3
OD TOOL HOLDERS. 7 1" SQUARE
TOOL HOLDERS 4 1.5" DIA.
FANUC 21 iTB CONTROL
8" CHUCK
2.44" SPINDLE BORE
2" HOLE USABLE
12 ATC
TOOL EYE
LNS - ECO BARFEEDER
TOOL PRESETTER
HYDRAULIC TAILSTOCK - MT4
PARTS CATCHER
CHIP CONVEYOR
