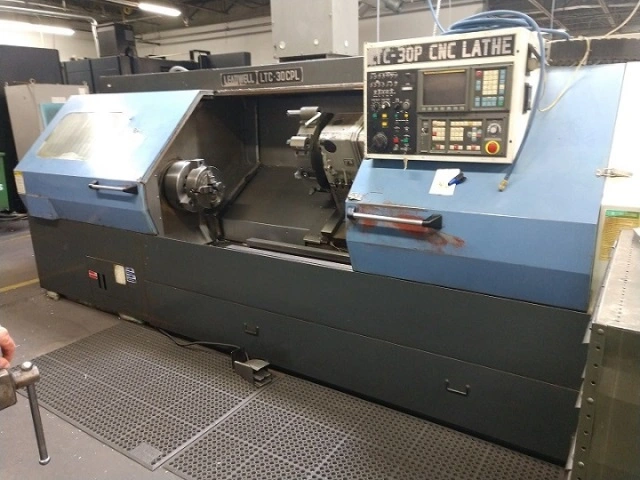

LEADWELL LTC 30-CPL 2 AXIS SLANT BED LATHE

SPECIFICATIONS:
MAXIMUM SWING                          25.5"
SWING OVER CROSS SLIDE                 20.3"
MAXIMUM TURNING DIAMETER               18."
MAXIMUM TURNING LENGTH                 56"
DISTANCE BETWEEN CENTERS               60"
X-AXIS TRAVEL                          10.6"
Z-AXIS TRAVEL                          58.5"
SPINDLE SPEEDS                         20 - 2,000 RPM
RAPID TRAVERSE (X /Z)          600 / 472 IPM
SPINDLE BORE                           5.3"
BAR CAPACITY                           4.53"
SPINDLE NOSE                           A2-11
MAIN MOTOR (30 MIN / CONTINUOUS)       40 / 30 HP
NUMBER OF POSITIONS                    8 STATION TURRET
STROKE OF TAILSTOCK BODY / QUILL       4.9"
STROKE OF TAILSTOCK QUILL              4.93
QUILL DIAMETER                         6.13
QUILL TAPER                            MT#6
RAPID TRAVERSE (X / Z )                600 / 472 IPM
