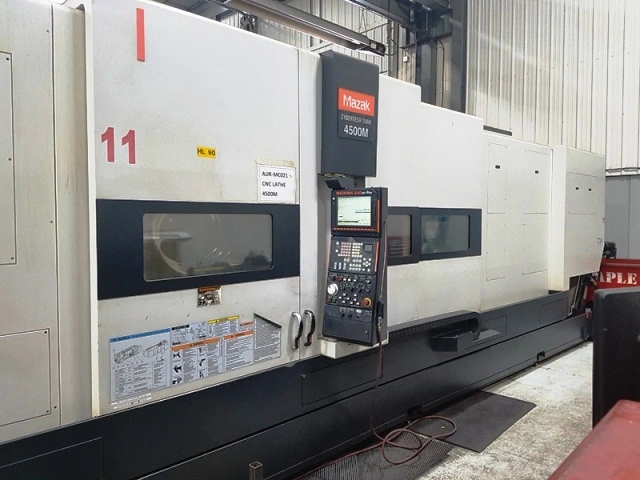

MAZAK CYBERTECH TURN 4500M/ 3000

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
CYBERTECH TURN 4500M/ 3000
Year:
2008
Stock #:
4872
Status:
For Sale
Serial #:
184045

Description

THIS CYBERTECH 4500M HAS 120" CENTERS, FUSION 640MT CONTROL, 22" AIR CHUCK WITH 9.1" BORE IN FRONT, 18" MANUAL ON BACK, LONG BORING BAR STOCKER,SMW STEADY REST AND 213 PSI COOLANT THRU.

Maximum Swing33.88"860.55 mm
Max Turning Diameter31.88"809.75 mm
Main Spindle Bore/Max Bar Capacity9.1"/7.28'9.1"/7.28'
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Cutting Length120"3,048 mm
X-Axis Travel (X1, X2, X3)21.375"21.375"
Z-Axis Travel (Z1, Z2, Z3)123.25"123.25"
C-Axis Indexing (1, 2).001 Deg.001 Deg
Main Spindle Chuck Size22"558.8 mm
Main Spindle Chuck TypeAirAir
Main Spindle Speed600 RPM600 RPM
Main Spindle Horsepower (CONT. /30 MINS)5050
Rear ChuckYesYes
Rear Chuck Diameter18"457.2 mm
Rear Chuck TypeManualManual
Number of Turrets11
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 230003000
Turret Rotary Tool Horse Power 1, 21515
Long Boring Bar Stocker2-Bar2-Bar
Long Boring Bar HolderYesYes
Steady RestYesYes
Chip ConveyorYesYes
Chip ConveyorSideSide
Tool Eye Automatic Front SpindleYesYes
Coolant Thru Milling HeadYesYes
Multi Tap TransformerYesYes
ControlCNC (MAZATROL FUSION 640MT CONTROL)CNC (MAZATROL FUSION 640MT CONTROL)
Dimensions284" X 98" X 111"284" X 98" X 111"
Weight35,715 LBS.35,715 LBS.

MAZATROL FUSION 640MT CONTROL
WINDOWS 2000 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
12.1" COLOR LCD
TOOL EYE (AUTOMATIC) FOR 24” CHUCK
1 - 22" AIR CHUCK/ 9.1" BAR CAP (goes back about 8")
1 - 18" MANUAL 4 JAW ON BACK
LONG BORING BAR STOCKER (2-BAR)
LONG BORING BAR HOLDER W/O BAR 80MM ID FOR LBB STOCKER
CHIP CONVEYOR 3000U (120”) (SIDE HINGE TYPE) W/ LBB
PREPARATION FOR REAR MOUNTED AIR CHUCK
SMW K5 STEADY REST PREPARATION
SMW STEADY REST K5-Z HEAD INSTALLED
TURNING HOLDER (SPINDLE FORWARD) 53788016100
OPTIMIZER TECHNICAL LIBRARY
DIGITAL DOCUMENTATION 2 CD ROMS
HIGH-POWER COOLANT (2.2KW)
213 PSI/ 2.5 GPM
SPINDLE BORE DIA. 185MM (7.28”)/ 1600RPM
