MAZAK CYBERTECH TURN 5500M /120"
Have one to sell?
ConditionUsed
1 available

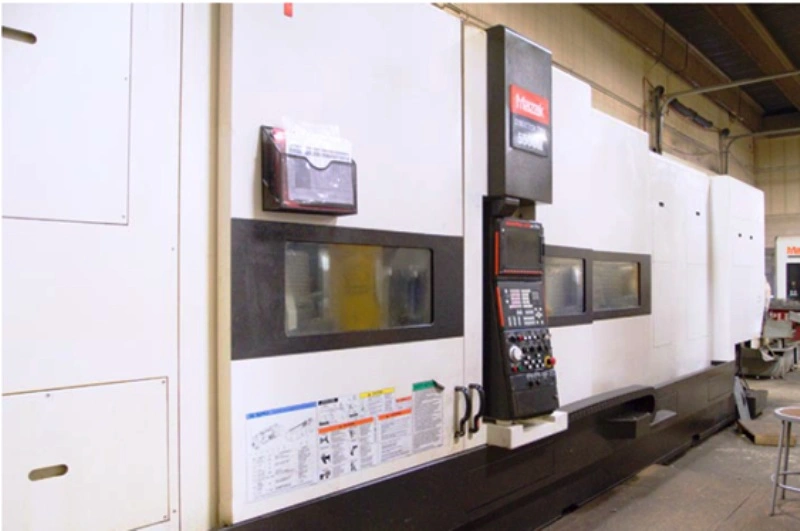

THIS CYBERTECH 5500M HAS 120" CENTERS, FUSION 640MT CONTROL, 33" EXTENDED STROKE AIR CHUCK, SMW STEADY REST, LONG BORING BAR STOCKER, 31" REAR CHUCK AND 213 PSI COLANT THRU.
SPECIFICATIONS:
MAXIMUM SWING DIAMETER 36"
SWING OVER CARRIAGE 27.5"
NOTE SWING IS RESTRICTED TO 20.87" WHEN EQUIPPED WITH STEADY REST.
MAX. CUTTING DIAMETER 31.9"
MAX. CUTTING LENGTH 120"
SPINDLE NOSE A2-20
SPINDLE BORE 14.8"
SPINDLE SPEED 500 RPM
NUMBER OF SPEED RANGES 2 STEPS
SPINDLE INDEX (PROGRAMMABLE) 0.001 DEGREE
SPINDLE HORSEPOWER (CONT/30 MIN) 50/60 HP
SPINDLE TORQUE 8,481 FT-LBS
C-AXIS TORQUE (30 MIN.) 1,032 FT-LBSTURRET AND TOOLING
TYPE OF TURRET MODIFIED VDI
NUMBER OF TOOLS 12
TURNING & FACING 1.25"X1.25"X6"L
BORING BAR MAXIMUM DIAMETER 2.5"
TURRET INDEX TIME (SEC) 0.4 SEC/1 STEP
ROTARY TOOL SPINDLE SPEED 3,000 RPM
ROTARY TOOL SPINDLE HORSEPOWER (CONT/30MIN) 10/15 HP
ROTARY TOOL TORQUE 03 FT-LBS
MAXIMUM FACE MILL 4"
MAXIMUM DRILL 1.57"
MAXIMUM END MILL 1.57"
MAXIMUM TAP M30AXIS TRAVELS
X-AXIS 21.25"
Z-AXIS 120"....123.3"
AXIS THRUST FORCE (CONT/180% DUTY):
X 5,842/11,684 LBS
Z 5,181/9,568 LBS
AXIS RAPID RATES:
X 945 IPM
Z 1181 IPM
C-AXIS 18 RPM
SERVO DRIVEN TAILSTOCK SPECIFICATIONS (UNIVERSAL):
SPINDLE CENTER MT#6
MAXIMUM SPINDLE THRUST 7,873 LBS
BODY RAPID RATE 236 IPM
TAILSTOCK BODY TRAVEL:
120" UNIVERSAL 100.4"
GENERAL SPECIFICATIONS:
FLOOR SPACE 101.45" X 283.4"
MACHINE HEIGHT 113"
TOTAL POWER REQUIRED (MACHINE ONLY) 85.03 KVA
NOTE ACTUAL MACHINE MAIN TRANSFORMER KVA RATING WILL BE
GREATER.
AIR REQUIREMENTS 71 PSI / 4.24CFM
TOTAL WEIGHT 50,705 LBS
MAZATROL FUSION 640MT PRO
SCHUNK TB 850-375 EXTENDED STROKE AIR CHUCK
ROTA CLASSIC-P 800-MM,A20 4-JAW INDEPENDENT CHUCK
PREPARATION FOR REAR MOUNTED MANUAL CHUCK(31.7" DIA. MAX.)
PREPARATION FOR FRONT MOUNT AIR CHUCK
SMW K6 STEADY REST PREPARATION ENG#35008 SINGLE/AUTO W/FLUSH
SMW STEADY REST K6-Z HEAD INSTALLED NOTE* DPT#3
EXTENDED TAILSTOCK (19") ENG#34199
MANUAL TOOL EYE FOR 34" CHUCK ENG#35008
ABSOLUTE POSITIONING SYSTEM
RE-THREADING FUNCTION
THREAD START POINT COMPENSATION
CHIP CONVEYOR 3000U (120") (SIDE HINGE TYPE) W/LBB
HIGH-POWER COOLANT (2.2KW) 213 PSI / 2.5 GPM
LONG BORING BAR HOLDER WITHOUT BAR 80MM ID FOR LBB STOCKER
LONG BORING BAR STOCKER(2-BAR) N/A FOR 2000U (80")
LONG BORING BAR HOLDER WITHOUT BAR 100MM ID FOR LBB STOCKER
INCLUDED TOOLING:
STANDARD TOOLING PACKAGE
1 PC O.D. TURNING HOLDER (FORWARD)
2 PCS O.D. TURNING HOLDER (REVERSE)
1 PC O.D. TURNING HOLDER TYPE II (REVERSE)
1 PC FACING TOOL HOLDER (FORWARD/REVERSE)
4 PCS BORING BAR HOLDER - 2-1/2" I.D.
1 PC DRILL SOCKET - MT#5 ID X 2-1/2" OD
2 PCS BORING BAR SOCKET - RING 2-1/2" ID
2 PCS BORING BAR SOCKET - 2" ID X 2-1/2" OD
2 PCS BORING BAR SOCKET - 1-1/2" ID X 2-1/2"
2 PCS BORING BAR SOCKET - 1-1/4" ID X 2-1/2"
1 PC V-TYPE MILL HOLDER (CAT 40)
2 PCS H-TYPE MILL HOLDER (CAT 40)
