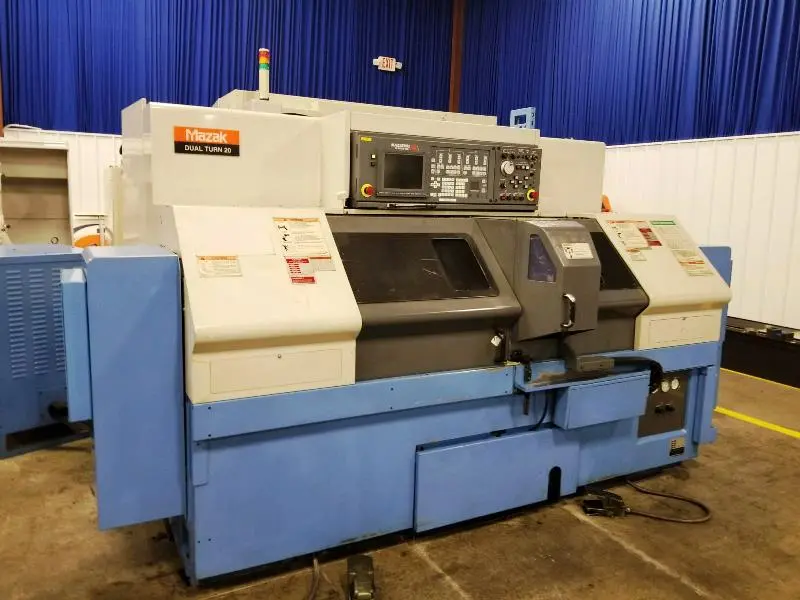

MAZAK DUAL TURN 20

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
DUAL TURN 20
Year:
1999
Stock #:
4982
Status:
For Sale
Serial #:
144075

Description

THE DUAL TURN 20 IS A TWIN SPINDLE/ TWIN TURRET LATHE WITH 8" HYDRAULIC CHUCK PACKAGE (L&R), AUTOMATIC WORKPIECE TRANSFER, 5000 RPM SPINDLE AND MAZATROL FUSION 640T.

Maximum Swing12.6"320.04 mm
Max Turning Diameter10"254 mm
Main Spindle Bore/Max Bar Capacity2.4/ 2.02.4/ 2.0
Tail Stock/Sub SpindleN/AN/A
Distance Between Spindles49.21"1,249.9 mm
X-Axis Travel (X1, X2, X3)9.06/ 9.069.06/ 9.06
Z-Axis Travel (Z1, Z2, Z3)19.69/ 19.6919.69/ 19.69
Main Spindle Bore Diameter2.4"60.96 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
(Multiplex) Standard Chuck Dia. Main Spindle (R)1010
(Multiplex) Standard Chuck Dia. Main Spindle (L)1010
ControlCNC (MAZATROL 640T FUSION)CNC (MAZATROL 640T FUSION)
Dimensions107" X 159.3" X 80.3"107" X 159.3" X 80.3"
Weight13,200 LBS13,200 LBS

SPECIFICATIONS:
MAX. SWING                           12.6"
STANDARD CUTTING DIAMETER            10"
MAX. DISTANCE BETWEEN SPINDLE FACES  49.21"
SPINDLE NOSE CONFIGURATION           A2 - 6
SPINDLE BORE                         2.4"
MAX. BAR WORK                        2"
SPINDLE SPEED                        35- 5000 RPM
NUMBER OF TOOL TURRETS               2
NUMBER OF TOOL POSITIONS PER TURRET  12
TURRET TYPE                          DRUM
X-AXIS TRAVEL
   TURRET # 1                        9.06"
   TURRET # 2                        9.06"
Z-AXIS TRAVEL
   TURRET # 1                        19.69"
   TURRET # 2                        19.69"
RAPID TRAVERSE RATE
    X-AXIS                           1200 IPM
    Z-AXIS                           1300 IPM
MAX CUTTING FEEDRATE ( X & Z AXIS )  197 IPM
MAIN SPINDLE MOTOR                   AC  20 HP
FLOOR SPACE REQUIREMENTS             107" X 159.3"
MACHINE HEIGHT                       80.3"
MACHINE WEIGHT                       13,200 LBS.

MAZATROL FUSION 640T
TOOL EYE (AUTOMATIC L&R)
AUTOMATIC CENTER PARTITION
AUTOMATIC WORKPIECE TRANSFER
SYNCHRONIZED Z AXIS
FRONT DOOR INTERLOCKS (L & R) WITH LOCK-SWITCH
AUTO CHUCK JAWS OPEN/CLOSE (L&R)
CHUCK OPEN/CLOSE CONFIRMATION (L&R)
HYDRAULIC PRESSURE INTERLOCK
8" DIA. HYDRAULIC NON THRU-HOLE CHUCK PACKAGES (L&R)
CHIP CONVEYOR
EXIT CONVEYOR
