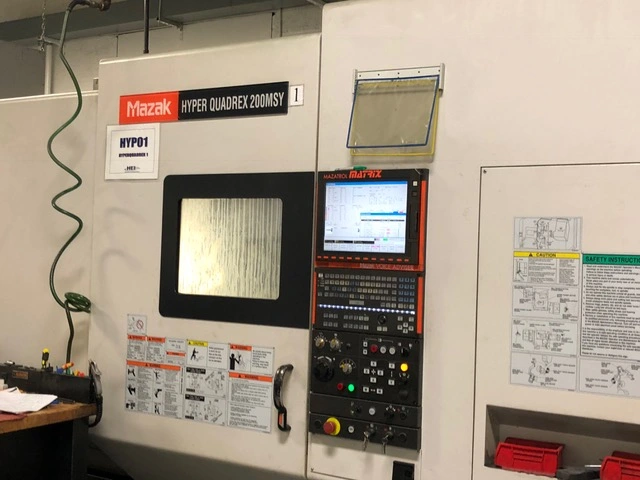

MAZAK HQR 200MSY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
HQR 200MSY
Year:
2010
Stock #:
5070
Status:
For Sale
Serial #:
219033

Description

THIS HQR 200MSY IS A TWIN SPINDLE, TWIN TURRET LATHE WITH MATRIX CONTROL, 8" BB CHUCK WITH 2.56", BAR CAPACITY, Y AXIS, 213 PSI COOLANT AND LNS BARFEEDER.

Maximum Swing14.56"369.82 mm
Max Turning Diameter13.4"340.36 mm
Main Spindle Bore/Max Bar Capacity2.99/ 2.562.99/ 2.56
Tail Stock/Sub SpindleSub SpindleSub Spindle
X-Axis Travel (X1, X2, X3)8.2/ 5.58.2/ 5.5
Z-Axis Travel (Z1, Z2, Z3)29.8/ 32.8129.8/ 32.81
Y-Axis Travel (Y1, Y2, Y3)4/ 2.754/ 2.75
Main Spindle Chuck Size8"203.2 mm
Main Spindle Bore Diameter3"76.2 mm
Main Spindle Maximum Bar Work2.56"65.024 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size2.992.99
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)3030
Main & Sub Spindle SynchronizationYesYes
Number of Turrets22
Turret Tool Positions 1, 21212
B Axis Rotary Tool Spindle Speed6,000 RPM6000 rpm
B-Axis Rotary Tool Spindle Horsepower7.5 hp
Bar FeedYesYes
Chip ConveyorYesYes
High Pressure Coolant System (PSI)213213
(HQR) Standard Chuck Dia. Main Spindle (L)8"203.2 mm
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)
Dimensions137.6" x 103"137.6" x 103"

SPECIFICATIONS:
MAX MACHINING DIAMETER    13.4"
X1 TRAVELS                8.2"
Y1 TRAVELS                4"
Z1 TRAVELS                29.8"
X2 TRAVELS                5.5"
Y2 TRAVELS                2.75"
Z2 TRAVELS                32.81"
TURRET (UPPER/LOWER)      12
SPINDLE (30 MIN. RATING)  5000 RPM (30HP)
2ND SPINDLE (30 MIN.)     5000 RPM (30HP)
BAR CAPACITY              2.56"
FLOOR SPACE               137.6" x 103"

MAZATROL MATRIX CONTROL
EIA/ISO
B CYLINDRICAL G 07 & POLAR COORDINATE
MILL SPINDLE SYNC TAP
I C MEMORY CARD
CARD BUSS IF
Y AXIS CONTROL UPPER & LOWER TURRETT
ABSOLUTE POSITIONING SYSTEM
COMPLETE COOLANT SYS
HIGH PRESSURE COOLANT 213 PSI WITH TEMPERATURE CONTROL
1ST SPINDLE BORE 76mm (3")
1ST SPINDLE MOTOR SPINDLE SPEED 5K RPM
WORKPIECE UNLOADER & CONVEYOR
CHIP CONVEYOR SIDE DISCHARGE
8" CHUCK BB-08 FOR 1ST SPINDLE DIAMETER 65
SIGNAL TOWER END YELLOW
LNS QUICK LOAD 6 SERVO 6 FOOT SHORT MAGAZINE BAR FEED
