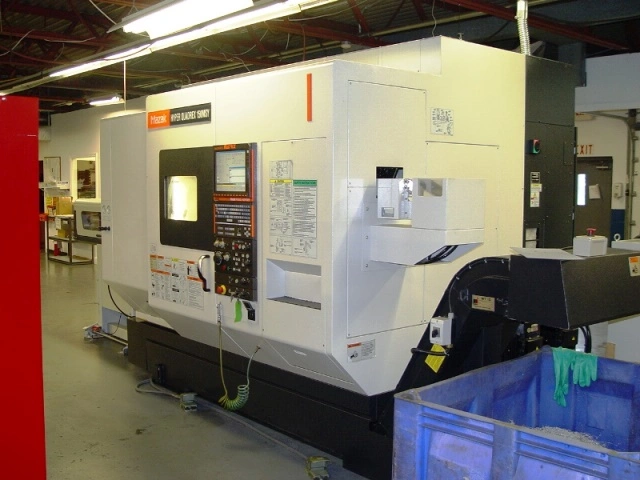

MAZAK HQR 150MSY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
HQR 150MSY
Year:
2012
Stock #:
4441
Status:
For Sale

Description

MAZAK 2012 HQR 150MSY Multi-Tasking turning center features a highly productive twin-spindle, twin-turret configuration for unequaled part processing opportunities and high-volume throughput. It machines complex parts complete – from raw material to finished part – in a single setup. Mazak Other CNC Mazak Metalworking Lathes Machining Centers & Milling Machines

Maximum Swing12.6"320.04 mm
Max Turning Diameter11.626"295.29 mm
Main Spindle Bore/Max Bar Capacity2.99/ 2.62.99/ 2.6
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Cutting Length24.375"619.12 mm
Distance Between Spindles24.375"619.12 mm
X-Axis Travel (X1, X2, X3)6.875"/4.3125"6.875"/4.3125"
Z-Axis Travel (Z1, Z2, Z3)20.375"/22.75"20.375"/22.75"
Y-Axis Travel (Y1, Y2, Y3)4" [±2"]/2.75" [+0.75" ~ –2"4" [±2"]/2.75" [+0.75" ~ –2"
C-Axis Indexing (1, 2)0.0001° increments0.0001° increments
W-Axis Travel Sub Spindle24.5 in
Main Spindle Chuck Size6"152.4 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.99"75.946 mm
Main Spindle Maximum Bar Work2.56"65.024 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)20 HP/15 HP20 HP/15 HP
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size2.42.4
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)15 HP/10 HP15 HP/10 HP
Number of Turrets22
Turret Tool Positions 1, 21212
B Axis Rotary Tool Spindle Speed6,000 RPM6000 rpm
B-Axis Rotary Tool Spindle Horsepower0 hp
Bar FeedYesYes
Chip ConveyorYesYes
Chip ConveyorSideSide
Tool Eye Measurement Upper TurretYesYes
Tool Eye Measurement Lower TurretYesYes
High Pressure Coolant System (PSI)213213
Workpiece Unloader & ConveyorYesYes
Multi Tap TransformerYesYes
(HQR) Max. Swing Over Upper Turret11.625 in
(HQR) Max. Swing Over Lower Turret6.77 in
(HQR) Standard Chuck Dia. Main Spindle (L)6"152.4 mm
(HQR) Standard Chuck Dia. Second Spindle (R)6"152.4 mm
ControlCNC (MAZATROL MATRIX CONTROL)CNC (MAZATROL MATRIX CONTROL)
Dimensions112.68" × 90.16"x 95"112.68" × 90.16"x 95"
Weight(20062 lbs(20062 lbs

SPECIFICATIONS:
CAPACITY MAXIMUM SWING              12.60"
MAXIMUM MACHINING DIAMETER          11.625"
MAXIMUM BAR WORK CAPACITY           2.6"
MAXIMUM MACHINING LENGTH            24.375"
MAIN SPINDLE CHUCK SIZE             6"
MAXIMUM SPEED                       6,000 RPM
MOTOR OUTPUT (30 MINUTE RATING)     20.0 HP / 15 KW
SECOND SPINDLE CHUCK SIZE           6"
MAXIMUM SPEED                       6,000 RPM
MOTOR OUTPUT (30 MINUTE RATING)     15 HP / 11 KW
TURRET (UPPER) NUMBER OF TOOLS      12
MAXIMUM SPEED                       6,000 RPM
MOTOR OUTPUT (10 MINUTE RATING)     7.5 HP / 6 KW
TURRET (LOWER) NUMBER OF TOOLS      12
FEED AXES TRAVEL (X AXIS)           6.88" / 175 MM
TRAVEL (X2 AXIS)                    4.31"
TRAVEL (Y AXIS)                     4.00"
TRAVEL (Z AXIS)                     20.38"
TRAVEL (Z2 AXIS)                    22.75"

MAZATROL MATRIX CNC CONTROL
SUB SPINDLE
UPPER AND LOWER TURRETS
213 PSI HIGH PRESSURE COOLANT WITH TEMPERATURE CONTROL
OIL MATIC COOLER
LNS BAR FEED MODEL80-S2
WORK PIECE UNLOADER AND CONVEYOR
INCLUDES (2) 6" CHUCKS AND ROYAL COLLET CHUCKS (A6)
MAYFRAN CHIP CONVEYOR - SIDE DISPOSAL
SEVERAL LIVE HOLDERS
ALL AVAILABLE MANUALS
