MAZAK INTEGREX 100 IIIST
CNC LATHES MULTI AXIS
%205153.jpg)

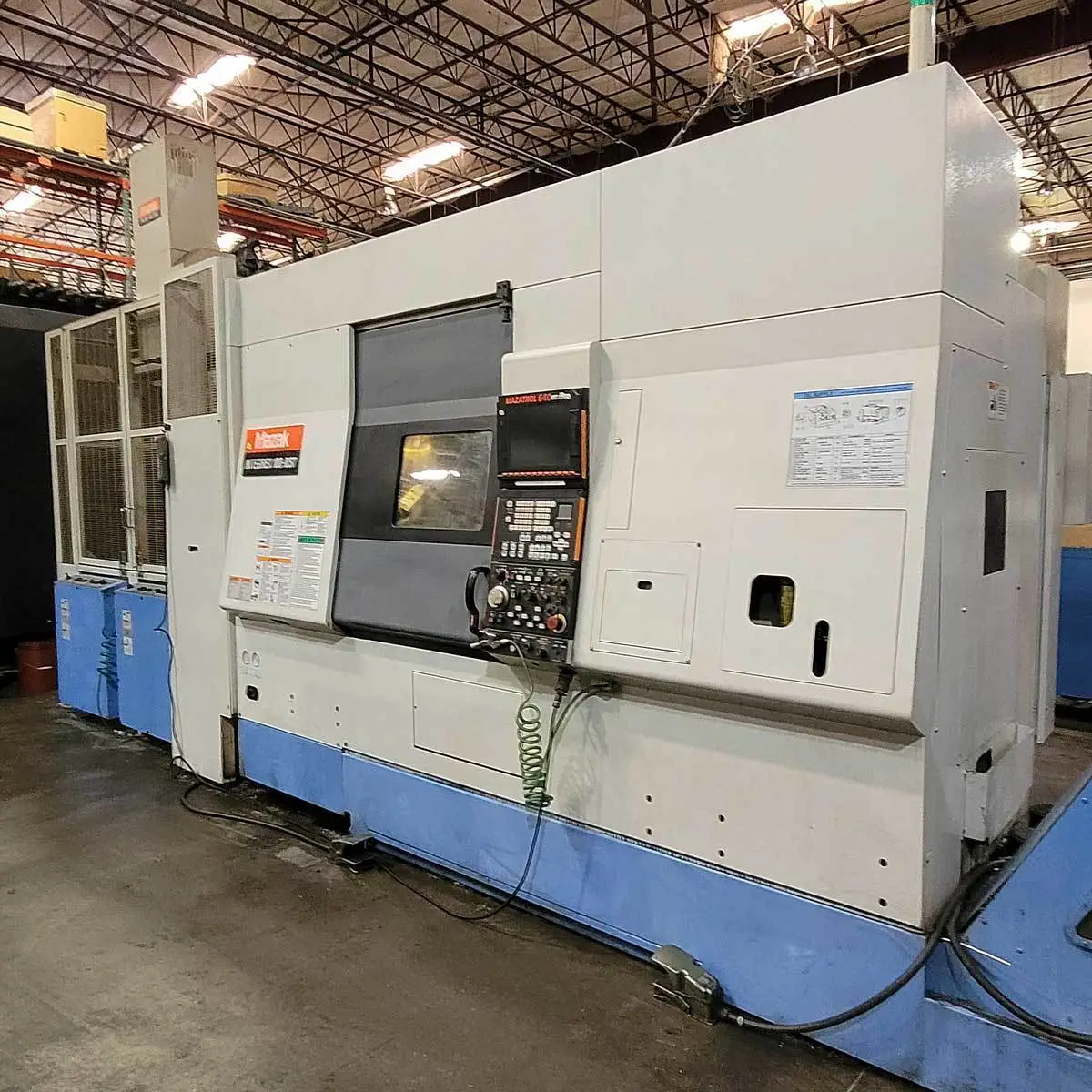

THIS INTEGREX 100ST COMES WITH A GANTRY LOADER, FUSION 640MT PRO CONTROL, 213 PSI COOLANT THRU AND 40 POSITION ATC.
| Maximum Swing | 21.45" |
| Max Turning Diameter | 21.45" |
| Main Spindle Bore/Max Bar Capacity | 2.4/ 2.0 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 13.86" |
| Maximum Cutting Length | 29.65" |
| Distance Between Spindles | 28.9" |
| X-Axis Travel (X1, X2, X3) | 16.14, 8.66 |
| Z-Axis Travel (Z1, Z2, Z3) | 31.69, 30.7 |
| C-Axis Indexing (1, 2) | .0001, .001 |
| W-Axis Travel Sub Spindle | 31.3 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 10/ 15 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.4 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10/15 |
| ATC Magazine Capacity | 40 |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 9 |
| Turret Rotary Tool Spindle Speed 1, 2 | 12000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| B-Axis Travel | 225 DEG |
| B-Axis Head Indexing | 0.0001 deg |
| B Axis Rotary Tool Spindle Speed | 12000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 7.5 hp |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Gantry System | Yes |
| Control | CNC (MAZATROL FUSION 640 MT PRO) |
EQUIPPED WITH:
AUTO POWER OFF(BREAKER TRIP)
SIGNAL TOWER (3 COLORS LIGHTS)
TURRET AIR BLAST
(FLOOD-COOLANT NOZZLE)
WORKPIECE CLEANING COOLANT(1ST
SPINDLE)
GL75F/ROTARY TYPE
1/D3-HAND/JAW-A - 5.9" diam/ 16.5# x 2
ADDITIONAL COST FOR (2) 20P
ROTARY CONV. TYPE I ENG. 14936
FA GANTRY INTERFACE
SIDE EXIT CONSEP 2000 CHIP
CONVEYOR W/72" DISCHARGE
HEIGHT ENG# 16993/37200005
CAPTO STANDARD TOOLING PACKAGE
FOR INT200-400'S W/CAPTO-TOOL
TOOL ID (EUCHINER) SYSTEM
RECOGNIZED SIDE OF TOOL AND
READER HEAD IN MAGAZINE
AUTO PECKING CYCLE WITH LOAD DETECTION
40 CAPTO-TOOL MAGAZINE
(REQUIRED TOOL)
15KG THRU /FLOOD COOLANT
(UPPER TURRET)
2ND SPINDLE C-AXIS 0.0001 DEGREE INCR.
