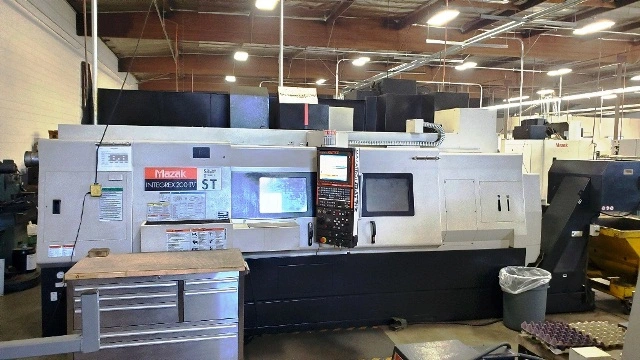

MAZAK INTEGREX 200IV ST/ 60

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX 200IV ST/ 60
Year:
2009
Stock #:
5661
Status:
For Sale
Serial #:
213207

Description

THIS INTEGREX 200ST HAS A MATRIX CONTROL, 40 STATION ATC & 9 POSITION LOWER TURRET, 60" CENTERS, 2 --8" CHUCKS, PARTS CATCHER, 213 PSI COOLANT THRU AND CAPTO TOOLING.

Maximum Swing26.5"673.1 mm
Max Turning Diameter26"660.4 mm
Main Spindle Bore/Max Bar Capacity2.99/ 2.52.99/ 2.5
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide26.5"673.1 mm
Maximum Cutting Length61"1,549.4 mm
X-Axis Travel (X1, X2, X3)22.8/ 5.9122.8/ 5.91
Z-Axis Travel (Z1, Z2, Z3)60.82/ 58.6660.82/ 58.66
Y-Axis Travel (Y1, Y2, Y3)+/- 3.15"+/- 3.15"
C-Axis Indexing (1, 2).0001/ .0001.0001/ .0001
W-Axis Travel Sub Spindle60.24 in
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.99"75.946 mm
Main Spindle Maximum Bar Work2.5"63.5 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)30/ 2530/ 25
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size2.992.99
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed5,000 RPM5,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)25/2025/20
ATC Magazine Capacity4040
Number of Turrets11
Turret Tool Positions 1, 299
Turret Rotary Tool Spindle Speed 1, 260006000
Turret Rotary Tool Horse Power 1, 255
B-Axis Travel225 DEG225 DEG
B-Axis Head Indexing5°5 deg
B Axis Rotary Tool Spindle Speed12,000 RPM12000 rpm
B-Axis Rotary Tool Spindle Horsepower25 hp
Parts CatcherYesYes
Chip ConveyorYesYes
Milling Spindle Synchronous TappingYesYes
High Pressure Coolant System (PSI)213213
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)

SPECIFICATIONS:
MAX. SWING 26.5"
MAX MACHINING DIA. UPPER / LOWER TRT 26" / 10.6"
MAX. SWING OVER LOWER TURRET 16.5"
MAXIMUM CUTTING LENGTH 61"
SPINDLE BORE 2.99"
SPINDLE NOSE A2-8
MAX BAR CAPACITY 2.50"
SPINDLE SPEEDS 5000 RPM
AXIS TRAVEL C - AXIS .0001 N/C CONTOUR
X - AXIS 22.8"
Z - AXIS 60.82"
X2 - AXIS (LOWER TURRET) 5.91"
Z2 - AXIS (LOWER TURRET) 58.66"
Y - AXIS +/- 3.15"
B - AXIS 225 DEGREES
5 DEGREE CLAMPING
W - AXIS (2nd SPINDLE) 60.24"
SECOND SPINDLE RPM 5000 RPM
SPINDLE NOSE A2-6
SPINDLE BORE (SECOND SPINDLE) 3"
SECOND SPINDLE MIN. INDEXING .0001 N/C CONTOUR
SECOND SPINDLE TRAVEL 62.3"
RAPID TRAVERSE RATES C - AXIS 555 RPM
X - AXIS 1496 IPM
Z - AXIS 1496 IPM
Y - AXIS 1023 IPM
B - AXIS 555 RPM
W - AXIS 1181 IPM

MIN. SPINDLE INDEXING (MAIN SPINDLE) .001 DEGREE
TOOL MAGAZINE CAPACITY 40 ATC CAPTO
LOWER TURRET POSITIONS 9 TOOL DRUM
LOWER TURRET MILLING OPTION (SPEEDS) 6,000 RPM
LOWER TURRET MILLING MOTOR HP 5 HP AC
MAX. TOOL DIA. ADJ. 3.54"/4.92"
MAX. TOOL LENGTH 11.81"
ROTARY TOOLS SPINDLE NOSE KM STYLE
ROTARY TOOL SPINDLE SPEED 12,000 RPM
ROTARY TOOL MOTOR 25 HP
MAXIMUM TOOL WEIGHT 22 LBS.
Z - AXIS THRUST 3124 FT/LBS.
MAIN MOTOR / SECOND SPINDLE 30 HP/AC 25 HP

MAZATROL MATRIX CNC CONVERSATIONAL CONTROL
15KG/213PSI THRU/FLOOD COOLANT
(UPPER TURRET)    71 PSI LOWER
2ND SPINDLE C-AXIS 0.0001 DEGREE INCR.
MILL TURNING (MAZATROL)
HOBBING FUNCTION W/O TOOLING
8" THRU-HOLE CHUCK BB08
(1ST SPD.) THRU-HOLE CYL.S1875
8" THRU-HOLE CHUCK B-208A615
(2ND SPNDL) NON-THRU CYL.Y1225
40 CAPTO-TOOL MAGAZINE
(Factory Install Only)
OVERLOAD DETECTION SYSTEM
CONSEP CHIP-CONVEYOR SIDE 60" 1500U
EIA/ISO FUNCTION
AUTOMATIC PARTS CATCHER W/EJEC
(2.5"DIAMETER X 4.7"L X 5.5LB)
HIGH/LOW CHUCK PRESS.SYS
(FIRST SPINDLE)
PREPARATION FOR 750K MIST
COLLECTOR W/POWER & OD123 DUCT
UP-TURRET AIR BLAST
(FLOOD-CLNT. NOZZLE)
AUTO PECKING W/LOAD
DETECTION(UP-TURRET)
ADDITIONAL M CODE ONE SET (2
M-CODES)
C1C2 SYNCHRONOUS FUNCTION
F)EIA/ISO FUNCTION
SIMULTANEOUS 5 AXES
F)TOOL TIP POINT CONTROL
/SIMULT. 5 AXES
F)TOOL RADIUS COMPENSATION /
5-AXIS
TAIL CENTER ATTACHMENT (LOWER
TURRET)
PREPARATION FOR CAPTO MULTI &
FLASH SYSTEM
