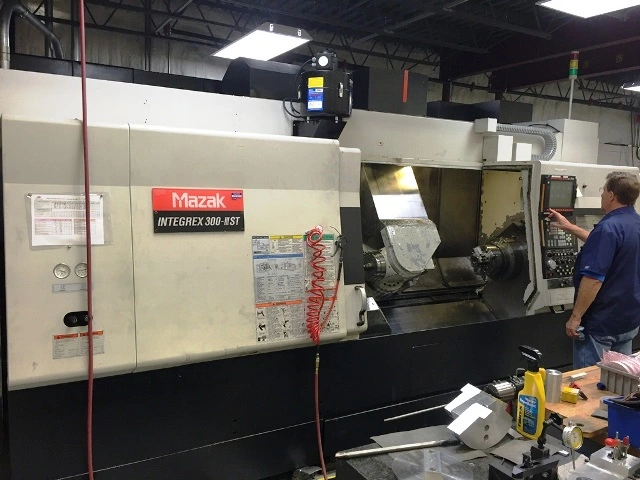

THIS INTEGREX 300ST HAS FUSION 640MT CONTROL, 40 POSITION ATC & 9 POSITION LOWER TURRET, 2 - 10" CHUCKS AND TOOLING.
SPECIFICATIONS:
MAXIMUM SWING 33.5"
MAXIMUM SWING USING Y-AXIS 26"-33.5"
MAXIMUM SWING OVER CROSS SLIDE 33.5"
MAXIMUM SWING OVER LOWER TURRET 16.5"
NOTE: WITHOUT BORING BAR HOLDER ON TURRET.
MAXIMUM CUTTING DIAMETER: CHUCKING 30" (UPPER)
MAXIMUM CUTTING DIAMETER: CHUCKING 16.5" (LOWER)
MAXIMUM CUTTING LENGTH 60"
MAXIMUM DISTANCE BET CHUCK FACES 60"
MAIN SPINDLE SPECIFICATIONS (L):
SPINDLE NOSE A2-8
SPINDLE BORE 3.46"
MAXIMUM BAR WORK 3.0" DIA.
SPINDLE SPEED 4,000 RPM
SPINDLE INDEX (PROGRAMMABLE) 0.0001 DEG.
SPINDLE HORSEPOWER (CONT./30 MINS.) 30/35 HP (AC)
SPINDLE TORQUE 442.5 FT-LBS.
SECOND SPINDLE SPECIFICATIONS (R)
SPINDLE NOSE A2-8
SPINDLE BORE 3.46"
MAXIMUM BAR WORK (NON-THRU) 3.0" DIA.
SPINDLE SPEED 4,000 RPM
SPINDLE INDEX (PROGRAMMABLE) 0.0001 DEG. (C-AXIS OPTIONAL)
SPINDLE HORSEPOWER (CONT./30 MIN.) 30/35 HP (AC)
SPINDLE TORQUE 368.8 FT-LBS.
ATC AND TOOLING SPECIFICATIONS:
TYPE OF TURRET 1 POSITION W/ATC
TOOL SHANK HEIGHT 1"
TOOL SIZE (BORING BAR MAX. DIA.) 1.5"
MAGAZINE CAPACITY 40 TOOLS (KM)
TOOL SELECTION METHOD RANDOM
TOOL TO TOOL ATC TIME 1.3 SEC.
MAX. TOOL DIA. W/ALL POCKETS FULL 3.54"
MAX. TOOL DIA. W/ADJ POCKETS EMPTY 4.92"
MAX. TOOL LENGTH (FROM GAGE-LINE) 15.75"
MAXIMUM TOOL WEIGHT 22 LBS.
ROTARY TOOL SPINDLE SPEED 12,000 RPM
ROTARY TOOL SPINDLE HP (20%ED) 24.8 HP (AC)
ROTARY TOOL TORQUE (20%ED) 88.5 FT-LBS.
LOWER TURRET AND TOOLING SPECIFICATIONS:
TYPE OF TURRET. DRUM
TOOL SHANK HEIGHT 1.0" X 1.0" X 5"L
TOOL SIZE (BORING BAR MAXIMUM DIAM) 1.25"
TOTAL NUMBER OF TOOLS 9
TOOL SELECTION METHOD BI-DIRECTIONAL
TOOL INDEX TIME (1 STEP) 0.14 SEC.
Y-AXIS TRAVELS +/- 4.53"
X-AXIS TRAVELS 24.8"
Z-AXIS TRAVELS 62.4"
X2 AXIS LOWER 9.06"
Z2 AXIS LOWER 60.2"
SECOND HEADSTOCK W-AXIS 60.24"
Y-AXIS RAPID RATES 1023 IPM
X/X2 AXIS RAPID RATES 1496 IPM
Z/Z2 AXIS RAPID RATES 1496 IPM
SECOND HEADSTOCK W-AXIS 1181 IPM
C-AXIS 400 RPM
B-AXIS 10 RPM
FLOOR SPACE (WXL) 201" X 91.8" X 110.2"
MACHINE WEIGHT 29,983 LBS.
MAZATROL FUSION 640MT PRO CNC
2-10" CHCUKS
CHUCK AIR BLAST (1ST SPINDLE)
OVATION EZ COMP I/F SYS
TOOL EYE
THRU FLOOD COOLANT (UPPER TURRET)
AUTO CHUCK JAWS OPEN/CLOSE CONFIRMATION (1&2 SPINDLE)
CHUCK OPEN/CLOSE CONFIRM(1&2 SPINDLE)
OPERATOR DOOR INTERLOCK W/LOCK SWITCH
HYD PRESSURE INTERLOCK
MULTI TAP TRANSFORMER
CHIP CONVEYOR SIDE 60"
EIA HELICAL TAP CY
EIA 1/10000" DISP
ENH.Y-AXIS(FACE2)
ENH.Y-AXIS(FACE1)
B AXIS CONTROL
EIA COORD.ROTATION
EIA HELICAL INTER
POLAR COORDINATES
WORK COORDINATES
USER M.INTERRUOT
600 MACRO VARIABLES
USER MACRO
40 ATC
DIRECT DWG SIZE I
SYNCHRO MILL TAPP
Y-AXIS CONTROL
EIA/ISO
BACKGROUND PATH C
ALL AVAILABLE TOOLING (CALL FOR DETAILED LIST)
ALL AVAILABLE MANUALS
