MAZAK INTEGREX 300 IVS
Have one to sell?
ConditionUsed
1 available

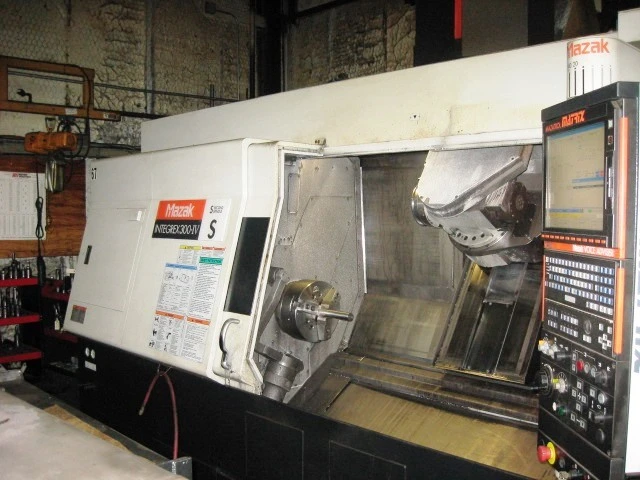

THIS INTEGREX 300 IVS HAS A MATRIX CONTROL, 60" CENTERS, 2ND SPINDLE C AXIS AND 40 STATION CAPTO ATC.
SPECIFICATIONS: (SUBJECT TO CUSTOMER VERIFICATION)
MAX. SWING 30"
MAX MACHINING DIA 30"
MAXIMUM CUTTING LENGTH 60.2"
SPINDLE BORE 3.46"
SPINDLE NOSE 2-8
MAX BAR CAPACITY 3.0"
SPINDLE SPEEDS 40-4000 RPM
MAIN SPINDLE HORSEPOWER 40 HP AC
C - AXIS .0001 INCREMENTS
X - AXIS 24.83"
Z - AXIS 62.41"
Y - AXIS +/- 4.13"
B - AXIS (NA CONTOURING) +- 120 DEGREE
B-AXIS / COUPLING .001 / 5 DEGREE
SECOND SPINDLE RPM 4000
SECOND SPINDLE INDEXING .0001 INCREMENTS
SECOND SPINDLE HORSEPOWER 35 HP AC
SECOND SPINDLE TRAVEL 60.24"
RAPID TRAVERSE RATES C - AXIS 555 RPM
X - AXIS 1496 IPM
Z - AXIS 1496 IPM
Y - AXIS 1024 IPM
B - AXIS 400 RPM
MIN. SPINDLE INDEXING (MAIN SPINDLE) .0001
MIN. SPINDLE INDEXING (SECOND SPINDLE) .0001
TOOL MAGAZINE CAPACITY 40 ATC CAPTO
MAX. TOOL DIA. ADJ. 3.54"/4.72"
MAX. TOOL LENGTH 11.8"
ROTARY TOOL SPINDLE SPEED 12,000 RPM
ROTARY TOOL MOTOR 25 HP
MAXIMUM TOOL WEIGHT 22 LBS.
Z - AXIS THRUST 3124 FT/LBS
MAZATROL MATRIX 15" COLOR CNC CONVERSATIONAL CONTROL
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
WORK MEASUREMENT SYSTEM TOOL EYE (AUTOMATIC)
2ND SPINDLE C AXIS
C1-C2 SYNC FUNCTION
RETHREAD FUNCTION
60” BED LENGTH
CHIP CONVEYOR SIDE DISPOSAL (60”)
ALL AVAILABLE TOOLING AND MANUALS
THIS INTEGREX 300 IVS HAS A MATRIX CONTROL, 60" CENTERS, 2ND SPINDLE C AXIS AND 40 STATION CAPTO ATC.
Imperial
| Maximum Swing | 30" |
| Max Turning Diameter | 30" |
| Main Spindle Bore/Max Bar Capacity | 3.5/ 3.0 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 30" |
| Maximum Cutting Length | 60.2" |
| X-Axis Travel (X1, X2, X3) | 24.83 |
| Z-Axis Travel (Z1, Z2, Z3) | 62.41 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 4.13" |
| C-Axis Indexing (1, 2) | .0001 |
| W-Axis Travel Sub Spindle | 60.24 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.58" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.0 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 35 |
| ATC Magazine Capacity | 40 |
| B-Axis Travel | +/- 120 DEG |
| B-Axis Head Indexing | 0.001 deg |
| B Axis Rotary Tool Spindle Speed | 12000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 25 hp |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Control | CNC (MAZATROL MATRIX) |
SPECIFICATIONS: (SUBJECT TO CUSTOMER VERIFICATION)
MAX. SWING 30"
MAX MACHINING DIA 30"
MAXIMUM CUTTING LENGTH 60.2"
SPINDLE BORE 3.46"
SPINDLE NOSE 2-8
MAX BAR CAPACITY 3.0"
SPINDLE SPEEDS 40-4000 RPM
MAIN SPINDLE HORSEPOWER 40 HP AC
C - AXIS .0001 INCREMENTS
X - AXIS 24.83"
Z - AXIS 62.41"
Y - AXIS +/- 4.13"
B - AXIS (NA CONTOURING) +- 120 DEGREE
B-AXIS / COUPLING .001 / 5 DEGREE
SECOND SPINDLE RPM 4000
SECOND SPINDLE INDEXING .0001 INCREMENTS
SECOND SPINDLE HORSEPOWER 35 HP AC
SECOND SPINDLE TRAVEL 60.24"
RAPID TRAVERSE RATES C - AXIS 555 RPM
X - AXIS 1496 IPM
Z - AXIS 1496 IPM
Y - AXIS 1024 IPM
B - AXIS 400 RPM
MIN. SPINDLE INDEXING (MAIN SPINDLE) .0001
MIN. SPINDLE INDEXING (SECOND SPINDLE) .0001
TOOL MAGAZINE CAPACITY 40 ATC CAPTO
MAX. TOOL DIA. ADJ. 3.54"/4.72"
MAX. TOOL LENGTH 11.8"
ROTARY TOOL SPINDLE SPEED 12,000 RPM
ROTARY TOOL MOTOR 25 HP
MAXIMUM TOOL WEIGHT 22 LBS.
Z - AXIS THRUST 3124 FT/LBS
MAZATROL MATRIX 15" COLOR CNC CONVERSATIONAL CONTROL
WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
WORK MEASUREMENT SYSTEM TOOL EYE (AUTOMATIC)
2ND SPINDLE C AXIS
C1-C2 SYNC FUNCTION
RETHREAD FUNCTION
60” BED LENGTH
CHIP CONVEYOR SIDE DISPOSAL (60”)
ALL AVAILABLE TOOLING AND MANUALS
