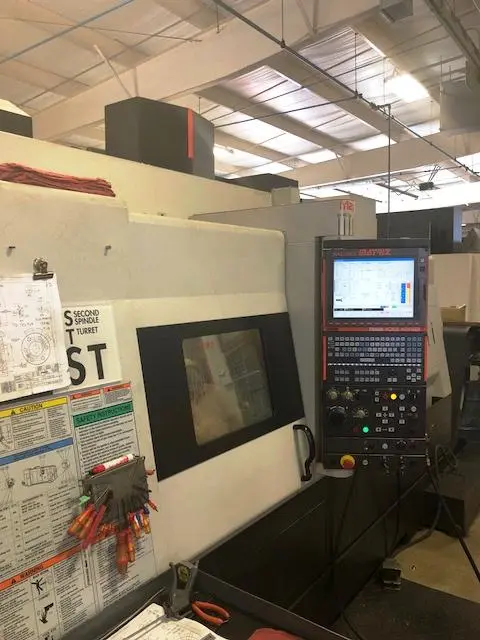

MAZAK INTEGREX 300 IVST

SPECIFICATIONS:
MAXIMUM SWING                       33.5"
MAXIMUM SWING USING Y-AXIS          26"-33.5"
MAXIMUM SWING OVER CROSS SLIDE      33.5"
MAXIMUM SWING OVER LOWER TURRET     16.5"
NOTE: WITHOUT BORING BAR HOLDER ON TURRET.
MAXIMUM CUTTING DIAMETER: CHUCKING  30" (UPPER)
MAXIMUM CUTTING DIAMETER: CHUCKING  16.5" (LOWER)
MAXIMUM CUTTING LENGTH              60"
MAXIMUM DISTANCE BET CHUCK FACES    60"

MAIN SPINDLE SPECIFICATIONS (L):
SPINDLE NOSE                        A2-8
SPINDLE BORE                        3.46"
MAXIMUM BAR WORK                    3.0" DIA.
SPINDLE SPEED                       4,000 RPM
SPINDLE INDEX (PROGRAMMABLE)        0.0001 DEG.
SPINDLE HORSEPOWER (CONT./30 MINS.) 30/40 HP (AC)
SPINDLE TORQUE                      534 FT-LBS.

SECOND SPINDLE SPECIFICATIONS (R)
SPINDLE NOSE                        A2-8
SPINDLE BORE                        3.46"
SPINDLE SPEED                       4,000 RPM
SPINDLE INDEX (PROGRAMMABLE)        (0.0001 DEG. C-AXIS OPTIONAL)
SPINDLE HORSEPOWER (CONT./30 MIN.)  30/35 HP (AC)
SPINDLE TORQUE                      368.8 FT-LBS.

UPPER TURRET AND TOOLING SPECIFICATIONS:
TYPE OF TURRET                      1 POSITION W/ATC
TOOL SHANK HEIGHT                   1.0"
TOOL SIZE (BORING BAR MAX. DIA.)    1.5"
MAGAZINE CAPACITY                   40 TOOLS
TOOL SELECTION METHOD               RANDOM
TOOL TO TOOL ATC TIME               1.3 SEC.
MAX. TOOL DIA. W/ALL POCKETS FULL   3.54"
MAX. TOOL DIA. W/ADJ POCKETS EMPTY  4.92"
MAX. TOOL LENGTH (FROM GAGE-LINE)   15.75"
MAXIMUM TOOL WEIGHT                 22 LBS.
ATC TOOL SHANK                      MAZAK KM63
ROTARY TOOL SPINDLE SPEED           12,000 RPM
ROTARY TOOL SPINDLE HP (20%ED)      25 HP (AC)
ROTARY TOOL TORQUE (20%ED)          88.5 FT-LBS.
MAXIMUM FACE MILL                   4"
MAXIMUM END MILL                    1.25"
MAXIMUM DRILL                       1.25"
MAXIMUM TAP                         1-8 UNC

LOWER TURRET AND TOOLING SPECIFICATIONS:
TYPE OF TURRET                      DRUM
TOOL SHANK HEIGHT                   1.0" X 1.0" X 5"L
TOOL SIZE (BORING BAR MAX DIAM)     1.25"
TOTAL NUMBER OF TOOLS               9
TOOL SELECTION METHOD               BI-DIRECTIONAL
TOOL INDEX TIME (1 STEP)            0.14 SEC.

LOWER TURRET WITH MILLING OPTION
ROTARY TOOL SPINDLE SPEED           4,500RPM
ROTARY TOOL SPINDLE HP (10% ED)     5 H.P. (A.C.)
ROTARY TOOL TORQUE FOR 4,500 RPM    15 FT-LBS
ROTARY TOOL TORQUE FOR 6,000 RPM    11 FT-LBS
MAXIMUM DRILL 4,500/6,000 RPM       14/12 MM
MAXIMUM TAP 4,500/6,000 RPM         M12/M10

AXIS TRAVELS:
B-AXIS                              225 DEGREES
                     (0.0001 DEGREE INCREMENTS)
Y-AXIS                              +/- 4.53"
X-AXIS                              24.8"
Z-AXIS                              62.41"
X2 AXIS LOWER                       9.06"
Z2 AXIS LOWER                       60.24"
SECOND HEADSTOCK W-AXIS             60.24"

AXIS RAPID RATES:
Y-AXIS                              1024 IPM
X/X2 AXIS                           1496 IPM
Z/Z2 AXIS                           1496 IPM
SECOND HEADSTOCK W-AXIS             1181 IPM
C-AXIS                              555 RPM
FLOOR SPACE (WXL)                   201.2" X 97.6"
MACHINE HEIGHT                      114.6"
TOTAL POWER REQUIRED (MACHINE ONLY) 90.7 KVA
 NOTE: ACTUAL MACHINE MAIN TRANSFORMER
 KVA RATING WILL BE GREATER.
AIR REQUIREMENTS                    72.5 PSI/24.7 CFM
MACHINE WEIGHT                      29,980 LBS.
