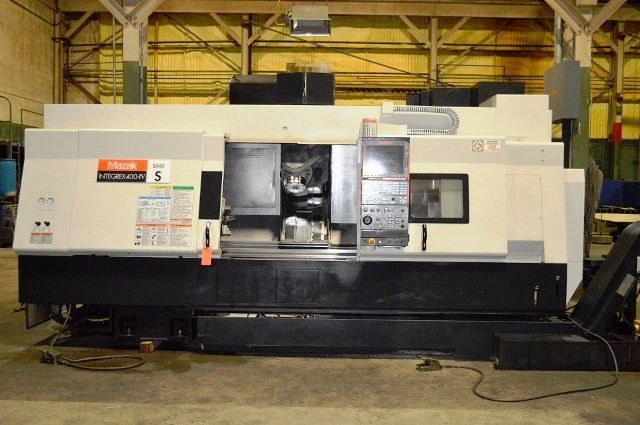

MAZAK INTEGREX 400 IVS.**MACHINE IS SOLD**

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX 400 IVS
Year:
2007
Stock #:
5138
Status:
For Sale

Description

THIS INTEGREX 400S HAS A MATRIX CONTROL, 60" CENTERS, 12" CHUCK WITH 4" BAR CAP ON MAIN & 10" CHUCK ON SUB, 40 STATION ATC, AND RENISHAW PROBE

Maximum Swing30"762 mm
Max Turning Diameter30"762 mm
Main Spindle Bore/Max Bar Capacity4.41/ 4.024.41/ 4.02
Tail Stock/Sub SpindleSub SpindleSub Spindle
Distance Between Centers60"1,524 mm
X-Axis Travel (X1, X2, X3)24.824.8
Z-Axis Travel (Z1, Z2, Z3)6262
Y-Axis Travel (Y1, Y2, Y3)YESYES
C-Axis Indexing (1, 2)YES, YESYES, YES
Main Spindle Chuck Size12"304.8 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter4.4"111.76 mm
Main Spindle Maximum Bar Work4"101.6 mm
Main Spindle Speed3,300 RPM3,300 RPM
Main Spindle Horsepower (CONT. /30 MINS)4040
Sub Spindle/2nd Spindle Chuck Size1010
Sub Spindle/2nd Spindle Bore Size3.463.46
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed4,000 RPM4,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)34.634.6
Main & Sub Spindle SynchronizationYesYes
ATC Magazine Capacity4040
B Axis Rotary Tool Spindle Speed12,000 RPM12000 rpm
B-Axis Rotary Tool Spindle Horsepower24.6 hp
Chip ConveyorYesYes
Milling Spindle Synchronous TappingYesYes
Tool Eye Automatic Front SpindleYesYes
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)
Dimensions201" X 92" X 110"201" X 92" X 110"
Weight28,16028,160

MAZAK INTEGREX 400IV-S
NEW 2007

SPECIFICATIONS
CHUCK SIZE              12"
SWING                   30"
TURNING DIAMETER        30"
CENTER DISTANCE         60"
BAR CAPACITY            4.02"
SPINDLE BORE            4.41"
X AXIS TRAVEL           24.8"
Z AXIS TRAVEL           62"
Y AXIS (YES / NO)       YES
X AXIS RAPID FEEDRATE   1496 IPM
Z AXIS RAPID FEEDRATE   1496 IPM
SPINDLE SPEED (RPM)     3300
MAIN MOTOR              40 HP
SUB SPINDLE CHUCK SIZE  10"
SUB SPINDLE SPEED (RPM) 4000
SUB SPINDLE MOTOR       34.6 HP (30 MIN)
LIVE MILLING (YES / NO) YES
LIVE MILLING SPEED      12000 RPM
LIVE MILLING MOTOR      24.6 HP
TURRET CAPACITY         40 ATC
DIMENSIONS              201" X 92" X 110" H
WEIGHT                  28,160 POUNDS

MAZATROL MATRIX
40 STATION TOOL CHANGER
KM63 TOOLING
C AXIS ON MAIN AND SUB SPINDLE
Y AXIS
KITAGAWA B212 12" CHUCK
KITAGAWA B210 10" CHUCK
TOOL EYE
RENISHAW PROBING WITH OMP 60 PROBE
HIGH PRESSURE COOLANT
CHIP CONVEYOR
SIMULTANEOUS 5 AXIS MACHINING
HOBBING
SYNCHRO TAPPING
SPIRAL MACHINING
THREAD MILLING
MISC TOOL HOLDERS (8) AND MANUALS
