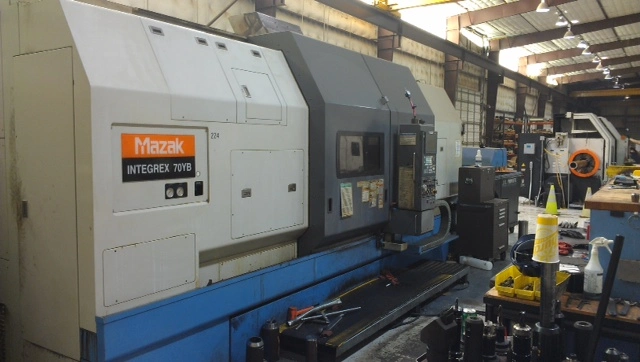

MAZAK INTEGREX 70 YB CNC TURNING & MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
THIS INTEGREX 70YB HAS A FUSION 640 CONTROL, 80" CENTERS, 60HP MOTOR, PROGRAMMABLE TAILSTOCK, LONG BORING BAR STOCKER AND 28" 4-JAW CHUCK.
MAZAK INTEGREX 70YB CNC TURNING & MACHINING CENTER
NEW 2001
SPECIFICATIONS:
MAXIMUM SWING 36.02"
MAXIMUM SWING OVER CARRIAGE 16.5 " - 30.3"
NOTE: DEPENDS UPON WORKPIECE LENGTH, TOOL
MAGAZINE TYPE AND Y AXIS POSITION
MAXIMUM CUTTING DIAMETER: CHUCKING 36.02"
NOTE: CONSULT DETAIL SPECIFICATIONS FOR EXACT
VALUE. DEPENDS UPON TOOLING.
MAXIMUM CUTTING LENGTH 80" UNIVERSAL 78.15"
MAIN SPINDLE SPECIFICATIONS:
OPTIONAL 10.24" SPINDLE BORE:
SPINDLE NOSE A2-15
SPINDLE BORE 10.24"
SPINDLE SPEED/RANGE 1 - 750 RPM
SPINDLE HORSEPOWER (CONT/30 MINS.) 50/60 HP (AC)
SPINDLE TORQUE 1112 FT/LBS
TYPE OF TURRET 2 POSITION, W/ATC
TOOL SHANK HEIGHT 1.25"
MAGAZINE CAPACITY 30 TOOLS
TOOL SIZE (BORING BAR MAX. DIA.) 2.0"
TOOL SELECTION METHOD RANDOM
TOOL TO TOOL ATC TIME 2.5 SEC.
MAX. TOOL DIA. W/ALL POCKETS FULL 4.72"
MAX. TOOL DIA. W/ADJACENT POCKETS EMPTY 6.3"
MAX. TOOL LENGTH (FROM GAGE-LINE) 18.11"
MAXIMUM TOOL WEIGHT 44 LBS.
ATC TOOL SHANK-ROTARY TOOL CAT 50
TURNING TOOL MAZAK 60MM VDI
ROTARY TOOL SPINDLE SPEED/RANGES 18 - 4,000 RPM / 1
ROTARY TOOL SPINDLE HORSEPOWER (15 MINS) 30 H.P. (A.C.)
ROTARY TOOL TORQUE 159.1 FT/LBS
MAXIMUM FACE MILL 4"
MAXIMUM END MILL 1.57"
MAXIMUM DRILL 1.57"
MAXIMUM TAP 1-1/8 - 7 UNC
B-AXIS TRAVELS 210 DEG.(.001 DEG. INCREMENTS)
Y-AXIS TRAVELS +/- 5.91"
X-AXIS TRAVELS 39.96"
Z-AXIS TRAVELS 80.1"
Y-AXIS RAPIDS 315 IPM
X-AXIS RAPIDS 472 IPM
Z-AXIS RAPIDS 590 IPM
C-AXIS RAPIDS 15 RPM
TAILSTOCK SPINDLE CENTER MT #6
TAILSTOCK QUILL DIAMETER 7.09"
TAILSTOCK QUILL TRAVEL 6.3"
BODY TRAVEL 80" UNIVERSAL 70.47"
FLOOR SPACE (WXL) 80" UNIVERSAL 143.7" X 330.9"
MACHINE HEIGHT 129.45"
TOTAL POWER REQUIRED (MACHINE ONLY) 94.7 KVA
NOTE: ACTUAL MACHINE MAIN TRANSFORMER
KVA RATING WILL BE GREATER.
AIR REQUIREMENTS 71 PSI / 14 CFM
MACHINE WEIGHT 80" UNIVERSAL 45,194 LBS.
MAZATROL PC-FUSION-CNC 640MT CONTROL
EIA/ISO OPTION PACKAGE (FOR INT WITH B AXIS)
PCMCIA INTERFACE (2-SLOT)
3.5 FDD UNIT
NETWORK INTERFACE FOR LAN AND MODEM
COOLANT THROUGH MILLING HEAD
MAIN SPINDLE MOTOR AC 60 HP
C-AXIS 0.001 DEGREE INCR.
SPINDLE BORE 10.2 / 750 RPM
30 TOOL MAGAZINE
ROTARY TOOL MOTOR 30HP / 4000 RPM
B-AXIS 0.001 DEGREE INCR. N/A CONTOURING
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR SIDE DISCHARGE
Y-AXIS CONTROL
MILLING-SPINDLE SYNCHRONOUS TAPPING
HIGH-POWER COOLANT 105 PSI
CYLINDRICAL INTERPOLATION COMMAND
LONG BORING BAR STOCKER
28 4-JAW CHUCK
THIS INTEGREX 70YB HAS A FUSION 640 CONTROL, 80" CENTERS, 60HP MOTOR, PROGRAMMABLE TAILSTOCK, LONG BORING BAR STOCKER AND 28" 4-JAW CHUCK.
Imperial
| Maximum Swing | 36.02" |
| Max Turning Diameter | 36.02" |
| Main Spindle Bore/Max Bar Capacity | 10.24/ 10.24 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 30.3" |
| Maximum Cutting Length | 78.15" |
| X-Axis Travel (X1, X2, X3) | 39.96 |
| Z-Axis Travel (Z1, Z2, Z3) | 80.1 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 5.91" |
| C-Axis Indexing (1, 2) | 0.001 |
| Main Spindle Chuck Size | 28" |
| Main Spindle Chuck Type | Air |
| Main Spindle Bore Diameter | 10.24" |
| Main Spindle Speed | 750 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50/ 60 |
| ATC Magazine Capacity | 30 |
| B-Axis Travel | 210 |
| B-Axis Head Indexing | 0.001 deg |
| Chip Conveyor | Yes |
| Coolant Thru Milling Head | Yes |
| Control | CNC (MAZATROL PC-FUSION-CNC 640MT) |
| Dimensions | 330.9" X 143.7" X 129.45" |
| Weight | 45,194 LBS |
MAZAK INTEGREX 70YB CNC TURNING & MACHINING CENTER
NEW 2001
SPECIFICATIONS:
MAXIMUM SWING 36.02"
MAXIMUM SWING OVER CARRIAGE 16.5 " - 30.3"
NOTE: DEPENDS UPON WORKPIECE LENGTH, TOOL
MAGAZINE TYPE AND Y AXIS POSITION
MAXIMUM CUTTING DIAMETER: CHUCKING 36.02"
NOTE: CONSULT DETAIL SPECIFICATIONS FOR EXACT
VALUE. DEPENDS UPON TOOLING.
MAXIMUM CUTTING LENGTH 80" UNIVERSAL 78.15"
MAIN SPINDLE SPECIFICATIONS:
OPTIONAL 10.24" SPINDLE BORE:
SPINDLE NOSE A2-15
SPINDLE BORE 10.24"
SPINDLE SPEED/RANGE 1 - 750 RPM
SPINDLE HORSEPOWER (CONT/30 MINS.) 50/60 HP (AC)
SPINDLE TORQUE 1112 FT/LBS
TYPE OF TURRET 2 POSITION, W/ATC
TOOL SHANK HEIGHT 1.25"
MAGAZINE CAPACITY 30 TOOLS
TOOL SIZE (BORING BAR MAX. DIA.) 2.0"
TOOL SELECTION METHOD RANDOM
TOOL TO TOOL ATC TIME 2.5 SEC.
MAX. TOOL DIA. W/ALL POCKETS FULL 4.72"
MAX. TOOL DIA. W/ADJACENT POCKETS EMPTY 6.3"
MAX. TOOL LENGTH (FROM GAGE-LINE) 18.11"
MAXIMUM TOOL WEIGHT 44 LBS.
ATC TOOL SHANK-ROTARY TOOL CAT 50
TURNING TOOL MAZAK 60MM VDI
ROTARY TOOL SPINDLE SPEED/RANGES 18 - 4,000 RPM / 1
ROTARY TOOL SPINDLE HORSEPOWER (15 MINS) 30 H.P. (A.C.)
ROTARY TOOL TORQUE 159.1 FT/LBS
MAXIMUM FACE MILL 4"
MAXIMUM END MILL 1.57"
MAXIMUM DRILL 1.57"
MAXIMUM TAP 1-1/8 - 7 UNC
B-AXIS TRAVELS 210 DEG.(.001 DEG. INCREMENTS)
Y-AXIS TRAVELS +/- 5.91"
X-AXIS TRAVELS 39.96"
Z-AXIS TRAVELS 80.1"
Y-AXIS RAPIDS 315 IPM
X-AXIS RAPIDS 472 IPM
Z-AXIS RAPIDS 590 IPM
C-AXIS RAPIDS 15 RPM
TAILSTOCK SPINDLE CENTER MT #6
TAILSTOCK QUILL DIAMETER 7.09"
TAILSTOCK QUILL TRAVEL 6.3"
BODY TRAVEL 80" UNIVERSAL 70.47"
FLOOR SPACE (WXL) 80" UNIVERSAL 143.7" X 330.9"
MACHINE HEIGHT 129.45"
TOTAL POWER REQUIRED (MACHINE ONLY) 94.7 KVA
NOTE: ACTUAL MACHINE MAIN TRANSFORMER
KVA RATING WILL BE GREATER.
AIR REQUIREMENTS 71 PSI / 14 CFM
MACHINE WEIGHT 80" UNIVERSAL 45,194 LBS.
MAZATROL PC-FUSION-CNC 640MT CONTROL
EIA/ISO OPTION PACKAGE (FOR INT WITH B AXIS)
PCMCIA INTERFACE (2-SLOT)
3.5 FDD UNIT
NETWORK INTERFACE FOR LAN AND MODEM
COOLANT THROUGH MILLING HEAD
MAIN SPINDLE MOTOR AC 60 HP
C-AXIS 0.001 DEGREE INCR.
SPINDLE BORE 10.2 / 750 RPM
30 TOOL MAGAZINE
ROTARY TOOL MOTOR 30HP / 4000 RPM
B-AXIS 0.001 DEGREE INCR. N/A CONTOURING
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR SIDE DISCHARGE
Y-AXIS CONTROL
MILLING-SPINDLE SYNCHRONOUS TAPPING
HIGH-POWER COOLANT 105 PSI
CYLINDRICAL INTERPOLATION COMMAND
LONG BORING BAR STOCKER
28 4-JAW CHUCK
