MAZAK INTEGREX e500II-HS MULTI-AXIS CNC LATHE
CNC LATHES MULTI AXIS.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

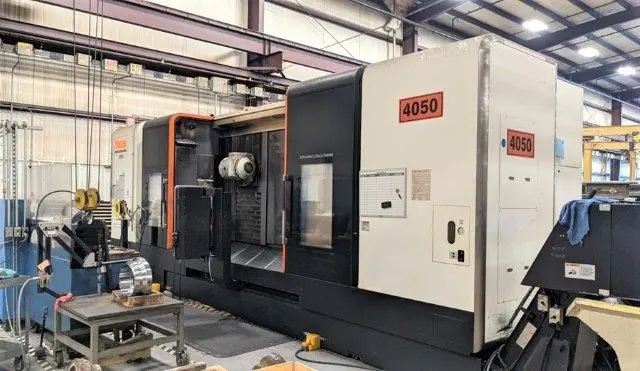

THS 2013 INTEGREX e-500HS HAS 120" CENTERS, MATRIX 2 CONTROL, 20" PRATT BERNERD HYDRAULIC CHUCK, SUPER FLOW 1000 PSI COOLANT THRU AND 120 STATION ATC.
| Maximum Swing | 32" |
| Max Turning Diameter | 32" |
| Main Spindle Bore/Max Bar Capacity | 4.0/ 3.75 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 120" |
| X-Axis Travel (X1, X2, X3) | 34.25 |
| Z-Axis Travel (Z1, Z2, Z3) | 122.91 |
| Y-Axis Travel (Y1, Y2, Y3) | 19.68 |
| W-Axis Travel Sub Spindle | 96.9 in |
| Main Spindle Chuck Size | 15" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4" |
| Main Spindle Maximum Bar Work | 3.75" |
| Main Spindle Speed | 1,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 50/ 40 |
| Sub Spindle/2nd Spindle Chuck Size | 12 |
| Main & Sub Spindle Synchronization | Yes |
| ATC Magazine Capacity | 120 |
| B-Axis Head Indexing | 240 deg |
| B Axis Rotary Tool Spindle Speed | 10000 rpm |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| High Pressure Coolant System (PSI) | 1000 |
| Control | CNC (Mazatrol Matrix 2) |
SPECIFICATIONS:
MAXIMUM SWING 32"
MAXIMUM MACHINING DIAMETER 32"
MAXIMUM MACHINING LENGTH 120"
X AXIS TRAVEL 34.25"
Y AXIS TRAVELS 19.68"
Z AXIS TRAVEL 122.91"
W AXIS TRAVEL 96.9"
B AXIS 240 DEGREES
SPINDLE BORE 4"
BAR CAPACITY 3.75"
SPINDLE NOSE A2-11
MAXIMUM SPEED 10,000 RPM
MOTOR OUTPUT/30 MINUTE RATING 40 HP
MOTOR OUTPUT/15 MINUTE RATING 50 HP
MAGAZINE CAPACITY 120 (CAT 40)
RAPID TRAVERSE 1575 IPM
MAZATROL MATRIX 2 CNC CONTROL
15" HYDRAULIC CHUCK
TOOL EYE
MIST COLLECTOR
CHIP CONVEYOR
