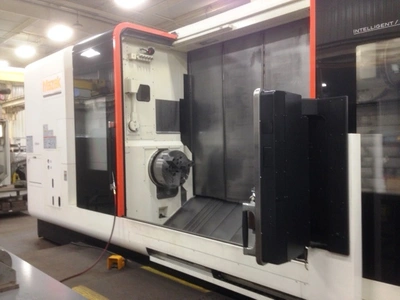

MAZAK INTEGREX e670II-H (160")

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX e670II-H
Year:
2014
Stock #:
4504
Status:
For Sale
Serial #:
255117

Description

THIS 2013 INTEGREX e-670H, MATRIX 2 CONTROL, 160" CENTERS, 120 TOOL ATC, TAILSTOCK, STEADY REST, PROBE, 1000 PSI COOLANT THRU AND 5 AXIS MACHINING PACKAGE.

Maximum Swing42.13"1,070.1 mm
Max Turning Diameter42.13"1,070.1 mm
Main Spindle Bore/Max Bar Capacity10.2/ 6.510.2/ 6.5
Tail Stock/Sub SpindleTail StockTail Stock
Distance Between Centers160"4,064 mm
Maximum Cutting Length157.48"4,000 mm
Distance Between Spindles160"4,064 mm
X-Axis Travel (X1, X2, X3)40.3540.35
Z-Axis Travel (Z1, Z2, Z3)162.91162.91
Y-Axis Travel (Y1, Y2, Y3)26.38" (+34.5/-32.5)26.38" (+34.5/-32.5)
C-Axis Indexing (1, 2).001.001
Main Spindle Chuck Size19.7"500.38 mm
Main Spindle Chuck TypeAirAir
Main Spindle Bore Diameter10.2"259.08 mm
Main Spindle Maximum Bar Work6.5"165.1 mm
Main Spindle Speed1,600 RPM1,600 RPM
Main Spindle Horsepower (CONT. /30 MINS)6060
ATC Magazine Capacity120120
B-Axis Travel30 DEG LEFT, 210 DEG RIGHT30 DEG LEFT, 210 DEG RIGHT
B-Axis Head Indexing0°0.0001 deg
B-Axis Milling Spindle Speed10,000 RPM10000 rpm
B-Axis Milling Spindle Horse Power5050
Long Boring Bar HolderYESYES
Steady RestYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
High Pressure Coolant System (PSI)10001000
Multi Tap TransformerYesYes
ControlCNC (Mazatrol Matrix 2)CNC (Mazatrol Matrix 2)

SPECIFICATIONS:
MAXIMUM SWING                        42.13"
MAXIMUM CUTTING LENGTH               157.48"
DISTANCE BETWEEN CENTERS             160"
TOOL MAGAZINE (CAT)                  120
SPINDLE NOSE                         A2-15
NUMBER OF SPINDLES                   1
MAIN SPINDLE SPEED                   1600 RPM
MILLING SPINDLE SPEED                10,000 RPM
X-AXIS TRAVEL                        40.35"
Y-AXIS TRAVEL                        26.38" (+345/-325)
Z-AXIS TRAVEL                        162.91"
C-AXIS INDEXING                      .001
B-AXIS ROTATION                      30 DEG LEFT, 210 DEG RIGHT
RAPID TRAVERSE (X)                   1575 IPM
RAPID TRAVERSE (Y)                   1575 IPM
RAPID TRAVERSE (Z)                   1575 IPM
MAIN SPINDLE                         60 HP (45 KW)
MILLING SPINDLE MOTOR                50HP (AC37KW)
MILLING SPINDLE SPEED                10,000 RPM
LATHE SPINDLE BORE DIAMETER          (6.69"/6.10) / 1,600 RPM / A2-15 NOSE
C-AXIS                               0.0001 DEGREE INCREMENT
TOOL MAGAZINE (CAT)                  120

Mazatrol Matrix 2 Control
MILLING SPINDLE PREPARATION FOR BIG PLUS TOOLHOLDERS
LATHE SPINDLE BORE DIAMETER 260MM (10.2") / 1,000 RPM / A2-15 NOSE
OVERLOAD DETECTION SYSTEM
120 TOOL MAGAZINE (CAT)
PREPARATION FOR STEADY REST W/O BRACKET (NC SERVO BASE)
STEADY REST HEAD SMW K5-Z 3.15"-15.35"
TOOL EYE (AUTOMATIC) FOR UP TO 24" DIAMETER CHUCK
CHIP CONVEYOR (SIDE DISCHARGE) (CONSEP) 4000U (160")
70KG/1000 PSI SUPER FLOW THRU COOLANT
DIAMETER 148MM DUCT FOR MIST COLLECTOR
LONG BORING BAR HOLDER DIAMETER 100MM (3.94") I.D.
LONG BORING BAR STOCKER (3-BAR)
LONG BORING BAR SUPPORT STOCKER FOR LBB (DIA. 100) 3.93"
MACHINE MONITOR CYBER FACTORY
HOBBING FUNCTION W/O TOOLING
AUTO PECKING CYCLE  WITH LOAD DETECTION
EIA DYNAMIC COMPENSATION (G54.2)
ETHERNET OPERATION FUNCTION
RE-THREADING FUNCTION
MAZAK SUPER FLOW V8A VARIABLE HIGH PRESSURE COOLANT UNIT
(INCLUDES:  DOUBLE BAG TYPE FILTERS WITH AUTO CROSSOVER)
VARIABLE PRESSURE SUPER FLOW UNIT
INVERTER DRIVE FOR 200-1000 PSI
PRESSURE FEEDBACK LOOP FOR MULTI ORIFICE TOOLS
*** MIST COLLECTION SYSTEM RECOMMENDED
VOLTAGE 230/460/3 PHASE
SCALE FEEDBACK SYSTEM (X AXIS)
SCALE FEEDBACK SYSTEM (Y AXIS)
SMW AUTOBLOK KNCS-NB 500/155 W/SMW VSG-450-165 CYL (FOR 6.5” BORE)
SMW AUTOBLOK 19.7” CHUCK PACKAGE INCLUDING KNCS-NB 500/155
QUICK CHANGE CHUCK WITH A2-15 ADAPTER
NOTE: DRAW TUBE I.D. = 6.10” MIN

TOOLING........(WILL VERIFY ALL TOOLING TO ACCOMPANY THE MACHINE)..THIS WILL INCLUDE LONG BORING BAR HOLDERS AND VARIOUS TOOLING..LIST TO BE SENT TO ME
PREPARATION FOR FLASH TOOL SYSTEM
STANDARD TOOLING PACKAGE
1 PC TURNING HOLDER R
3 PCS TURNING HOLDER L
4 PCS BORING BAR HOLDER 2" I.D.
1 PC BORING BAR SOCKET - 1 1/2" I.D. X 2.0" O.D.
1 PC BORING BAR SOCKET 1 1/4" I.D. X 2.0" O.D.
1 PC BORING BAR SOCKET 1" I.D. X 2.0" O.D.
1 PC BORING BAR SOCKET 3/4" I.D. X 2.0" O.D.
1 PC BORING BAR SOCKET 5/8" I.D. X 2.0" O.D.
12 PCS COOLANT NOZZLES
8 PCS RETENTION STUD
