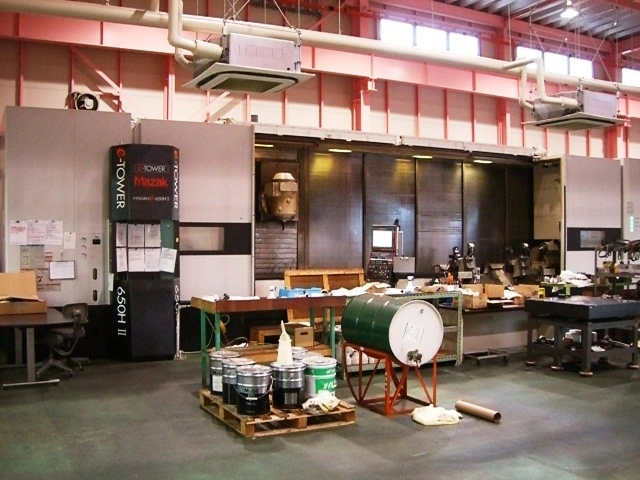

MAZAK INTEGREX e650II-H CNC MULTI TASKING TURNING CENTER

MAZAK INTEGREX e650II-H CNC MULTI TASKING TURNING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX e650II-H
Year:
2009
Stock #:
4222
Status:
For Sale

Description

THIS INTEGREX e-650H HAS 240" CENTERS, MATRIX 5 AXIS CONTROL, LONG BORING BAR STOCKER, COOLING THRU MILL HEAD, RENISHAW PROBE, 2 HDRAULIC STEADY REST AND A MANUAL STEADY REST ALONG WITH A 15" & 24" THRU HOLE CHUCKS.

Maximum Swing36.2"919.48 mm
Max Turning Diameter36.2"919.48 mm
Main Spindle Bore/Max Bar Capacity6.69"/ 6.69"6.69"/ 6.69"
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Swing Over Cross Slide36.2"919.48 mm
Maximum Cutting Length240"6,096 mm
X-Axis Travel (X1, X2, X3)40.3540.35
Z-Axis Travel (Z1, Z2, Z3)252.87252.87
Y-Axis Travel (Y1, Y2, Y3)25.625.6
Main Spindle Chuck Size24"609.6 mm
Main Spindle Chuck TypeAirAir
Main Spindle Bore Diameter6.69"169.93 mm
Main Spindle Speed1,600 RPM1,600 RPM
Main Spindle Horsepower (CONT. /30 MINS)60/ 5060/ 50
Main & Sub Spindle SynchronizationYesYes
ATC Magazine Capacity8080
B-Axis Travel-30 - +210-30 - +210
B-Axis Head Indexing0°0.0001 deg
B Axis Rotary Tool Spindle Speed10,000 RPM10000 rpm
B-Axis Rotary Tool Spindle Horsepower50 hp
Long Boring Bar StockerYESYES
Steady RestYesYes
Chip ConveyorYesYes
Milling Spindle Synchronous TappingYesYes
Tool Eye Automatic Front SpindleYesYes
Coolant Thru Milling HeadYesYes
High Pressure Coolant System (PSI)213213
Multi Tap TransformerYesYes
ControlCNC (MAZATROL MATRIX 5-AXIS)CNC (MAZATROL MATRIX 5-AXIS)
Weight90,200 LBS90,200 LBS

SPECIFICATIONS:
MAXIMUM SWING OVER BED                       36.2"
MAXIMUM SWING OVER CARRIAGE                  36.2"
MAXIMUM MACHINING DIAMETER                   36.2"
MAXIMUM CUTTING LENGTH                       240"
MAIN MOTOR DRIVE                             60/50 HP AC
SPINDLE HOLE                                 6.69"
SPINDLE NOSE                                 A2-11"
SPINDLE SPEEDS                               1600 RPM
MAIN SPINDLE TORQUE                          3,319 FT/LBS.
SPINDLE PROGRAMMING INCREMENTS (C-AXIS)      360,000 N/C CONTOURING
X- AXIS TRAVEL                               40.35"
Z- AXIS TRAVEL                               252.87"
Y- AXIS TRAVEL                               25.6"
B- AXIS POSITIONING                          -30 - +210
RAPID TRAVERSE RATE(X , Y ,Z)                1575,1575,1575
MAXIMUM CUTTING FEEDRATE                     1575 IPM
TOOL MAGAZINE CAPACITY                       80 ATC
ROTARY TOOL SPINDLE SPEED                    10,000 RPM (HIGH TORQUE)
ROTARY TOOL MOTOR                            50 HP AC
TAILSTOCK:
SPINDLE CENTER                               MT # 6
QUILL DIAMETER                               7.09"
QUILL TRAVEL                                 6.3"
QUILL THRUST                                 6914 LBS.
TAILSTOCK BODY TRAVEL                        198.08"
MACHINE WEIGHT                               90,200 LBS.

MAZATROL MATRIX 5-AXIS CONVERSATIONAL CONTROL
EIA / ISO INPUT FUNCTION
ADD. EIA / ISO FUNCTIONS (REQ. EIA / ISO)
LONG BORING BAR STOCKER
INVERSE TIME FEED
B-AXIS 5 DEGREE COUPLING CLAMP
B-AXIS CONTOURING
.0001 DEGREE B-AXIS INDEXING
Y-AXIS CONTROL
X, Y, Z, PITCH ERROR COMP INPUT
COOLANT THRU MILLING HEAD
AURO TOOL LENGTH MEARUING SYSTEM
OPERATOR DOOR INTERLOCK WITH LOCK SWITCH
E-TOWER MONITOR
USER MACRO 600 PAIRS
MAZAK TAPPING BORING / TORNADO (EIA/ISO)
ADD.
B) MAZAK 2D SOFTWARE (SHAPE COMPENSATION)
ADD. WORKPIECE COORDINATE SYSYTEM 300 PAIRS
THREAD CUTTING FUNCTION
CARDBUS I/F (2-SLOT)
LAN PORT
USB I/F
IC MEMORY CARD
15"& 24" THRU HOLE CHUCK
MILL SPINDLE SYNC. TAPPING
INCH /METRIC CONVERSION
C-AXIS 0.0001 DEGREE INCREMENT
CHIP CONVEYOR 240"
MONITORING SYSTEM B RENISHAW MP10 (H/V ONLY)
MANUAL DETACHABLE MPG
EIA IST SPINDLE & MILL SPINDLE SIMUL ROTATION
COOLANT TEMPERATURE CONTROL SYSTEM
HIGH PRESSURE COOLANT 213 PSI
AUTO POWER ON / OFF WARM UP
(2)FULLY PROGRAMMABLE OPEN CLOSE SMW AUTOBLOK STEADY REST
(1)MANUAL STEADY REST
TRANFORMER
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
