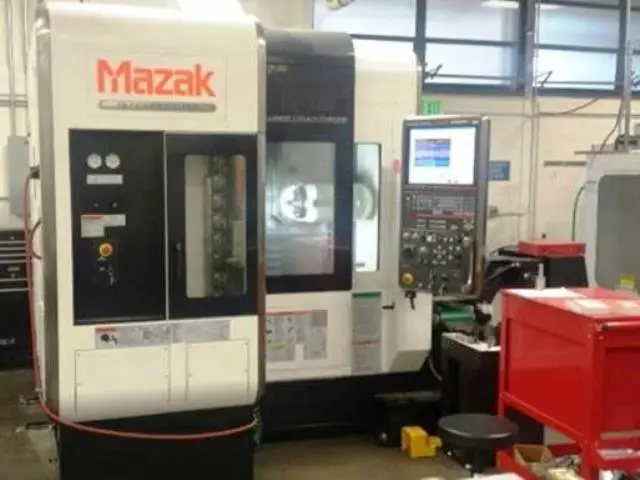

MAZAK INTEGREX i 150

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX i 150
Year:
2008
Stock #:
5634
Status:
For Sale
Serial #:
207904

Description

THIS INTEGREX i-150 HAS A MATRIX CONTROL, 8" CHUCK WITH 2.5" BAR CAPACITY, 72 STATION ATC, 20,000 RPM ROTARY TOOL SPINDLE, TAIL CENTER ATTACHMENT, PARTS CATCHER AND 213 PSI COOLANT THRU.

Maximum Swing15.75"400.05 mm
Max Turning Diameter13.39"340.11 mm
Main Spindle Bore/Max Bar Capacity2.99/ 2.52.99/ 2.5
Tail Stock/Sub SpindleSub SpindleSub Spindle
X-Axis Travel (X1, X2, X3)14.5714.57
Z-Axis Travel (Z1, Z2, Z3)17.1317.13
Y-Axis Travel (Y1, Y2, Y3)7.877.87
W-Axis Travel Sub Spindle11.81 in
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.99"75.946 mm
Main Spindle Maximum Bar Work2.5"63.5 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)1515
ATC Magazine Capacity7272
Turret Rotary Tool Spindle Speed 1, 22000020000
Turret Rotary Tool Horse Power 1, 21010
B-Axis Travel-10 - 190°-10 - 190°
B-Axis Head Indexing0°0 deg
B Axis Rotary Tool Spindle Speed20,000 RPM20000 rpm
B-Axis Rotary Tool Spindle Horsepower10 hp
Parts CatcherYesYes
Chip ConveyorYesYes
High Pressure Coolant System (PSI)213213
ControlCNC (MAZATROL MATRIX)CNC (MAZATROL MATRIX)
Dimensions86.61" X 95.28"86.61" X 95.28"

SPECIFICATIONS:
MAX. SWING             15.75”
MAX. TURNING DIA.      13.39”
MAX. TURNING LENGTH    15.1”
BAR WORK CAPABILITY    2.55"
X AXIS TRAVEL          14.57
Y AXIS TRAVEL          7.87
Z AXIS TRAVEL          17.13
W AXIS TRAVEL          11.81"
B AXIS TRAVEL          -10 - 190°
MAIN SPINDLE           5,000 RPM - 15 HP (30 MINS.)
ROTARY TOOL SPINDLE    20,000 RPM - 10 HP (20% ED)
FLOOR SPACE            86.61" X 95.28"
TOOL STORAGE CAPACITY  72

MAZATROL MATRIX CONTROL
8” CHUCK BB08 2.5” BAR PACKAGE MAIN SPINDLE
72-HSK MAGAZINE
20,000 RPM HSK-63 MILL-SPINDLE
DOUBLE FOOT SWITCH
PREPARATION FOR MIST COLLECTOR
CHUCK AIR BLAST
COOLANT & AIR BLAST FOR CHUCK JAWS
213-HI PRESSURE COOLANT WITH FLOOD
WORK UNLOADING UNIT
TAIL CENTER ATTACHMENT
BARFEED INTERFACE FOR LNS SERVO BARFEEDER
SIGNAL TOWER 3-COLORS
MAZZAC 3D HIGH SPEED SOFTWARE FANUC G-05
HIGH SMOOTHING CONTROL FUNCTION
5X SIMULTANEOUS INPUT FUNCTION
MILL-SPINDLE SYNCH TAPPING
F-TOOL TIP CONTROL FUNCTION – 5X
F-TOOL RADIUS CONTROL FUNCTION – 5X
AUTO PARTS CATCHER
LNS BARFEED INTERFACE FOR S80
PREPPED FOR RENISHAW PROBE
FIRE SUPRESSION SYSTEM
CHIP CONVEYOR SIDE DISCHARGE

MACHINE HAS BEEN MAINTAINED BY MAZAK SERVICE PERSONNEL AND IS MINT CONDITION. BUYER TO VERIFY ALL OPTIONS.
