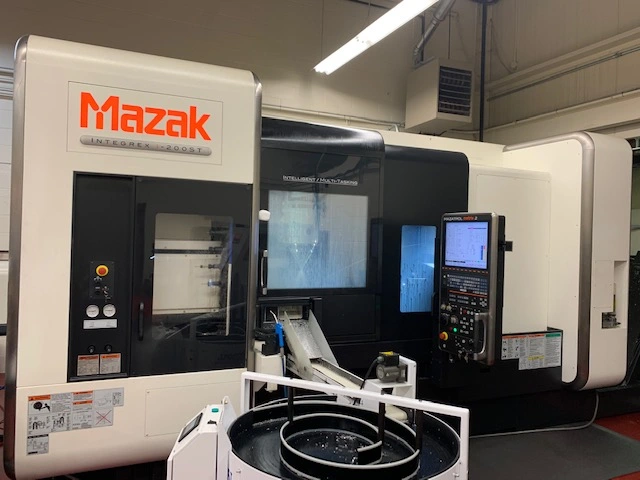

MAZAK INTEGREX i 200ST MULTITASKING TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS INTEGREX i-200ST HAS A SUB-SPINDLE AND LOWER TURRET, 60" CENTERS, 10" & 8 " CHUCKS, 213 PSI COOLANT THRU, PARTS CATCHER, BARFEEDER AND MATRIX 2 CONTROL.
SPECIFICATIONS:
MAX. SWING 25.9"
MAX. MACHINING DIA (UPPER TURRET) 25.9"
MAX. MACHINING DIA (LOWER TURRET) 16.54"
MAX. MACHINING LENGTH 59.8"
MAX. BAR WORK CAPACITY (MAIN SPINDLE) 2.5"
MAX. BAR WORK CAPACITY (SECOND SPINDLE)N/A
X-AXIS TRAVEL 24.21"
Y-AXIS TRAVEL 9.84"
Z-AXIS TRAVEL 62.4"
X2-AXIS TRAVEL (LOWER TURRET) 9.05"
Z2-AXIS TRAVEL (LOWER TURRET) 54.65"
B-AXIS TRAVEL 30 DEG - 210 DEG
MAIN SPINDLE:
CHUCK SIZE 10"
MAIN SPINDLE SPEED 5000 RPM
MAIN SPINDLE NOSE/ BORE/BAR CAP A2-8/ 2.99"/ 2.5"
BEARING ID 4.72" MINIMUM
MAIN SPINDLE 0.0001 DEG
SECOND SPINDLE:
CHUCK SIZE 8"
SECOND SPINDLE SPEED 5000 RPM
SECOND SPINDLE TRAVEL (W-AXIS) 60.6"
SECOND SPINDLE NOSE/ BORE A2-6/2.99"
BEARING ID 4.72" MINIMUM
MAIN SPINDLE 0.0001 DEG
MILLING SPINDLE:
MILLING SPINDLE TYPE SINGLE SPINDLE TURRET W/ATC
MILLING SPINDLE SPEED 1200 RPM
MAX. MILLING SPINDLE TORQUE 120 NM
TOOL SHANK HEIGHT 1"
BORING BAR SHANK DIAMETER 1.575"
MIN MILLING SPINDLE INDEXING INC 0.0001 DEG
LOWER TURRET:
TURRET TYPE 9 POSITION DRUM TURRET
NUMBER OF TOOLS 9
TOOL SHANK HEIGHT 1"
BORING BAR SHANK DIAMETER 1.26"
TURRET INDEXING TIME 0.14 SEC/1 STEP
RAPID TRAVERSE RATE X-AXIS 1,969 ipm
RAPID TRAVERSE RATE Y-AXIS 1,575 ipm
RAPID TRAVERSE RATE Z-AXIS 1,969 ipm
RAPID TRAVERSE RATE X2-AXIS (LOWER) 1,969 ipm
RAPID TRAVERSE RATE Z2-AXIS (LOWER) 1,969 ipm
RAPID TRAVERSE RATE W-AXIS 1,181 ipm
TOOL SHANK CAPTO
CHANGER SYSTEM:
TOOL STORAGE CAPACITY 36 TOOLS
MAX. TOOL DIA/LENGTH (FROM GAUGE LINE)3.54"
(WHEN ADJ. POCKET EMPTY) 4.92"/15.75"
MAX. TOOL WEIGHT 5.45
TOOL SELECTION METHOD SHORTEST PATH
MACHINE HEIGHT 107"
FLOOR SPACE REQUIREMENT 193.3" X 110.2"
MACHINE WEIGHT 35,596 lbs
TOOL RADIUS COMPENSATION/ 5 AXIS
WORK SETTING COMPENSATION
5-AXIS MACHINING PKG
MAYFRAN CONCEP 2000 DUAL BELT CHIP CONVEYOR
WITH SPECIAL DISCHARGE HEIGHT, INCLUDING COOLING TANK
LNS QUICK LOAD SERVO 80-S2 BARFEED
MAZATROL MATRIX 2 CNC CONVERSATIONAL CONTROL
19" COLOR LCD
EIA/ ISO CODE INPUT FUNCTION
ADDITIONAL EIA/ ISO FUNCTIONS
3-D COORDINATE CONVERSION
G00 SLOPE CONSTANT
CYLINDRICAL AND POLAR COORDINATE
MILLING-SPINDLE SYNCHRONOUS TAPPING
EIA 1ST SPINDLE & MILL SPINDLE SIMULTANEOUS ROTATION
INCH/ METRIC CONVERSION
CARDBUS I/F 2 SLOT
LAN PORT
USB I/F
1 KG FLOOD COOLANT (LOWER TURRET)
1ST SPINDLE BORE DIA 3"
1ST SPINDLE MOTOR AC 22KW (30HP)/ A2-06 NOSE
1ST SPINDLE SPEED 5000 RPM
C-AXIS 0.0001 DEGREE INC - 1ST SPINDLE
2ND SPINDLE MOTOR AC 18 5KW (25HP) A2-06 NOSE
ROLLER GUIDE
Y AXIS
ABSOLUTE POSITIONING SYSTEM - LINEAR AXES
X, Y, Z PITCH ERROR COMPENSATION INPUT
COMPLETE COOLANT SYSTEM
COOLANT THRU MILLING HEAD (UPPER TURRET)
15KG/ 213 PSI COOLANT THRU(UPPER TURRET)
FLOOD COOLANT SIMUL-FLOW
2ND SPINDLE SPEED 5000RPM
2ND SPINDLE C-AXIS WITH C1-C2 0.0001 DEGREE INCR
CHUCK BLAST (2ND SPINDLE)
8" THRU-HOLE CHUCK B-208A615 (1ST SPINDLE)
8" NON THRU HOLE CHUCK B-208 (2ND SPINDLE
36 CAPTO TOOL MAGAZINE
ROTARY TOOL SPINDLE SPEED - 12000 RPM
B-AXIS 0.0001 DEGREE CONTOURING
LOWER 9 POSITION DRUM TURRET
AUTOMATIC TOOL EYE FOR UPPER & LOWER TURRET
AUTO CHUCK JAWS OPEN/ CLOSE (1ST & 2ND SPINDLE)
OPERATOR DOOR LOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
COOLERS FOR BALL SCRE (X-AXIS)
ELECTRICAL CONTROL BOX UL STANDARD (240V)
POWER TRANSFORMER FOR NORTH AMERCIAN MARKET
MT CONNECT
WINDOWS 7 OPERATING SYSTEM
AUTOMATIC PARTS CATCHER W/EJEC (2.56" DIA X 4.7"L X 5.5LB)
LOCATED UNDERNEATH PARTS COVEYOR - WHICH IS EASILY REMOVED
