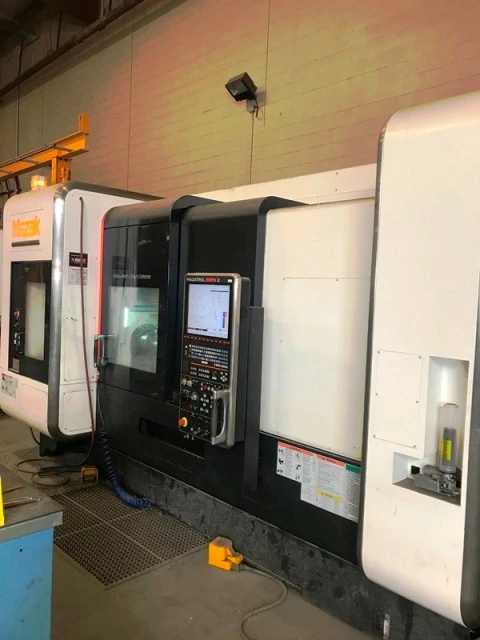

MAZAK INTEGREX i 300S / 1500 CNC MULTI-TASKING TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS 2014 INTEGREX i-300S HAS A MATRIX 2 CONTROL, SIMULTANEOUS 5 AXIS, 60" CENTERS 2 - 10" CHUCKS WITH 3" THRU HOLES, 5 AXIS SPLINE AND 40 TOOL ATC.
SPECIFICATIONS:
SWING OVER BED 25.9"
TURNING DIAMETER 25.9"
TURNING LENGTH 59.8"
DISTANCE BETWEEN SPINDLES 61.8"
CHUCK SIZE 1, 2 10", 10"
SPINDLE NOSE 1, 2 A2-8, A2-8
SPINDLE BORE DIAMETER 1, 2 3.59", 3.59"
BAR CAPACITY 1, 2 3.15", 3.15"
SPINDLE SPEEDS 1, 2 4000, 4000 RPM
SPINDLE HORSEPOWER 1, 2 40, 35 HP
B-AXIS HEAD INDEXING -30 ~ +210 DEGREES
B-AXIS MILLING SPIND SPEED 12000 RPM
B-AXIS MILLING SPIND TAPER CAPTO C6
B - AXIS MILLING SPINDLE 35 HP
ATC FOR MILLING SPINDLE 40 ATC
TOOL DIAMETER 3.54" / 4.92"
TOOL LENGTH 15.7"
TOOL WEIGHT 26.46 LBS.
X - AXIS TRAVEL 24.21"
Z - AXIS TRAVEL 62.4"
Y - AXIS TRAVEL 9.84"
C - AXIS INDEXING 1, 2 .001, .001 DEGREES
W - AXIS TRAVEL SUB SPINDLE 61.5"
RAPID TRAVERSE RATES 1969 IPM
RAPID TRAVERSE RATES 1969 IPM
RAPID TRAVERSE RATES 1575 IPM
MACHINE WEIGHT 33510 LBS.
MAZATROL MATRIX 2 CNC CONTROL
5-AXIS SPLINE
5-AXIS TOOL COMP.
COMPARISON STOP
G54.1
SYNC. MILL TAPPING
DYNAMIC COMP.
3-D CO-OR ROT.
AUTO ATLM
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
EIA, SPIRAL
EIA 3D COMP.
EXT-DATA I/O
HIGH SPEED, SHAPE COMP.
G00 SLOPE CONSTANT
HIGH SMOOTHING CONTROL
INCH/MM CONVERT
POLAR COORDINATES INPUT
PROGRAM MEMORY EXPANSION
RE-THREAD
ROTATION, GEOMETRIC, SCALING
ROT-AXIS SHAPE COMP.
SIMULTANEOUS 5 AXIS
THREAD CUT-SPEED OVERRIDE
THREAD START POINT COMP.
THREAD, SUB C-AXIS CONTROL
INVERSE TIME
TILTED WORKING PLANE
TOOL CENTER POINT CONTROL
VARIABLE 600 SETS, CYLINDER
WORK POS. ERR. COMP.
CHIP CONVEYOR
THIS 2014 INTEGREX i-300S HAS A MATRIX 2 CONTROL, SIMULTANEOUS 5 AXIS, 60" CENTERS 2 - 10" CHUCKS WITH 3" THRU HOLES, 5 AXIS SPLINE AND 40 TOOL ATC.
Imperial
| Maximum Swing | 25.9" |
| Max Turning Diameter | 25.9" |
| Main Spindle Bore/Max Bar Capacity | 3.59/ 3.15 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 59.8" |
| Distance Between Spindles | 61.8" |
| X-Axis Travel (X1, X2, X3) | 24.21 |
| Z-Axis Travel (Z1, Z2, Z3) | 62.4 |
| Y-Axis Travel (Y1, Y2, Y3) | 9.84 |
| C-Axis Indexing (1, 2) | .001, .001 DEGREES |
| W-Axis Travel Sub Spindle | 61.5 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.59" |
| Main Spindle Maximum Bar Work | 3.15" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Sub Spindle/2nd Spindle Chuck Size | 10 |
| Sub Spindle/2nd Spindle Bore Size | 3.59 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 35 |
| ATC Magazine Capacity | 40 |
| B-Axis Head Indexing | -30210 deg |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B-Axis Milling Spindle Horse Power | 35 |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Control | CNC (Mazatrol Matrix 2) |
| Weight | 33510 LBS |
SPECIFICATIONS:
SWING OVER BED 25.9"
TURNING DIAMETER 25.9"
TURNING LENGTH 59.8"
DISTANCE BETWEEN SPINDLES 61.8"
CHUCK SIZE 1, 2 10", 10"
SPINDLE NOSE 1, 2 A2-8, A2-8
SPINDLE BORE DIAMETER 1, 2 3.59", 3.59"
BAR CAPACITY 1, 2 3.15", 3.15"
SPINDLE SPEEDS 1, 2 4000, 4000 RPM
SPINDLE HORSEPOWER 1, 2 40, 35 HP
B-AXIS HEAD INDEXING -30 ~ +210 DEGREES
B-AXIS MILLING SPIND SPEED 12000 RPM
B-AXIS MILLING SPIND TAPER CAPTO C6
B - AXIS MILLING SPINDLE 35 HP
ATC FOR MILLING SPINDLE 40 ATC
TOOL DIAMETER 3.54" / 4.92"
TOOL LENGTH 15.7"
TOOL WEIGHT 26.46 LBS.
X - AXIS TRAVEL 24.21"
Z - AXIS TRAVEL 62.4"
Y - AXIS TRAVEL 9.84"
C - AXIS INDEXING 1, 2 .001, .001 DEGREES
W - AXIS TRAVEL SUB SPINDLE 61.5"
RAPID TRAVERSE RATES 1969 IPM
RAPID TRAVERSE RATES 1969 IPM
RAPID TRAVERSE RATES 1575 IPM
MACHINE WEIGHT 33510 LBS.
MAZATROL MATRIX 2 CNC CONTROL
5-AXIS SPLINE
5-AXIS TOOL COMP.
COMPARISON STOP
G54.1
SYNC. MILL TAPPING
DYNAMIC COMP.
3-D CO-OR ROT.
AUTO ATLM
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
EIA, SPIRAL
EIA 3D COMP.
EXT-DATA I/O
HIGH SPEED, SHAPE COMP.
G00 SLOPE CONSTANT
HIGH SMOOTHING CONTROL
INCH/MM CONVERT
POLAR COORDINATES INPUT
PROGRAM MEMORY EXPANSION
RE-THREAD
ROTATION, GEOMETRIC, SCALING
ROT-AXIS SHAPE COMP.
SIMULTANEOUS 5 AXIS
THREAD CUT-SPEED OVERRIDE
THREAD START POINT COMP.
THREAD, SUB C-AXIS CONTROL
INVERSE TIME
TILTED WORKING PLANE
TOOL CENTER POINT CONTROL
VARIABLE 600 SETS, CYLINDER
WORK POS. ERR. COMP.
CHIP CONVEYOR
