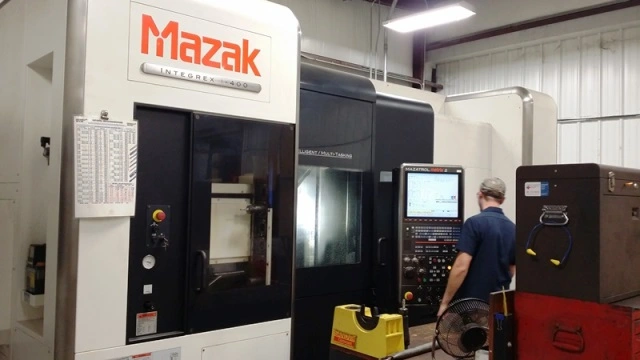

MAZAK INTEGREX i 400
Have one to sell?
ConditionUsed
1 available
THIS INTEGREX i-400 HAS A MATRIX 2 CONTROL, 60" CENTERS, 12" CHUCK WITH 4 THROUGH HOLE, 213 PSI COOLANT THRU AND SMW STEADY REST.
SPECIFICATIONS:
MAX. SWING / SWING OVER CROSS SLIDE 25.9"
MAX. MACHINING DIA. / UPPER TURRET 25.9
MAX. MACHINING LENGTH 59.8"
X AXIS TRAVEL 24.21"
Z AXIS TRAVEL 62.4"
Y AXIS TRAVEL 9.84"
MAIN SPINDLE 3300 RPM
MAIN SPINDLE NOSE A2-8
MAIN SPINDLE BORE 4.41"
MAX. BAR WORK CAPACITY 4.02"
MILLING SPINDLE SPEED 12000 RPM
B AXIS MINIMUM INDEXING INCREMENT 0.0001"
TOOL CAPACITY 36 TOOLS
TOOL SHANK CAPTO
TOOL SELECTION METHOD RANDOM / SHORTEST PATH
TAILSTOCK CENTER MT NO. 5
TAILSTOCK TRAVEL (W AXIS) 61.50"
MAIN SPINDLE MOTOR 40 HP / 30 HP
MILLING SPINDLE MOTOR 30 HP / 20 HP
MACHINE HEIGHT 107.1"
FLOOR SPACE 204.72" X 110.24"
WEIGHT 34,172 LBS
MAZATROL MATRIX 2 CONTROL
12" THRU HOLE CHUCK
15KG / 213 PSI THRU COOLANT FLOOD SIMUL-FLOWABLE
36 CAPTO MAGAZINE
SMW STEAD REST SLV3 WITH HEAD 1.97" - 7.88 CAPACITY
SIDE HINGE CHIP CONVEYOR
ALL AVAILABLE TOOLING AND MANUALS
THIS INTEGREX i-400 HAS A MATRIX 2 CONTROL, 60" CENTERS, 12" CHUCK WITH 4 THROUGH HOLE, 213 PSI COOLANT THRU AND SMW STEADY REST.
Imperial
| Maximum Swing | 25.9" |
| Max Turning Diameter | 25.9" |
| Main Spindle Bore/Max Bar Capacity | 4.41/ 4.02 |
| Tail Stock/Sub Spindle | Tail Stock |
| Maximum Swing Over Cross Slide | 25.9" |
| Maximum Cutting Length | 59.8" |
| X-Axis Travel (X1, X2, X3) | 24.21 |
| Z-Axis Travel (Z1, Z2, Z3) | 62.4 |
| Y-Axis Travel (Y1, Y2, Y3) | 9.84 |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.41" |
| Main Spindle Maximum Bar Work | 4.02" |
| Main Spindle Speed | 3,300 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40/ 30 |
| ATC Magazine Capacity | 36 |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B-Axis Milling Spindle Horse Power | 30 |
| Steady Rest | Yes |
| Chip Conveyor | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 204.72" X 110.24" X 107.1" |
SPECIFICATIONS:
MAX. SWING / SWING OVER CROSS SLIDE 25.9"
MAX. MACHINING DIA. / UPPER TURRET 25.9
MAX. MACHINING LENGTH 59.8"
X AXIS TRAVEL 24.21"
Z AXIS TRAVEL 62.4"
Y AXIS TRAVEL 9.84"
MAIN SPINDLE 3300 RPM
MAIN SPINDLE NOSE A2-8
MAIN SPINDLE BORE 4.41"
MAX. BAR WORK CAPACITY 4.02"
MILLING SPINDLE SPEED 12000 RPM
B AXIS MINIMUM INDEXING INCREMENT 0.0001"
TOOL CAPACITY 36 TOOLS
TOOL SHANK CAPTO
TOOL SELECTION METHOD RANDOM / SHORTEST PATH
TAILSTOCK CENTER MT NO. 5
TAILSTOCK TRAVEL (W AXIS) 61.50"
MAIN SPINDLE MOTOR 40 HP / 30 HP
MILLING SPINDLE MOTOR 30 HP / 20 HP
MACHINE HEIGHT 107.1"
FLOOR SPACE 204.72" X 110.24"
WEIGHT 34,172 LBS
MAZATROL MATRIX 2 CONTROL
12" THRU HOLE CHUCK
15KG / 213 PSI THRU COOLANT FLOOD SIMUL-FLOWABLE
36 CAPTO MAGAZINE
SMW STEAD REST SLV3 WITH HEAD 1.97" - 7.88 CAPACITY
SIDE HINGE CHIP CONVEYOR
ALL AVAILABLE TOOLING AND MANUALS
