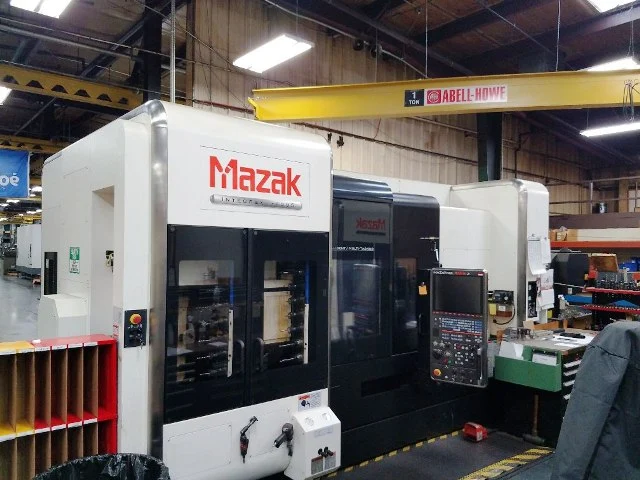

MAZAK INTEGREX i 400SR /1500 CNC MULTI-TASKING TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS 2013 INTEGREX i-400SR COMES WITH SMOOTH X CONTROL, LNS AUTOBLOK STEADY REST, 1000 PSI COOLANT THRU, RENISHAW PROBE AND 15" HYDRAULIC CHUCKS ON 1ST & 2ND SPINDLES.
SPECIFICATIONS:
SWING OVER BED 25.9"
TURNING DIAMETER 25.9"
TURNING LENGTH 59.8"
DISTANCE BETWEEN SPINDLES 61.96"
CHUCK SIZE 1, 2 15", 15"
SPINDLE NOSE 1, 2 A2 - 8", A2-8"
SPINDLE BORE DIAM 1, 2 4.41"/3.58"
BAR CAPACITY 1, 2 4",3"
SPINDLE SPEEDS 1, 2 3300, 4000 RPM
SPINDLE HORSEPOWER 1, 2 40, 35 HP
B-AXIS HEAD INDEXING 240 DEGREE
B-AXIS MILL SPINDLE SPEED 12,000 RPM
B-AXIS MILL SPINDLE TAPER CAPTO C6
B - AXIS MILLING SPINDLE 30 HP
ATC FOR MILLING SPINDLE 72 ATC
TOOL DIAMETER 3.54", 4.92"
TOOL LENGTH 15.75"
TOOL WEIGHT 26.46 LBS.
X - AXIS TRAVEL X1, X2 24.21"
Z - AXIS TRAVEL Z1, Z2 62.4",
Y - AXIS TRAVEL Y1, Y2 9.84"
C - AXIS INDEXING 1, 2 0.0001, 0.0001 DEGREE
W - AXIS TRAVEL SUB SPIN 61.96"
RAPID TRAVERSE X1, X2 1969 IPM
RAPID TRAVERSE Y1, Y2 1575 IPM
RAPID TRAVERSE Z1, Z2 1969 IPM
MACHINE WEIGHT 39,380 LBS.
MAZATROL SMOOTH X CNC CONTROL
15" 3 JAW HYDRAULIC CHUCK PACKAGE 1ST & 2ND SPINDLE
2ND AUXILLARY FUNCTION
2ND SPINDLE C AXIS W/C1-C2 .0001DEGREE INCREMENTS
3-D COORDINATE ROTATION
AUTO TLM
COMPARISON STOP
CYLINDRICAL & POLAR COORDINATE
EIA 3-D COMP
EIA HELICAL TAP
EIA PATTERN CYCLE
EIA/ISO PROGRAMMING
EXT DATA I/O
FLASH TOOL
G00 SLOPE CONSTANT
G54.1 GEOMETRIC
HIGH SPEED
INCH/METRIC
INVERSE TIME FUNCTION
LNS/AUTOBLOK PROGRAMMABLE STEADY REST SLUX-Z-3.2 1.97" ~ 7.88"
MAZAK SUPER FLOW S8 HIGH PRESSURE COOLANT 1000 PSI / 8GPM
MIST COLLECT0R (CR-70K)
POLAR COODINATE INPUT
PREP 70KG/1000 PSI SUPER FLOW COOLANT THRU SPINDLE FLOOD SIMULTANEOUS
PREPARATION FOR MULTI & FLASH TOOL SYSTEM
RENISHAW WORK MEASURING SYSTEM RMP 60 PROBE
ROTATION
ROT-AXIS SHAPE COMP.
SCALING
SHAPE COMPENSATION
SPIRAL
SUB C-AXIS CONTROL
SYNC. TAPP MILL HEAD
THREAD TILTED WORKPLANE
VARIABLE 600 SETS
