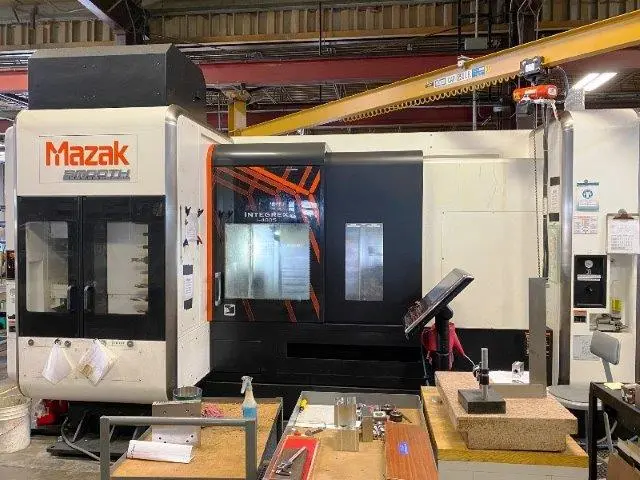

MAZAK INTEGREX i 400SW /1500 CNC MULTI-TASKING TURNING CENTER
Have one to sell?
ConditionUsed
1 available
THIS 2016 INTEGREX i-400SW HAS A SMOOTH X CONTROL, 60" CENTERS, 2ND SPINDLE C AXIS, 1000 PSI COOLANT THRU, PROBE AND SEVERAL TOOLHOLDERS.
SPECIFICATIONS:
SWING OVER BED 25.9"
TURNING DIAMETER 25.9"
TURNING LENGTH 59.8"
DISTANCE BETWEEN SPINDLES 61.96"
SPINDLE NOSE 1, 2 A2 - 8",A2-8"
SPINDLE BORE DIAMETER 1, 2 4.41"/3.58"
BAR CAPACITY 1, 2 4",3"
SPINDLE SPEEDS 1, 2 3300,4000 RPM
SPINDLE HORSEPOWER 1, 2 40, 35 HP
B - AXIS HEAD INDEXING 240 DEGREE
B - AXIS MILLING SPINDLE SPEED 12,000 RPM
B - AXIS MILLING SPINDLE TAPER CAPTO C6
B - AXIS MILLING SPINDLE HP 30 HP
ATC FOR MILLING SPINDLE 110 ATC
TOOL DIAMETER 3.54", 4.92"
TOOL LENGTH 15.75"
TOOL WEIGHT 26.46 LBS.
X - AXIS TRAVEL X1, X2 24.21"
Z - AXIS TRAVEL Z1, Z2 62.4",
Y - AXIS TRAVEL Y1, Y2 9.84"
C - AXIS INDEXING 1, 2 0.0001, 0.0001 DEGREE
W - AXIS TRAVEL SUB SPINDLE 61.96"
RAPID TRAVERSE RATES X1, X2 1969 IPM
RAPID TRAVERSE RATES Y1, Y2 1575 IPM
RAPID TRAVERSE RATES Z1, Z2 1969 IPM
MACHINE WEIGHT 39,380 LBS.
MAZATROL SMOOTHX CNC CONTROL
2ND AUXILLARY FUNCTION
2ND SPINDLE C AXIS W/C1-C2 .0001DEGREE INCREMENTS
3-D COORDINATE ROTATION
AUTO TLM
COMPARISON STOP
CYLINDRICAL & POLAR COORDINATE
EIA 3-D COMP
EIA HELICAL TAP
EIA PATTERN CYCLE
EIA/ISO PROGRAMMING
EXT DATA I/O
FLASH TOOL
G00 SLOPE CONSTANT
G54.1
GEOMETRIC
HIGH SMOOTHING CONTROL
HIGH SPEED
INCH/METRIC
INVERSE TIME FUNCTION
LOSMUS GALLIED PLUS MIST COLLECT SYSTEM
MAZAK SUPERFLOW VARIABL V8M 1000 PSI HIGH PRESSURE COOLANT
POLAR COODINATE INPUT
RENISHAW WORK MEASUREMENT SYSTEM OMP60M PROBE
ROTATION
ROT-AXIS SHAPE COMP.
SCALING SHAPE COMPENSATION
SPIRAL SUB C-AXIS CONTROL
SYNC. TAPP MILL HEAD THREAD
TILTED WORKPLANE
VARIABLE 600 SETS
**175 CAPTO TOOLHOLDERS INCLUDED!!!!**
