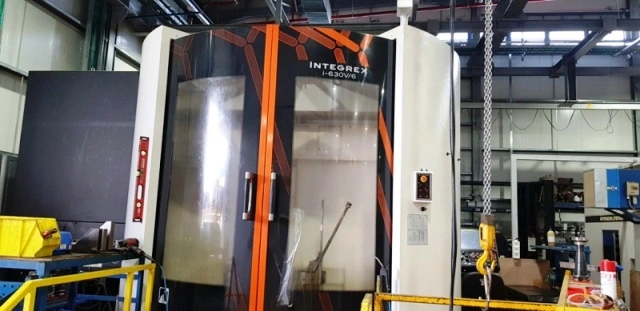

MAZAK INTEGREX i-630V6 II
Have one to sell?
ConditionUsed
1 available
THIS 2017 INTEGREX i-630V/6 IS A FULL 5 AXIS 2 PALLET VERTICAL WITH A 43 TOOL ATC, 10000 RPM SPINDLE WITH MAZATROL SMOOTH X CONTROL.
MAZAK INTEGREX i-630V/6
NEW 2017
SPECIFICATION:
MAXIMUM MACHINING DIAMETER 41.340"
MAXIMUM MACHINING LENGTH 39.370"
TURNING SPINDLE CHUCK SIZE 32"
MAXIMUM SPEED 550 RPM
MILLING SPINDLE - B-AXIS TRAVEL 150°
MAGAZINE CAPACITY 43
MAXIMUM SPEED 10000 RPM
MOTOR OUTPUT (40 ED RATING) 50 HP / 37 KW
X AXIS TRAVEL 56.10"
Y AXIS TRAVEL 41.34"
Z AXIS TRAVEL 41.34"
C-AXIS 0.0001 DEGREE INCR. (TABLE)
B-AXIS 0.0001 DEG/CNTRING (REQ. EIA/ISO)
Additional equipment - included
TOOL EYE (AUTOMATIC)
B)CYLINDRICAL & POLAR COORDINATE (EIA)
B)MILL-SPINDLE SYNCHR. TAPPING(W/O TOOL)
CHIP-CONVYR REAR RIGHT DISPO.(CONSEP-1)
F)TOOL RADIUS COMPENSATION / 5-AXIS
SIGNAL TOWER (3 COLORS LIGHTS,SQUARE)
TOUCH SENSOR (RMP600) RADIO TYPE ?????
630MM SQ.LOCATION BORE TAP PALLET(1 PCE)
EIA DYNAMIC COMPENSATION 2 (INCLUDED 1)
MAXIMUM PROGRAM SIZE : 8MB
MILL TURNING (MAZATROL)
WORKPIECE AIR BLAST
5-AXIS MACHINING PACKAGE FOR SMOOTHX
80 TOOL MAGAZINE
HI-PRESS COOLANT THRU SYS (15KG(213PSI))
6 MONTH WARRANTY
DIA.800MM LOCATION BORE TAP PALLET(1PCE)
HI-TORQUE MILLING SPINDLE SPEED 5000 RPM
5-AXIS MACHINING PACKAGE FOR SMOOTHX
DESCRIPTION
F)EIA/ISO FUNCTION SIMULTANEOUS 5 AXES
F)TOOL TIP POINT CONTROL /SIMULT. 5 AXES
FINE SPLINE"TERPOLATION (EIA)
5-AXIS SPLINE"INTERPOLATION
ONE SET OF ADJUSTING TOOLS
FOUNDATION KIT(LEVELING BLOCK)
MAZAK STANDARD COLOR (F WHITE/S BLACK)
THE SAFETY MEASURES ON WORLDWIDE LEVEL
STANDARD TOOLING PACKAGE
POWER TRANSFORMER FOR OTHER MARKETS
EQUIPPED WITH:
MAZATROL SMOOTHX CNC
19" COLOR LCD (TOUCH SCREEN)
2 PALLET CHANGER
FLOOD COOLANT SYSTEM
WORK LIGHT
SPINDLE CHILLER UNIT
PREP. FOR MAZAK MONITORING SYS.-B RMP600
MAZA-CHECK
ABSOLUTE POSITIONING SYS (LINEAR AXES)
SAFETY COVER FOR 2 PALLET CHANGER
MANUAL PULSE GENERATOR(WIRED/DETACHABLE)
MANUAL ROTATION OF 2PC LOADING STATION
HYDRAULIC PRESSURE"TERLOCK
COOLERS FOR BALL SCREW (X,Y,Z-AXIS)
ROLLER GUIDES
AIR THROUGH SPINDLE SYSTEM(SPNDL STOP)
NIAGARA COOLANT (RECOMMENDED EQUIPMENT)
OPERATOR DOOR"TERLOCK WITH LOCK-SWITCH
AUTO POWER ON/OFF + WARM-UP
ATC AUTO RECOVERY
APC AUTO RECOVERY
NUMBER DISPLAY MG PANEL (N/A TOOL ID)
ENCLOSED COOLANT & SPLASH COVER
SMOOTH STANDARD SOFTWARE
USER MACRO (COMMON VARIABLES:600 PAIRS)
MAZAK TAPPING/BORING TORNADO (MAZATROL)
MAZAK TAPPING/BORING TORNADO (EIA/ISO)
EIA/ISO CODE"PUT FUNCTION (STANDARD)
G37.AUTO TLM (LASER ROT.TOOL MEAS.REQ.)
ADD. EIA/ISO FUNCTIONS (REQ. EIA/ISO)
INVERSE TIME FEED
SEQUENCE NUMBER COMPARISON STOP FUNCTION
TILTED WORKING PLANE
BACKGROUND TOOL PATH CHECK
3-D COORDINATE CONVERSION
ADD. WORKPIECE COORDINATE SYS. 300-PAIRS
THREAD CUTTING FUNCTION
POLAR COORDINATES"PUT (EIA)
DIRECT ENTRY OF DRAWINGS DIMENSIONS
EIA PATTERN CYCLE (GRID, ARC)
USB I/F (1-PORT)
LAN PORT
SD MEMORY I/F(1-PORT) + USB I/F(1-PORT)
RELOCATION DETECTOR
