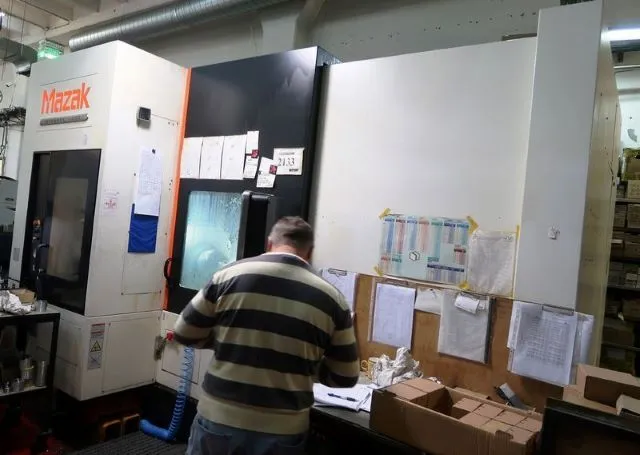

MAZAK INTEGREX j-300

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
INTEGREX j-300
Year:
2012
Stock #:
5440
Status:
For Sale
Serial #:
241324

Description

THIS INTEGREX j-300 HAS A MATRIX NEXUS CONTROL, 10" HYDRAULIC CHUCK WITH 3" THROUGH HOLE, COOLANT THRU SPINDLE AND TAILSTOCK.

Maximum Swing25.2"640.08 mm
Max Turning Diameter19.69"500.13 mm
Main Spindle Bore/Max Bar Capacity3.46/ 3.13.46/ 3.1
Tail Stock/Sub SpindleTail StockTail Stock
Maximum Cutting Length24.76"628.9 mm
X-Axis Travel (X1, X2, X3)24.2124.21
Z-Axis Travel (Z1, Z2, Z3)27.3627.36
Y-Axis Travel (Y1, Y2, Y3)10.2410.24
W-Axis Travel Sub Spindle24.88 in
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.46"87.884 mm
Main Spindle Maximum Bar Work3.1"78.74 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)2525
ATC Magazine Capacity2020
B-Axis Travel220 DEGREES220 DEGREES
B-Axis Milling Spindle Speed12,000 RPM12000 rpm
B-Axis Milling Spindle Horse Power3030
Chip ConveyorYesYes
Coolant Thru Milling HeadYesYes
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)

SPECIFICATIONS:
MAX. SWING 25.20"
MAX. MACHINING DIA. 19.690"
MAX. BAR WORK CAPACITY 3.1"
MAX. MACHINING LENGTH 24.760"
MAIN CHUCK SIZE 10"
SPINDLE 25.5"
MAX. SPEED 4000 RPM
MOTOR OUTPUT (40 ED RATING) 25 HP
MILLING SPINDLE:
B-AXIS TRAVEL 220 DEG.
MAGAZINE CAPACITY 20
MAX. SPEED 12,000 RPM
MOTOR OUTPUT (40 ED RATING) 30 HP
TRAVEL X-AXIS 24.21"
TRAVEL Y-AXIS 10.24"
TRAVEL Z-AXIS 27.36"
TRAVEL W-AXIS 24.88"

MAZATROL MATRIX NEXUS CONTROL
10"3-JAW CHUCK
VERSATILE MILL SPINDLE INDEXING (B-AXIS) 30-190 DEG.
HIGH SPEED, HIGH-TORQUE MILLING SPINDLE
AVAILABLE SPINDLE CONNECTIONS (HSK A63/CAPTO C6/KM63)
LARGE TRUE Y-AXIS DESIGN
LARGE TOOL MAGAZINES TO REDUCE SETUP TIME
PROGRAMMABLE NC TAILSTOCK
COOLANT THRU MILLING SPINDLE
CHIP CONVEYOR
