MAZAK M-5N 2000
Have one to sell?
ConditionUsed
1 available

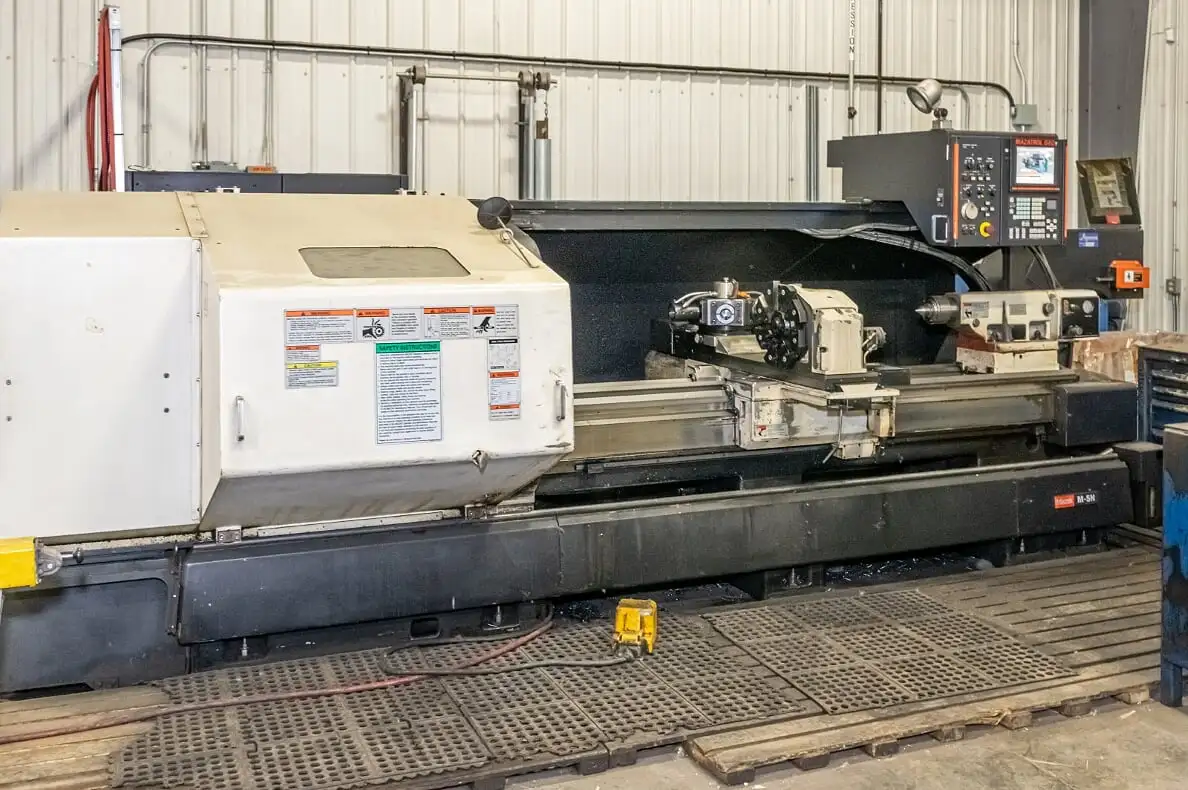

THE M-5 FLATBED LATHE HAS 80" CENTERS WITH A 7.1" SPINDLE BORE OPTION, A REAR CHUCK AND MAZATROL FUSION 640T CONTROL.
SPECIFICATIONS:
SWING 24"
MACHINING LENGTH 81.9"
# AXIS 2
CHUCK SIZE 15"
POWER 30 HP
MAX RPM 2,200 RPM
X-AXIS TRAVEL 22"
Z-AXIS TRAVEL 80.9"
TAILSTOCK YES
RAPID TRAVERSE (X/Z) 394 IN/MIN.
DIMENSIONS 221" X 94.5" X 86.1"
WEIGHT 14,740 LB
MAZATROL FUSION 640T
REAR CHUCK
7.1" SPINDLE BORE OPTION
REAR CHUCK
GEARED HEADSTOCK
FLATBED DESIGN
CHIP CONVEYOR
THE M-5 FLATBED LATHE HAS 80" CENTERS WITH A 7.1" SPINDLE BORE OPTION, A REAR CHUCK AND MAZATROL FUSION 640T CONTROL.
Imperial
| Max. Swing | 24" |
| Max Turning Diameter | 22.8" |
| Spindle Bore/Max Bar Capacity | 7.1 |
| Z Travel | 80.9" |
| X Travel | 22" |
| Machining Length | 81.9" |
| Chuck Size | 18" |
| Chuck Type | Air |
| Spindle Motor | 30 hp |
| Spindle Speeds (RPM) | 2200 |
| Spindle Bore/Bar Capacity | 7.1 in |
| Max. Bar Capacity | 7.1" |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Rear Chuck | Yes |
| Control | CNC (MAZATROL FUSION 640T) |
| Dimensions | 221" X 94.5" X 86.1" |
| Weight | 14,740 LB |
SPECIFICATIONS:
SWING 24"
MACHINING LENGTH 81.9"
# AXIS 2
CHUCK SIZE 15"
POWER 30 HP
MAX RPM 2,200 RPM
X-AXIS TRAVEL 22"
Z-AXIS TRAVEL 80.9"
TAILSTOCK YES
RAPID TRAVERSE (X/Z) 394 IN/MIN.
DIMENSIONS 221" X 94.5" X 86.1"
WEIGHT 14,740 LB
MAZATROL FUSION 640T
REAR CHUCK
7.1" SPINDLE BORE OPTION
REAR CHUCK
GEARED HEADSTOCK
FLATBED DESIGN
CHIP CONVEYOR
