MAZAK M-4N CNC TURNING CENTER (Flat Bed)
Have one to sell?
ConditionUsed
1 available

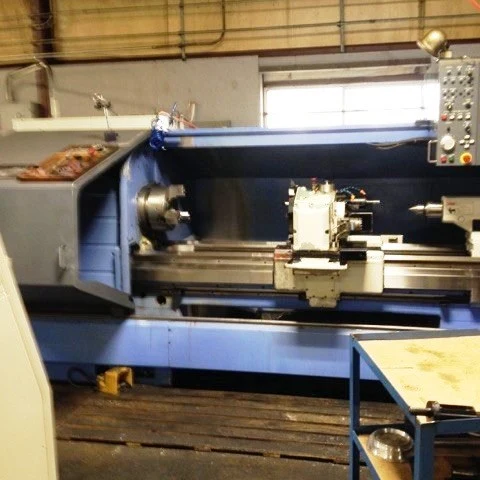

THE M-4N IS A 60" FLATBED WITH AN 8 STATION TURRET IN FRONT AND 6 IN REAR, 12" KITAGAWA HYDRAULIC CHUCK AND TAILSTOCK.
SPECIFICATIONS:
MAXIMUM SWING 22"
MAXIMUM SWING OVER CROSS SLIDE 11"
MAXIMUM CUTTING DIAMETER 26"
DISTANCE BETWEEN CENTERS:
40" UNIVERSAL 39.75"
60' UNIVERSAL 59.85"
SPINDLE NOSE A2 8"
SPINDLE BORE 3.15"
SPINDLE SPEED 5-2,200 RPM
NUMBER OF SPEED RANGES 3
SPINDLE HORSEPOWER 20 HP.
TYPE OF TURRETS/NUMBER OF TOOLS
FRONT VERTICAL DISK/ 8
REAR BORING/ 6
TURNING & FACING TOOL SIZE 1" X 1"
BORING BAR MAX. DIA. 2"
X AXIS TRAVEL 14.37"
Z AXIS TRAVEL
40" UNIVERSAL 40.2"
60" UNIVERSAL 60.2"
X AXIS RAPID TRAVERSE 394 IPM
Z AXIS RAPID TRAVERSE 472 IPM
TAILSTOCK SPINDLE CENTER MT #5
TAILSTOCK SPINDLE DIAMETER 3.34"
TAILSTOCK SPINDLE TRAVEL 5.12"
FLOOR SPACE: (W X L)
40" UNIVERSAL 114" X 171.5"
60" UNIVERSAL 114" X 191.7"
MACHINE HEIGHT 77.3"
MACHINE WEIGHT:
40" UNIVERSAL 11,500 LBS.
60" UNIVERSAL 12,790 LBS
EQUIPPED WITH:
MAZATROL T-PLUS (CNC CONTROL)
STEADY RESTS---(MANUAL)
VELOCITY & FEEDRATE CONTROL (VFC)
TOOL PATH STORAGE (TPS),
COMPUTER LINK FOR MAZATROL PROGRAM
FLEX PRINT CAPABILITY AND LADDER MONITOR.
COOLANT SYSTEM (32 PSI/ 4 GPM)
12" DIA. HYDRAULIC THRU HOLE CHUCK PACKAGE:
KITAGAWA MODEL NO. B 12A0815 AND CYLINDER (DRAW TUBE I.D. = 2.56")
HYDRAULIC TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE MANUALS
2 AVAILABLE (1) 40" and (1) 60"
