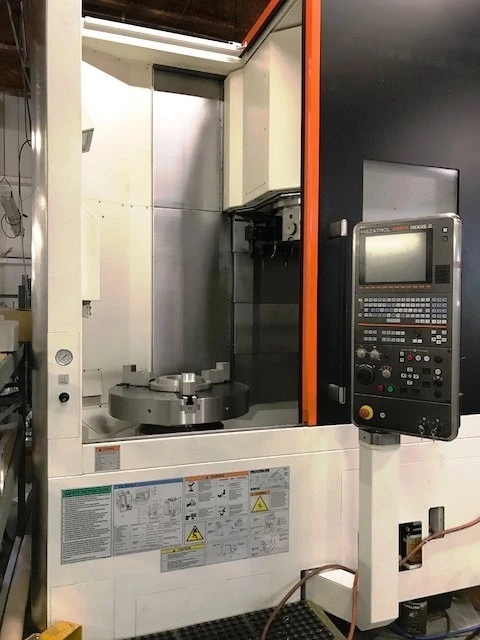

MAZAK MEGATURN NEXUS 900M CNC VTL w/ 30" CHUCK
Have one to sell?
ConditionUsed
1 available
THIS 2015 MEGATURN 900M HAS A 30" CHUCK, SWINGS 40", FULL C AXIS, 12 STATION TURRET AND MATRIX 2 CONTROL.
SPECIFICATIONS:
CHUCK DIAMETER 30" CHUCK
MAXIMUM SWING 39.7"
MAXIMUM CUTTING DIAMETER 36.22"
MAXIMUM CUTTING HEIGHT 31.60"
DISTANCE FROM TABLE TOP
TO TURRET EDGE FACE 6.02" - 40.55"
MAX. WORKPIECE WEIGHT 6614 LBS.
SPINDLE NOSE A2-15"
MAX. TORQUE 2696 FT/LBS.
SPINDLE TRAVEL 360,000 N/C CONTOURING
SPINDLE SPEEDS 1250 RPM
TABLE HORSE POWER 40/30 HP AC
TRAVEL (C-AXIS) 360,000 POSITION
TRAVEL (Z-AXIS) 34.49"
TRAVEL (X-AXIS) 18.6"
RAPID TRAVERSE RATE X, Z 945/945 IPM
RAPID TRAVERSE RATE C 20 RPM
TURRET CONFIGURATION 12 STATION VDI
MILLING SPINDLE MOTOR 10 HP AC
MILLING SPINDLE RPM 4000 RPM
MAX TORQUE/MILL SPINDLE 70.2 FT/LBS.
MACHINE DIMS 93.5" X 152" X 134"
MACHINE WEIGHT 32,000#
MAZATROL MATRIX 2 CONTROL
HYDRAULIC CHUCK PREP
MAYFRAN MAGSEP MAGNETIC SCRAPER CONVEYOR
WITH 60" DISCHARGE HEIGHT FROM KITAGAWA N-32VA15 CHUCK PKG
W/ Y-2035RE CLOSED CYLINDER
ALL AVAILABLE MANUALS
MFG 3/2015
THIS 2015 MEGATURN 900M HAS A 30" CHUCK, SWINGS 40", FULL C AXIS, 12 STATION TURRET AND MATRIX 2 CONTROL.
Imperial
| Table Dia | 30" |
| Maximum Swing | 39.7" |
| Maximum Turning Diameter | 36.22" |
| Maximum Turning Height | 31.6 |
| Table Weight Capacity | 6,614 lb |
| Vertical Travel of Ram, Z-Axis | 34.49" |
| Horizontal Railhead Travel, X-Axis | 18.6 |
| Main Table Motor | 40/ 30 |
| Live Spindle Motor | 10 |
| Live Spindle Speed, 2-Ranges | 4000 |
| C-Axis Contouring | 360,000 POSITION |
| Automatic Tool Changer | 12 |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 152" X 134" X 93.5" |
| Weight | 32,000 |
SPECIFICATIONS:
CHUCK DIAMETER 30" CHUCK
MAXIMUM SWING 39.7"
MAXIMUM CUTTING DIAMETER 36.22"
MAXIMUM CUTTING HEIGHT 31.60"
DISTANCE FROM TABLE TOP
TO TURRET EDGE FACE 6.02" - 40.55"
MAX. WORKPIECE WEIGHT 6614 LBS.
SPINDLE NOSE A2-15"
MAX. TORQUE 2696 FT/LBS.
SPINDLE TRAVEL 360,000 N/C CONTOURING
SPINDLE SPEEDS 1250 RPM
TABLE HORSE POWER 40/30 HP AC
TRAVEL (C-AXIS) 360,000 POSITION
TRAVEL (Z-AXIS) 34.49"
TRAVEL (X-AXIS) 18.6"
RAPID TRAVERSE RATE X, Z 945/945 IPM
RAPID TRAVERSE RATE C 20 RPM
TURRET CONFIGURATION 12 STATION VDI
MILLING SPINDLE MOTOR 10 HP AC
MILLING SPINDLE RPM 4000 RPM
MAX TORQUE/MILL SPINDLE 70.2 FT/LBS.
MACHINE DIMS 93.5" X 152" X 134"
MACHINE WEIGHT 32,000#
MAZATROL MATRIX 2 CONTROL
HYDRAULIC CHUCK PREP
MAYFRAN MAGSEP MAGNETIC SCRAPER CONVEYOR
WITH 60" DISCHARGE HEIGHT FROM KITAGAWA N-32VA15 CHUCK PKG
W/ Y-2035RE CLOSED CYLINDER
ALL AVAILABLE MANUALS
MFG 3/2015
