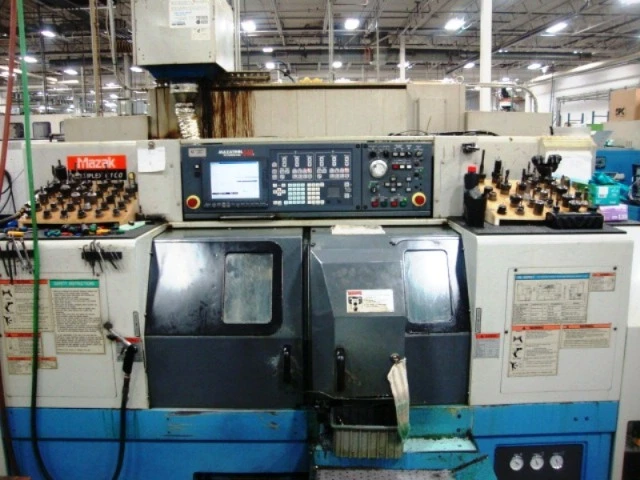

MAZAK MULTIPLEX 6100 TWIN SPINDLE CNC TURNING CENTER

MAZAK MULTIPLEX 6100 TWIN SPINDLE CNC TURNING CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
MULTIPLEX 6100
Year:
2002
Stock #:
4162
Status:
For Sale
Serial #:
198558

Description

THIS MULTIPLEX 6100 HAS AN LNS QUICKLOAD BARFEEDER, 1000 PSI SUPER FLOW COOLANT THRU,, C-AXIS AND FUSION 640T CONTROL.

Maximum Swing9.06"230.12 mm
Max Turning Diameter9.06"230.12 mm
Main Spindle Bore/Max Bar Capacity2.4/ 2.02.4/ 2.0
Tail Stock/Sub SpindleN/AN/A
Distance Between Spindles40.06"1,017.5 mm
X-Axis Travel (X1, X2, X3)7.87", 7.87"7.87", 7.87"
Z-Axis Travel (Z1, Z2, Z3)14.4", 14.4"14.4", 14.4"
C-Axis Indexing (1, 2).0001.0001
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.4"60.96 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed6,000 RPM6,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)2020
Number of Turrets22
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 255
Bar FeedYesYes
Chip ConveyorYesYes
Milling Spindle Synchronous TappingYesYes
Tool Eye Automatic Front SpindleYesYes
Tool Eye Automatic Second SpindleYesYes
High Pressure Coolant System (PSI)10001000
(Multiplex) Standard Chuck Dia. Main Spindle (R)88
(Multiplex) Standard Chuck Dia. Main Spindle (L)88
(Multiplex) Stroke of Z-Axis (L-R)14.414.4
ControlCNC (MAZATROL FUSION 640T)CNC (MAZATROL FUSION 640T)
Dimensions65” X 118” X 82.3”65” X 118” X 82.3”

SPECIFICATIONS:
TRAVEL X---AXIS (L&R)                 7.87”
TRAVEL Z---AXIS (L&R)                 14.4”
RAPID TRAVERSE:  X---AXIS             1181 IPM
                 Z---AXIS             1299 IPM
                 C---AXIS             400 IPM
MAX. SWING                            9.06”
STANDARD CUTTING DIAMETER             9.06”
MAX. BAR DIAMETER                     2”
DISTANCE BTW. SPINDLE FACES           40.06” (BOTH HEADS)
MIN.  ISTANCE BTW. SPINDLE FACES      10.15”
SPINDLE BORE                          2.4”
SPINDLE SPEED                         6,000 RPM’
SPINDLE INDEXING (C---AXIS)           0.001” 360,000 POS.
SPINDLE MOTOR                         20 HP
TURRET TOOLS                          24 (12X2)
TURRET INDEX TIME                     0.18 SEC.
TOOL HOLDER SHANKS                    MODIFIED VDI
MILLING SPINDLE (L&R) SPINDLE SPEED   4,500 RPM
SPINDLE MOTOR                         5 HP
MAX. DRILL                            0.63” MAX.
END MILL                              0.63”
MAX. TAP                              ½ UNC
MACHINE FLOOR SPACE                   65”X118”X82.3”
MACHINE WEIGHT                        14,100 LBS

MAZATROL FUSION 640T CONTROL
4’ LNS QUICKLOAD SERVO S2 BAR FEED SYSTEM
EIA/ISO
PCMCIA INTERFACE (2---SLOT)
3.5” FDD
NETWORK INTERFACE (FOR LAN & MODEM) 2 GB
MILLING---SPINDLE SYNCHRONOUS TAPPING (L&R)
C---AXIS (L&R)
TOOL PRESSETERS (L&R)
CHIP CONVEYOR
WORKPIECE UNLOADING PACKAGE
TURRET AIR BLAST (L&R)
PREP FOR 1000 PSI COLLANT (L&R)
OVERLOAD DETECTOR (L&R)
MAZAK SUPER FLOW I HIGH PRESSURE COLLANT 1000 PSI
BARFEED INTERFACE
TORIT DRYFLO
ALL AVAILABLE MANUALS
