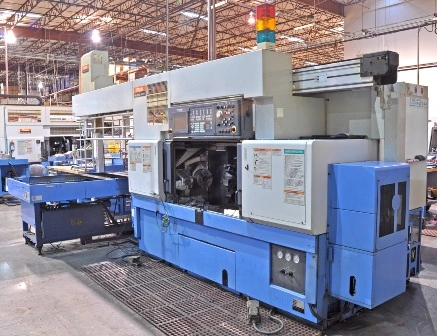

MAZAK MULTIPLEX 6200 MULTI AXIS LATHE

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
MULTIPLEX 6200
Year:
2001
Stock #:
2650
Status:
For Sale
Serial #:
151865

Description

MULTIPLEX 6200 WITH GL-100F PITCH FEED ROBOT GANTRY WITH FUSION 640, 4000 RPM ROTARY TOOL SPINDLE SPEED AND HIH POWER COOLANT THRU.

Maximum Swing12.5"317.5 mm
Max Turning Diameter10.24"260.1 mm
Main Spindle Bore/Max Bar Capacity2.4/ 2.02.4/ 2.0
Tail Stock/Sub SpindleN/AN/A
Distance Between Spindles46.85"1,190 mm
X-Axis Travel (X1, X2, X3)9.06, 9.069.06, 9.06
Z-Axis Travel (Z1, Z2, Z3)17.25, 19.3717.25, 19.37
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.4"60.96 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Number of Turrets22
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 240004000
Turret Rotary Tool Horse Power 1, 255
Chip ConveyorYesYes
Coolant Thru Milling HeadYesYes
Gantry SystemYesYes
(Multiplex) Standard Chuck Dia. Main Spindle (R)88
(Multiplex) Standard Chuck Dia. Main Spindle (L)88
(Multiplex) Stroke of Z-Axis (L-R)17.25"/19.37"17.25"/19.37"
ControlCNC (MAZATROL FUSION 640)CNC (MAZATROL FUSION 640)
Weight18,000 LBS18,000 LBS

SPECIFICATIONS:
MAX SWING DIA 12.5"
STANDARD CUTTING DIAMETER 10.24"
MAX DISTANCE BETWEEN SPINDLES 46.85"
MAX BAR CAPACITY 2"
SPINDLE NOSE/SPINDLE THRU HOLE DIA A2-6" (2.4")
SPINDLE SPEED 35-5000 RPM
MAIN SPINDLE MOTOR 30 HP AC
TURRET TYPE 12 DRUM TURRET X 2
ROTARY TOOL SPEED 4500 RPM
ROTARY TOOL HORSEPOWER 5 HP AC
NO OF TOOLS 12/12
STROKE OF X AXIS 9.06"
STROKE OF Z AXIS (L-R) 17.25"/19.37"
SPINDLE INDEXING INCREMENTS .001 DEGREE
RAPID TRAVERSE RARE (X & Z) 1200/1300 C-AXIS 400 IPM
MACHINE WEIGHT 18,000 LBS

MAZATROL FUSION 640 CONTROL
GL100F PITCH FEED ROBOT CONVEYOR D3 HAND
4,000 RPM ROTARY TOOL SPINDLE SPEED
AUTO POWER OFF BREAKER TRIP
AUTO PECKING DRILL CYCLE WITH LOAD DETECTION
SIGNAL TOWER WITH 3 COLOR LIGHTS
HINGE TYPE CHIP CONVEYOR
HIGH POWER COOLANT 105 PSI. WITH ADDITIONAL RESERVOIR
EIA/ISO PROGRAMMING OPTION
POLYGON MACHINING SOFTWARE
TOOL LIST  (NEEDS TO BE VERIFIED)
OD TURNING-6
OD FACING-1
COVER PLUG-6
U-DRILL 42 MM BORE-2
BORING BAR  1-1/4 ID-6
DRIVEN VERTICAL  ER32-3
DRIVEN HORIZONTAL  ER32-3
