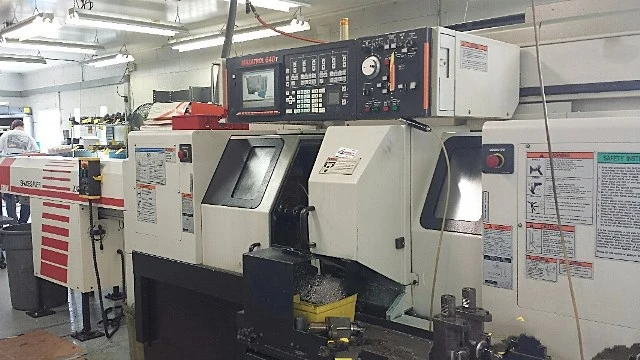

MAZAK MULTIPLEX 6200Y CNC TURNING AND MILLING

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
MULTIPLEX 6200Y
Year:
2005
Stock #:
4009
Status:
For Sale

Description

MULTIPLEX 6200Y WITH FUSION 640T CONTROL, 2 COLLET CHUCKS, SMW BARFEEDER AND WORKPIECE UNLOADING PACKAGE.

Maximum Swing12.5"317.5 mm
Max Turning Diameter10.24"260.1 mm
Main Spindle Bore/Max Bar Capacity2.4/ 2.02.4/ 2.0
Tail Stock/Sub SpindleN/AN/A
Distance Between Spindles46.85"1,190 mm
X-Axis Travel (X1, X2, X3)9.06, 9.069.06, 9.06
Z-Axis Travel (Z1, Z2, Z3)17.25, 19.3717.25, 19.37
Y-Axis Travel (Y1, Y2, Y3)+/- 2"+/- 2"
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.4"60.96 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3030
Number of Turrets22
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 255
Bar FeedYesYes
Chip ConveyorRearRear
Milling Spindle Synchronous TappingYesYes
Coolant Thru Milling HeadYesYes
Workpiece Unloader & ConveyorYESYES
Multi Tap TransformerYesYes
(Multiplex) Standard Chuck Dia. Main Spindle (R)88
(Multiplex) Standard Chuck Dia. Main Spindle (L)88
Stroke of Y-Axis (Multiplex)+/- 2"+/- 2"
(Multiplex) Stroke of Z-Axis (L-R)17.25"/19.37"17.25"/19.37"
ControlCNC (MAZATROL FUSION 640T)CNC (MAZATROL FUSION 640T)
Weight18,000 LBS18,000 LBS

SPECIFICATIONS:
MAX. SWING DIA.                      12.5"
STANDARD CUTTING DIAMETER            10.24"
MAX. DISTANCE BETWEEN SPINDLES       46.85"
MAX. BAR CAPACITY                    2"
SPINDLE NOSE/ SPINDLE THRU HOLE DIA. A2-6"/ 2.4"
SPINDLE SPEED                        35-5000 RPM
MAIN SPINDLE MOTOR                   30 HP AC
TURRET TYPE                          12 DRUM TURRET X 2
ROTARY TOOL SPEED                    4500 RPM
ROTARY TOOL HORSEPOWER               5 HP AC
NO. OF TOOLS                         12 / 12
STROKE OF Y-AXIS                     +/- 2.00"
STROKE OF X- AXIS                    9.06"
STROKE OF Z -AXIS (L-R)              17.25"/19.37"
SPINDLE INDEXING INCREMENTS          .001 DEGREE
RAPID TRAVERSE RATE (X & Z)          1200/1300 C-AXIS 400 IPM
MACHINE WEIGHT                       18,000 LBS.

MAZATROL FUSION 640T CNC CONTROL
EIA/ISO OPTION PACKAGE
PCMCIA INT. 2-SLOT
3.5 FLOPPY
EIA/ISO
NETWORK INTERFACE
Y-AXIS CONTROL
(2) 8" 3-JAW KITAGAWA HYDRAULIC CHUCK PACKAGES
SYNCHRONIZED TAPPING ON MILLING HEAD (L & R)
DIRECT DRAWING INPUT
USED MACRO
600 MACRO VARIABLES
USER MACRO INTERUPT
WORK COORDINATE SELECT
POLAR COODINATE INPUT
EIA HELICAL
EIA COODINATE ROTATION
EIA HELICAL TAP
ENHANCED Y-AXIS MAZATROL
CHIP CONVEYOR REAR
 COOLANT THRU MILLING HEAD
ROTARY TOOLS
TOOL EYES (L/R)
WORKPIECE UNLOADING PACKAGE
MULTI TAP TRANSFORMER
ALL AVAILABLE STANDARD TURNING TOOL HOLDERS
ALL AVAILABLE MANUALS
