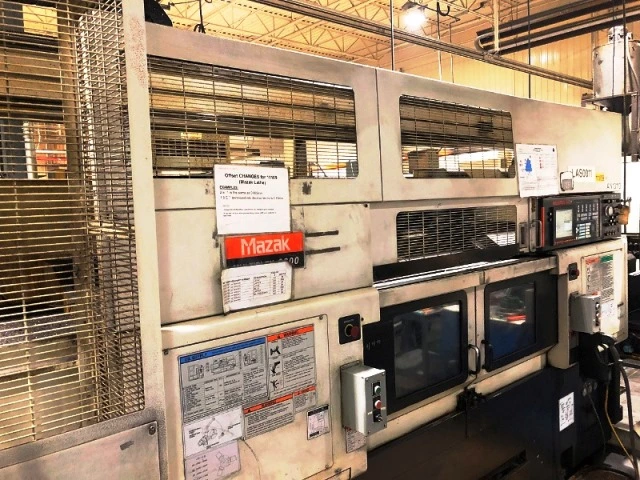

MAZAK MULTIPLEX 6300 W/GL-300 GANTRY ROBOT
Have one to sell?
ConditionUsed
1 available
THIS MULTIPLEX 6300 IS A TWIN SWINDLE, TWIN TURRET LATHE WITH A GL-300F GANTRY, FUSION 640 CONTROL 2-10" CHUCKS WITH 3" THROUGH HOLE AND 213 PSI COOLANT THU.
MAZAK MULTIPLEX 6300/ GL-300 GANTRY
TWIN SPINDLE, TWIN TURRET, LIVE TOOL, GANTRY LOAD
NEW 2010
SPECIFICATIONS:
MAXIMUM CUTTING DIAMETER 16"
DISTANCE BETWEEN CENTERS 24"
X-AXIS TRAVEL 12"
Z-AXIS TRAVEL 24"
SPINDLE BORE 3"
SPINDLE SPEED 4,000 RPM
SPINDLE MOTOR 30 HP
ROTARY TOOL MOTOR 10HP
SPINDLE NOSE A2-8
RAPID TRAVERSE 393/945 IPM
TURRET POSITIONS 12
SECOND TURRET POSITIONS 12
EQUIPPED WITH:
MAZAK MAZATROL 640T CNC CONTROL
FLEX GL300F GANTRY LOAD/ UNLOAD SYSTEM
LIVE MILLING
TWIN TURRET/TWIN SPINDLE
TOOL PRESETERS
HIGH PRESSURE THRU SPINDLE COOLANT
INTEGRATED CHIP CONVEYOR
PARTS CONVEYOR
(4) LIVE TOOL AND 5 STANDARD TOOL HOLDERS ON EACH TURRET
THIS MULTIPLEX 6300 IS A TWIN SWINDLE, TWIN TURRET LATHE WITH A GL-300F GANTRY, FUSION 640 CONTROL 2-10" CHUCKS WITH 3" THROUGH HOLE AND 213 PSI COOLANT THU.
Imperial
| Maximum Swing | 16.93" |
| Max Turning Diameter | 16" |
| Main Spindle Bore/Max Bar Capacity | 3.46/ 3.0 |
| Tail Stock/Sub Spindle | N/A |
| Distance Between Spindles | 24" |
| X-Axis Travel (X1, X2, X3) | 12"/ 12" |
| Z-Axis Travel (Z1, Z2, Z3) | 24"/ 24" |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Number of Turrets | 2 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Coolant Thru Milling Head | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Gantry System | Yes |
| (Multiplex) Standard Chuck Dia. Main Spindle (R) | 10 |
| (Multiplex) Standard Chuck Dia. Main Spindle (L) | 10 |
| (Multiplex) Stroke of Z-Axis (L-R) | 23.8/ 23.8 |
| Control | CNC (MAZAK MAZATROL 640T) |
MAZAK MULTIPLEX 6300/ GL-300 GANTRY
TWIN SPINDLE, TWIN TURRET, LIVE TOOL, GANTRY LOAD
NEW 2010
SPECIFICATIONS:
MAXIMUM CUTTING DIAMETER 16"
DISTANCE BETWEEN CENTERS 24"
X-AXIS TRAVEL 12"
Z-AXIS TRAVEL 24"
SPINDLE BORE 3"
SPINDLE SPEED 4,000 RPM
SPINDLE MOTOR 30 HP
ROTARY TOOL MOTOR 10HP
SPINDLE NOSE A2-8
RAPID TRAVERSE 393/945 IPM
TURRET POSITIONS 12
SECOND TURRET POSITIONS 12
EQUIPPED WITH:
MAZAK MAZATROL 640T CNC CONTROL
FLEX GL300F GANTRY LOAD/ UNLOAD SYSTEM
LIVE MILLING
TWIN TURRET/TWIN SPINDLE
TOOL PRESETERS
HIGH PRESSURE THRU SPINDLE COOLANT
INTEGRATED CHIP CONVEYOR
PARTS CONVEYOR
(4) LIVE TOOL AND 5 STANDARD TOOL HOLDERS ON EACH TURRET
