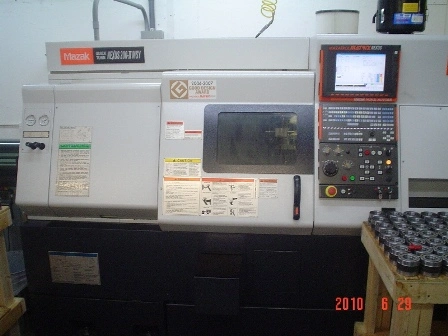

MAZAK QTN 200-II MSY

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 200-II MSY
Year:
2009
Stock #:
2443
Status:
For Sale
Serial #:
195658

Description

THIS QTN 200MSY HAS A MATRIX NEXUS CONTROL, 8" CHUCK WITH 2.56" BAR CAP, 213 PSI COOLANT THRU, PARTS CATCHER, 6" CHUCK ON SUB AND 2 COLLET CHUCKS.

Maximum Swing26.5"673.1 mm
Max Turning Diameter14.75"374.65 mm
Main Spindle Bore/Max Bar Capacity2.99/ 2.562.99/ 2.56
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide14.75"374.65 mm
Distance Between Spindles22.625"574.67 mm
X-Axis Travel (X1, X2, X3)99
Z-Axis Travel (Z1, Z2, Z3)22.6522.65
Y-Axis Travel (Y1, Y2, Y3)44
C-Axis Indexing (1, 2).001 N/C CONTOURING.001 N/C CONTOURING
W-Axis Travel Sub Spindle23 in
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3"76.2 mm
Main Spindle Maximum Bar Work2.56"65.024 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)3535
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size2.072.07
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1010
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 27.57.5
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
High Pressure Coolant System (PSI)213213
ControlCNC (MAZATROL MATRIX NEXUS)CNC (MAZATROL MATRIX NEXUS)
Weight11,330 LBS11,330 LBS

SPECIFICATIONS:
MAX. SWING 26.5"
MAX. TURNING DIA. 14.75"
SPINDLE BORE 3"
MAIN SPINDLE CHUCK SIZE 8"
MAIN SPINDLE C - AXIS .001 N/C CONTOURING
SPINDLE NOSE A2-6
MAX BAR CAPACITY 2.56"
SPINDLE SPEEDS 5000 RPM
X - AXIS 9"
Z - AXIS (BETWEEN CHUCK JAWS) 22.625"
Y - AXIS 4.00"
W - AXIS (SUB-SPINDLE) 23.00"
MIN. SPINDLE INDEXING .001 DEGREE
SUB SPINDLE CHUCK SIZE 6"
SUB SPINDLE SPEED 6000 RPM
SUB SPINDLE HORSE POWER 10 HP
RAPID ON SUB SPINDLE 1181 IPM
RAPID TRAVERSE X,Z 1181, 1299 IPM
RAPID TRAVERSE Y 826 IPM
C-AXIS 400 RPM
TURRET TYPE 12 TRT
ROTARY TOOL SPEED 25-4500 RPM
ROTARY TOOL HORSEPOWER 7.5 HP AC
MAIN MOTOR 35 HP AC
MACHINE WEIGHT 11,330 LBS.

MAZATROL MATRIX NEXUS CONTROL
213 PSI HIGH POWER COOLANT
TURNING HOLDER
BORING BAR HOLDER
2 V-TYPE MILL HOLDER
4 H-TYPE MILL HOLDER
2 ROYAL COLLET CHUCKS
8" & 6" 3 JAW CHUCKS
AUTOMATIC PARTS CATCHER
BARFEED INTERFACE
ATS ML 565 BARFEED
CHIP CONVEYOR - SIDE DISPOSAL/ HINGE TYPE
