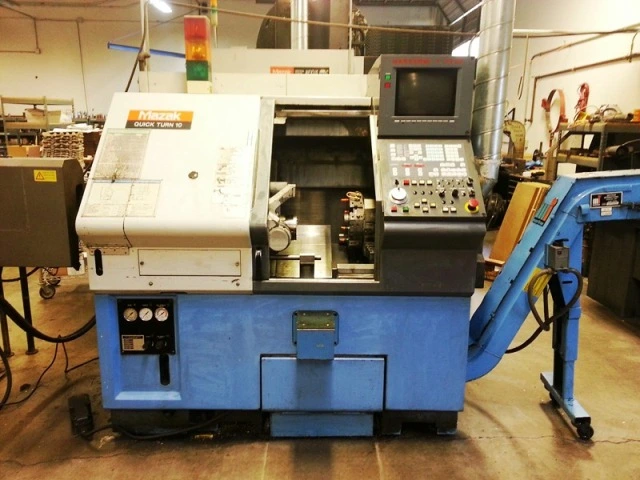

THIS QT 10 COMES WITH A LNS BARFEEDER, PARTS CATCHER AND CHIP CONVEYOR FOR ALL YOUR SMALLER PRODUCTION PARTS.
SPECIFICATIONS:
MAXIMUM SWING 11.81"
MAXIMUM CUTTING DIAMETER 6.30"
SPINDLE BORE 2.00" (1.97" EXACT)
MAXIMUM BAR WORK SIZE 1.57"
MAXIMUM CUTTING LENGTH 10.08"
X AXIS TRAVEL 3.75"
Z AXIS TRAVEL 11.8"
SPINDLE NOSE A2-5
SPINDLE SPEED 60 - 6000 RPM
NUMBER OF TURRET POSITIONS 12
TURRET TYPE DEDOGONAL DRUM
RAPID TRAVERSE
X-AXIS 1200 IPM
Z-AXIS 13.38 IN
TAILSTOCK CENTER MT # 4
STROKE OF TAILSTOCK QUILL 3.74 IN
MAIN MOTOR AC 10 HP
ELECTRICAL POWER SUPPLY 21.8 KVA
FLOOR SPACE REQUIREMENTS 79 IN X 52.4 IN
MACHINE WEIGHT 5960 LBS.
MAZATROL T PLUS CNC CONTROL
LNS QUICK LOAD BAR FEED
VARIOUS SPINDLE LINERS (.375, .500, .625, .875, 1.000)
CHICAGO COLLET CHUCK AND PADS
PARTS CATCHER
CHIP CONVEYOR
ALL AVAIALBLE TOOLING
ALL AVAIALBLE MANUALS
