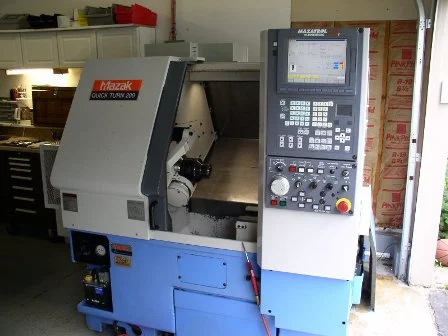

MAZAK QT 200

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
QT 200
Year:
1999
Stock #:
2554
Status:
For Sale
Serial #:
142435

Description

THIS QT 200 HAS A 6" CHUCK AND ATS 3J COLLET WITH 1.625" BAR CAP, TAILSTOCK AND A MAZATROL FUSION 640T CONTROL.

Max. Swing20.9"530.86 mm
Max Turning Diameter10"254 mm
Spindle Bore/Max Bar Capacity2"/ 1.625"2"/ 1.625"
Z Travel12.6"320.04 mm
X Travel7.6"193.04 mm
Chuck Size6"152.4 mm
Chuck TypeHydraullicHydraullic
Spindle Motor10 hp
Spindle Speeds (RPM)60006000
Spindle Bore2 in
Max. Bar Capacity1.625"41.275 mm
Turret Tool Positions1212
TailstockYesYes
ControlCNC (MAZATROL FUSION 640T)CNC (MAZATROL FUSION 640T)
Weight5400 LBS5400 LBS

SPECIFICATIONS:
SWING OVER BED 20.9"
MAX. MACHINING DIA. 10"
BAR CAPACITY 1 5/8"
SPINDLE SPEED RANGE 6000 RPM
TURRET POSITIONS 12
TAILSTOCK TRAVEL 4"
MOTOR POWER 10 HP
WEIGHT 5400 LBS.

MAZATROL 640T PC FUSION CONTROL
6" KITAGAWA CHUCK
ATS 3J COLLET
MANUAL TOOL PRESETTER
TAILSTOCK
MULTITAP TRANSFORMER
ALL TOOLING & MANUALS
