MAZAK QT 200MSY
CNC LATHES MULTI AXIS.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

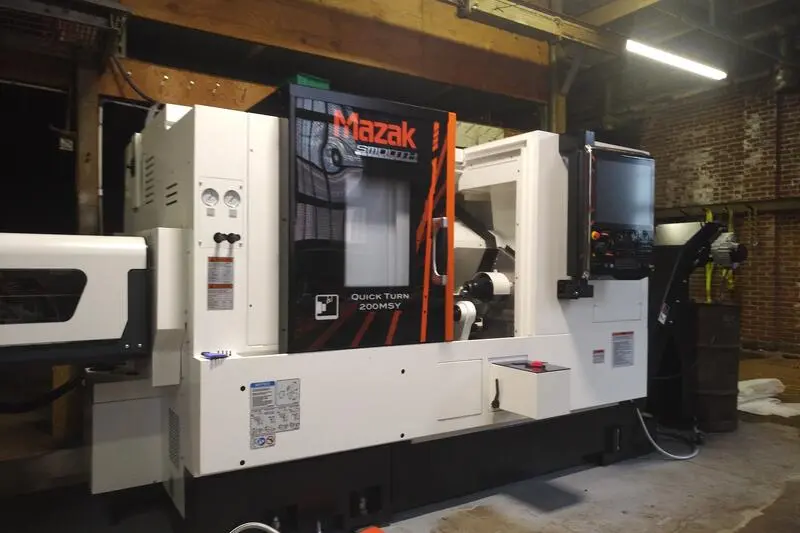

THIS 2020 QT 200MSY HAS A SMOOTH G CONTROL, AUTOMATIC PARTS CATCHER, LNS QUICK LOAD BARFEEDER, COLLET CHUCK AND 8" & 6" HYDRAULIC CHUCKS.
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.0/ 2.0 |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 22.7" |
| Distance Between Spindles | 22" |
| X-Axis Travel (X1, X2, X3) | 9 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.63 |
| Y-Axis Travel (Y1, Y2, Y3) | 4 |
| W-Axis Travel Sub Spindle | 23 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 2 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 10 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Available Live Tool Holders | 3 |
| Control | CNC (MAZATROL SMOOTH G) |
SPECIFICATIONS:
BED LENGTH 20"
MAXIMUM SWING 26.50"
MAXIMUM MACHINING DIAMETER 14.750"
SPINDLE BORE 3"
MAXIMUM BAR WORK CAPACITY 2"
MAXIMUM MACHINING LENGTH 22.701"
MAIN SPINDLE
CHUCK SIZE 8"
MAXIMUM SPEED 5000 RPM
MOTOR OUTPUT (30 MINUTE RATING) 35.0 HP
SECOND SPINDLE
CHUCK SIZE 6"
MAXIMUM SPEED 6000 RPM
MOTOR OUTPUT (30 MINUTE RATING) 10.0 HP / 8 KW
TURRET NUMBER OF TOOLS 12
MAXIMUM SPEED 6000 RPM
MOTOR OUTPUT (5 MINUTE RATING) 10.0 HP / 8 KW
X AXIS TRAVEL 9.00"
Y AXIS TRAVEL 4.00"
Z AXIS TRAVEL 22.63"
W AXIS TRAVEL 23.00"
SMOOTH G CONTROL
ROYAL PRODUCTS COLLET INSTALL
TOOL FOR QG-42 (PART# 44097)
AUTOMATIC PARTS CATCHER
(DIA. 3" X 4.7" X 5.5 LBS)
CHIP CONVEYOR SIDE 20"(500U) (HINGE TYPE)
LNS QUICK LOAD SERVO 80-S2 BARFEED
ADDITIONAL SET OF MANUALS
240V TO 480V MAIN BREAKER
ROYAL PRODUCTS A2-6, QG-65 Q/G
COMPACT COLLET CHUCK ONLY
ROYAL PRODUCTS MANUAL COLLET
INSTALL TOOL FOR QG-65
ROYAL PRODUCTS QUICK GRIP
COLLET FOR QG-65 COLLETS
(1) 1/4" DIA, (1) 9/16 HEX
3 LIVE TOOLS AND DOUBLE TOOL
MFG - 12/2019
