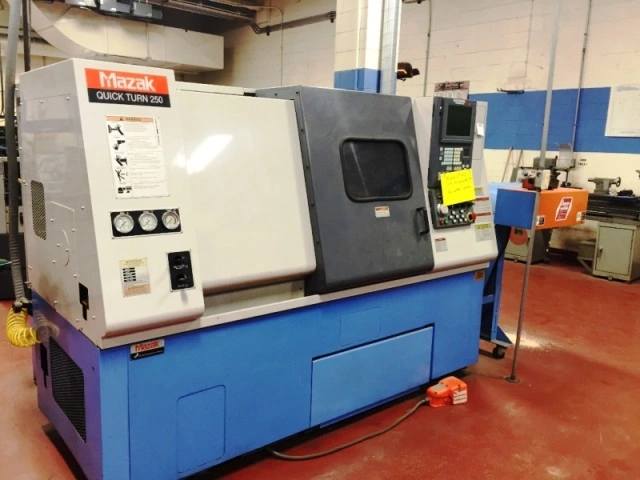

MAZAK QT 250
Have one to sell?
ConditionUsed
1 available
THE QT 250 IS EQUIPPED WITH AN 8" HYDRAULIC CHUCK WITH 2" BAR CAPACITY, TAILSTOCK, 4000 RPM SPINDLE AND MAZATROL FUSION 640T CNC CONVERSATIONAL CONTROL.
SPECIFICATIONS:
MAX. SWING 23.6"
MAX. CUTTING DIA. 15.7"
MAX SHAFT LENGTH 19.7"
SPINDLE BORE DIA. 2.44"
MAX BAR CAPACITY 2.0"
SPINDLE NOSE A2-6"
SPINDLE SPEEDS 40-4000 RPM
TAILSTOCK SPINDLE CENTER MT #4
TAILSTOCK SPINDLE TRAVEL 5.1"
TAILSTOCK BODY TRAVEL 18.1"
TURRET CONFIGURATION 12 TOOLS
X - AXIS 8.46"
Z - AXIS 20.1"
RAPID TRAVERSE
X - AXIS 1200 IPM
Z - AXIS 1300 IPM
MAIN MOTOR 25/20 HP AC
MAZATROL FUSION 640T CNC CONVERSATIONAL CONTROL
PROGRAMMABLE TAILSTOCK BODY AND QUILL
TOOL EYE
8" 3-JAW HYDRAULIC CHUCK
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
THE QT 250 IS EQUIPPED WITH AN 8" HYDRAULIC CHUCK WITH 2" BAR CAPACITY, TAILSTOCK, 4000 RPM SPINDLE AND MAZATROL FUSION 640T CNC CONVERSATIONAL CONTROL.
Imperial
| Max. Swing | 23.6" |
| Max Turning Diameter | 15.7" |
| Spindle Bore/Max Bar Capacity | 2.44/ 2 |
| Z Travel | 20.1" |
| X Travel | 8.46" |
| Machining Length | 19.7" |
| Chuck Size | 8" |
| Chuck Type | Hydraullic |
| Spindle Motor | 25 hp |
| Spindle Speeds (RPM) | 4000 |
| Spindle Bore/Bar Capacity | 2.44 in |
| Max. Bar Capacity | 2" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL FUSION 640T) |
SPECIFICATIONS:
MAX. SWING 23.6"
MAX. CUTTING DIA. 15.7"
MAX SHAFT LENGTH 19.7"
SPINDLE BORE DIA. 2.44"
MAX BAR CAPACITY 2.0"
SPINDLE NOSE A2-6"
SPINDLE SPEEDS 40-4000 RPM
TAILSTOCK SPINDLE CENTER MT #4
TAILSTOCK SPINDLE TRAVEL 5.1"
TAILSTOCK BODY TRAVEL 18.1"
TURRET CONFIGURATION 12 TOOLS
X - AXIS 8.46"
Z - AXIS 20.1"
RAPID TRAVERSE
X - AXIS 1200 IPM
Z - AXIS 1300 IPM
MAIN MOTOR 25/20 HP AC
MAZATROL FUSION 640T CNC CONVERSATIONAL CONTROL
PROGRAMMABLE TAILSTOCK BODY AND QUILL
TOOL EYE
8" 3-JAW HYDRAULIC CHUCK
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
