MAZAK QT 250 W/ BARFEEDER
Have one to sell?
ConditionUsed
1 available

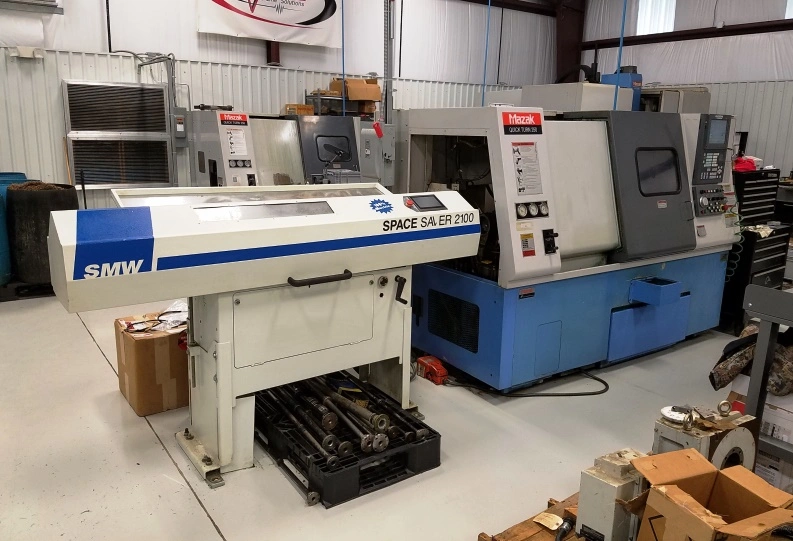

THIS QT 250 COMES WITH A BARFEEDER, ATS COLLET CHUCK, AUTOMATIC PARTS CATCHER AND MAZATROL FUSION 640 CONTROL.
SPECIFICATIONS:
MAX. SWING OVER BED 23.6"
MAX. CUTTING DIAMETER 15.7"
MAX. CUTTING LENGTH 19.7"
X-AXIS TRAVEL 8.5"
Z-AXIS TRAVEL 20.1"
SPINDLE BORE 2.4"
BAR CAPACITY 2"
SPINDLE SPEEDS 50 - 5000 RPM
SPINDLE MOTOR 20 HP
RAPID TRAVERSE 1181 IPM
NO. OF TOOL POSITIONS 12 TURRET
APPROX. DIMENSIONS 107" X 68" X 68"H
APPROX. WEIGHT 10,000 LBS
MAZATROL FUSION 640 CONTROL
ATS A6-S20H COLLET CHUCK
AUTOMATIC PARTS CATCHER (2"x5.9"L/6LBS)
SMW BARFEED SS2100R (JUST PURCHASED NEW INTERFACE FOR 8K)
ALL AVAILABLE MANUALS
-NOTE- CUT PEEK (HIGH TEMP PLASTIC) AND STAINLESS WITH IT.
LOTS OF TOOLING!
THIS QT 250 COMES WITH A BARFEEDER, ATS COLLET CHUCK, AUTOMATIC PARTS CATCHER AND MAZATROL FUSION 640 CONTROL.
Imperial
| Max. Swing | 23.6" |
| Max Turning Diameter | 15.7" |
| Spindle Bore/Max Bar Capacity | 2.44"/ 2" |
| Z Travel | 20.1" |
| X Travel | 8.5" |
| Machining Length | 19.7" |
| Chuck Type | Collet |
| Spindle Motor | 20 hp |
| Spindle Speeds (RPM) | 5000 |
| Spindle Bore/Bar Capacity | 2.4 in |
| Max. Bar Capacity | 2" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Parts Catcher | Yes |
| Bar Feed | Yes |
| Control | CNC (MAZATROL FUSION 640) |
| Dimensions | 107" X 68" X 68" |
| Weight | 10,000 LBS |
SPECIFICATIONS:
MAX. SWING OVER BED 23.6"
MAX. CUTTING DIAMETER 15.7"
MAX. CUTTING LENGTH 19.7"
X-AXIS TRAVEL 8.5"
Z-AXIS TRAVEL 20.1"
SPINDLE BORE 2.4"
BAR CAPACITY 2"
SPINDLE SPEEDS 50 - 5000 RPM
SPINDLE MOTOR 20 HP
RAPID TRAVERSE 1181 IPM
NO. OF TOOL POSITIONS 12 TURRET
APPROX. DIMENSIONS 107" X 68" X 68"H
APPROX. WEIGHT 10,000 LBS
MAZATROL FUSION 640 CONTROL
ATS A6-S20H COLLET CHUCK
AUTOMATIC PARTS CATCHER (2"x5.9"L/6LBS)
SMW BARFEED SS2100R (JUST PURCHASED NEW INTERFACE FOR 8K)
ALL AVAILABLE MANUALS
-NOTE- CUT PEEK (HIGH TEMP PLASTIC) AND STAINLESS WITH IT.
LOTS OF TOOLING!
