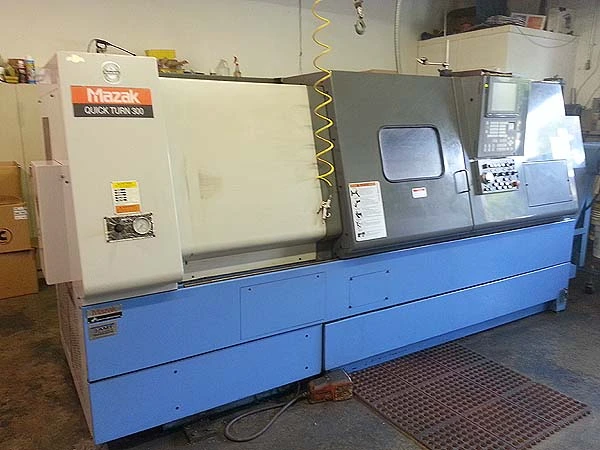

MAZAK QT 300L
Have one to sell?
ConditionUsed
1 available
THIS QT 300L FEATURES 40" CENTERS, FUSION 640 CONTROL, 10" CHUCK (2.75" BAR WORK) AND COLLET, TAILSTOCK.
SPECIFICATIONS:
MAX SWING OVER BED 23.64"
MAX SWING OVER CARRIAGE 16.14"
MAX TAILSTOCK POSITION 41"
MAX MACHINABLE CENTER DISTANCE 39.78"
STANDARD CHUCK SIZE 10"
X-AXIS TRAVELS 9.8"
Z-AXIS TRAVELS 39.78"
RAPID TRAVERSE RATE (X-AXIS) 787 IPM
RAPID TRAVERSE RATE (Z-AXIS) 787 IPM
NUMBER OF TURRETS 1
TOOL POSITIONS 16 TOTAL
SPINDLE BORE 3.15"
BAR CAPACITY 2.75"
SPINDLE NOSE A2-8
SPINDLE SPEED RANGE 30-3300 RPM
SPINDLE HORSEPOWER 30 HP
APPROXIMATE MACHINE DIMENSIONS 107" X 83"
APPROXIMATE MACHINE HEIGHT 69"
APPROXIMATE MACHINE WEIGHT 12,000 LBS
MAZATROL FUSION 640 CNC W/ CRT
10" 3-JAW POWER CHUCK
5C COLLET ATTACHMENT
BED MOUNTED TAILSTOCK W/PROGRAMMABLE BODY AND QUILL,
16 POSITION TOOL TURRET
BACKGROUND TOOL PATH CHECK
RS-232 FOR DNC INTERFACE
TOOL EYE SWING DOWN TOOL SETTING PROBE
CHIP CONVEYOR AND COOLANT SYSTEM.
THIS QT 300L FEATURES 40" CENTERS, FUSION 640 CONTROL, 10" CHUCK (2.75" BAR WORK) AND COLLET, TAILSTOCK.
Imperial
| Max. Swing | 23.64" |
| Max Turning Diameter | 15.7" |
| Spindle Bore/Max Bar Capacity | 3.15"/ 2.75" |
| Z Travel | 40" |
| X Travel | 9.8" |
| Machining Length | 39.78" |
| Chuck Size | 10" |
| Chuck Type | Hydraullic |
| Spindle Motor | 30 hp |
| Spindle Speeds (RPM) | 3300 |
| Spindle Bore/Bar Capacity | 3.15 in |
| Max. Bar Capacity | 2.75" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Parts Catcher | Yes |
| Bar Feed | Yes |
| Control | CNC (MAZATROL FUSION 640) |
| Weight | 12,000 LBS |
SPECIFICATIONS:
MAX SWING OVER BED 23.64"
MAX SWING OVER CARRIAGE 16.14"
MAX TAILSTOCK POSITION 41"
MAX MACHINABLE CENTER DISTANCE 39.78"
STANDARD CHUCK SIZE 10"
X-AXIS TRAVELS 9.8"
Z-AXIS TRAVELS 39.78"
RAPID TRAVERSE RATE (X-AXIS) 787 IPM
RAPID TRAVERSE RATE (Z-AXIS) 787 IPM
NUMBER OF TURRETS 1
TOOL POSITIONS 16 TOTAL
SPINDLE BORE 3.15"
BAR CAPACITY 2.75"
SPINDLE NOSE A2-8
SPINDLE SPEED RANGE 30-3300 RPM
SPINDLE HORSEPOWER 30 HP
APPROXIMATE MACHINE DIMENSIONS 107" X 83"
APPROXIMATE MACHINE HEIGHT 69"
APPROXIMATE MACHINE WEIGHT 12,000 LBS
MAZATROL FUSION 640 CNC W/ CRT
10" 3-JAW POWER CHUCK
5C COLLET ATTACHMENT
BED MOUNTED TAILSTOCK W/PROGRAMMABLE BODY AND QUILL,
16 POSITION TOOL TURRET
BACKGROUND TOOL PATH CHECK
RS-232 FOR DNC INTERFACE
TOOL EYE SWING DOWN TOOL SETTING PROBE
CHIP CONVEYOR AND COOLANT SYSTEM.
