MAZAK QT 30N
Have one to sell?
ConditionUsed
1 available

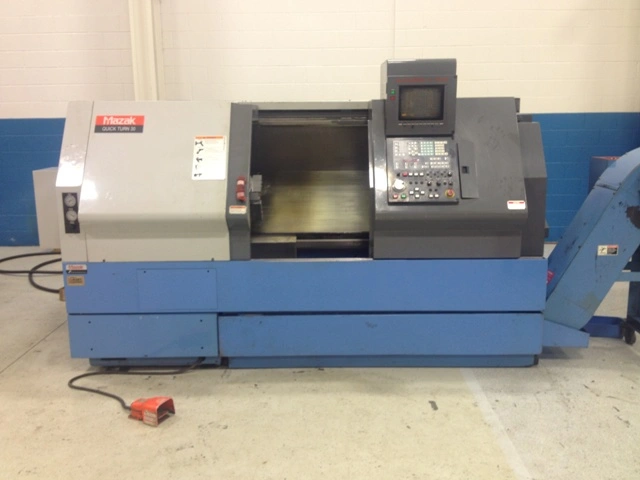

THIS CLASSIC QT 30N HAS A 12" CHUCK, 2.76" BAR CAP, 40" CENTERS, TAILSTOCK AND MAZATROL T-PLUS CONTROL.
SPECIFICATIONS:
MAX. SWING 20.08 IN
MAX. CUTTING DIAMETER 12.2 IN
MAX. CUTTING LENGTH 37.63 IN
MAX. BAR WORK SIZE 2.76 IN
SPINDLE SPEED 33 - 3300 RPM
SPINDLE NOSE CONFIGURATION A2-8 IN
SPINDLE BORE DIAMETER 3.15 IN
X-AXIS TRAVEL 8 IN
Z-AXIS TRAVEL 40 IN
TURRET TYPE OCTAGONAL
TURRET POSITIONS 8
TOOL CAPACITY 16
TURRET INDEXING TIME
CHIP TO CHIP 2.5 SECONDS
RAPID TRAVERSE RATE
X-AXIS 787 IPM
Z-AXIS 984 IPM
TAILSTOCK CENTER MT # 5
STROKE OF TAILSTOCK BODY 32.87 IN
STROKE OF TAILSTOCK QUILL 5.12 IN
MAIN SPINDLE MOTOR (30 MIN/ CONT.) AC 30 / 26 HP
MACHINE HEIGHT 72.64 IN
FLOOR SPACE REQUIREMENTS 127.4 IN X 76.77 IN
MACHINE WEIGHT 11,700 LBS.
MAZATROL T-PLUS CONTROL
12 INCH CHUCK
PROGRAMMABLE TOOL EYE
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE MANUALS
THIS CLASSIC QT 30N HAS A 12" CHUCK, 2.76" BAR CAP, 40" CENTERS, TAILSTOCK AND MAZATROL T-PLUS CONTROL.
Imperial
| Max. Swing | 20.08" |
| Max Turning Diameter | 12.2" |
| Spindle Bore/Max Bar Capacity | 3.15"/ 2.75" |
| Z Travel | 40" |
| X Travel | 8" |
| Machining Length | 37.63" |
| Chuck Size | 12" |
| Chuck Type | Hydraullic |
| Spindle Motor | 30 hp |
| Spindle Speeds (RPM) | 3300 |
| Spindle Bore/Bar Capacity | 3.15 in |
| Max. Bar Capacity | 2.76" |
| Turret Tool Positions | 16 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL T-PLUS) |
| Dimensions | 127.4" X 76.77" X 72.64" |
| Weight | 11,700 LBS |
SPECIFICATIONS:
MAX. SWING 20.08 IN
MAX. CUTTING DIAMETER 12.2 IN
MAX. CUTTING LENGTH 37.63 IN
MAX. BAR WORK SIZE 2.76 IN
SPINDLE SPEED 33 - 3300 RPM
SPINDLE NOSE CONFIGURATION A2-8 IN
SPINDLE BORE DIAMETER 3.15 IN
X-AXIS TRAVEL 8 IN
Z-AXIS TRAVEL 40 IN
TURRET TYPE OCTAGONAL
TURRET POSITIONS 8
TOOL CAPACITY 16
TURRET INDEXING TIME
CHIP TO CHIP 2.5 SECONDS
RAPID TRAVERSE RATE
X-AXIS 787 IPM
Z-AXIS 984 IPM
TAILSTOCK CENTER MT # 5
STROKE OF TAILSTOCK BODY 32.87 IN
STROKE OF TAILSTOCK QUILL 5.12 IN
MAIN SPINDLE MOTOR (30 MIN/ CONT.) AC 30 / 26 HP
MACHINE HEIGHT 72.64 IN
FLOOR SPACE REQUIREMENTS 127.4 IN X 76.77 IN
MACHINE WEIGHT 11,700 LBS.
MAZATROL T-PLUS CONTROL
12 INCH CHUCK
PROGRAMMABLE TOOL EYE
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
ALL AVAILABLE MANUALS
