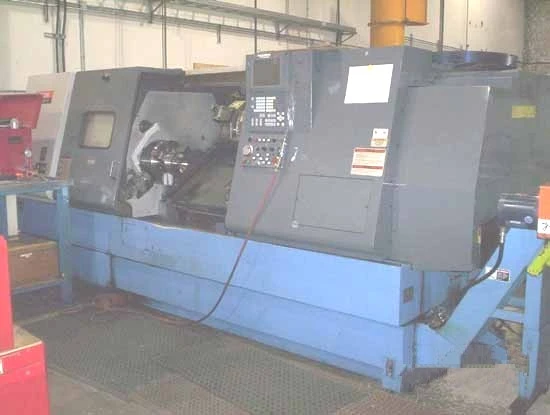

MAZAK QT 350HP
Have one to sell?
ConditionUsed
1 available
THIS QT 350HP HAS 60" CENTERS, 15" HYDAULIC CHUCK, STEADY REST TAISLTOCK AND FUSION 640 CONTROLS.
SPECIFICATIONS:
MAX. SWING 25.93"
MAX. CUTTING DIAMETER 19.88"
MAX. CUTTING LENGTH 60.35"
SPINDLE NOSE A2-11"
SPINDLE BORE 4.09"
SPINDLE SPEEDS 6-2500 RPM
SPINDLE TORQUE 530 FT-LBS.
TURRET TYPE 24 POSITION
TOOL SIZE 1.25" X 1.25" X 6"
TURRET CLAMPING FORCE 11,700 LBS.
STROKE OF TURRET X , Z 10.63", 62.99"
RAPID TRAVERSE RATE X , Z 472 IPM , 787 IPM
TAILSTOCK CONTROL FULLY PROGRAMABLE
TAILSTOCK QUILL DIA. 3.94"
TAILSTOCK CENTER MT # 4
STROKE OF TAIL BODY 47.87"
MAIN MOTOR 35 HP AC
MACHINE WEIGHT 14,600 #
MAZATROL FUSION 640T CNC CONVERSATIONAL CONTROL
MANUAL STEADY REST
AUTOMATIC TOOL EYE
BACKGROUND PATH CHECK
3.5 FLOPPY DISC
15" 3-JAW HYDRAULIC CHUCK
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
THIS QT 350HP HAS 60" CENTERS, 15" HYDAULIC CHUCK, STEADY REST TAISLTOCK AND FUSION 640 CONTROLS.
Imperial
| Max. Swing | 25.93" |
| Max Turning Diameter | 19.88" |
| Spindle Bore/Max Bar Capacity | 4.09"/ 3.5" |
| Z Travel | 62.99" |
| X Travel | 10.63" |
| Machining Length | 60.35" |
| Chuck Size | 15" |
| Chuck Type | Hydraullic |
| Spindle Motor | 35 hp |
| Spindle Speeds (RPM) | 2500 |
| Spindle Bore/Bar Capacity | 4.09 in |
| Max. Bar Capacity | 3.5" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Steady Rest | Yes |
| Control | CNC (MAZATROL FUSION 640T) |
| Weight | 14,600 LBS |
SPECIFICATIONS:
MAX. SWING 25.93"
MAX. CUTTING DIAMETER 19.88"
MAX. CUTTING LENGTH 60.35"
SPINDLE NOSE A2-11"
SPINDLE BORE 4.09"
SPINDLE SPEEDS 6-2500 RPM
SPINDLE TORQUE 530 FT-LBS.
TURRET TYPE 24 POSITION
TOOL SIZE 1.25" X 1.25" X 6"
TURRET CLAMPING FORCE 11,700 LBS.
STROKE OF TURRET X , Z 10.63", 62.99"
RAPID TRAVERSE RATE X , Z 472 IPM , 787 IPM
TAILSTOCK CONTROL FULLY PROGRAMABLE
TAILSTOCK QUILL DIA. 3.94"
TAILSTOCK CENTER MT # 4
STROKE OF TAIL BODY 47.87"
MAIN MOTOR 35 HP AC
MACHINE WEIGHT 14,600 #
MAZATROL FUSION 640T CNC CONVERSATIONAL CONTROL
MANUAL STEADY REST
AUTOMATIC TOOL EYE
BACKGROUND PATH CHECK
3.5 FLOPPY DISC
15" 3-JAW HYDRAULIC CHUCK
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
