MAZAK QT 40BB

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES 2 AXIS
Manufacturer:
MAZAK
Model:
QT 40BB
Year:
1997
Stock #:
3376
Status:
For Sale

Description

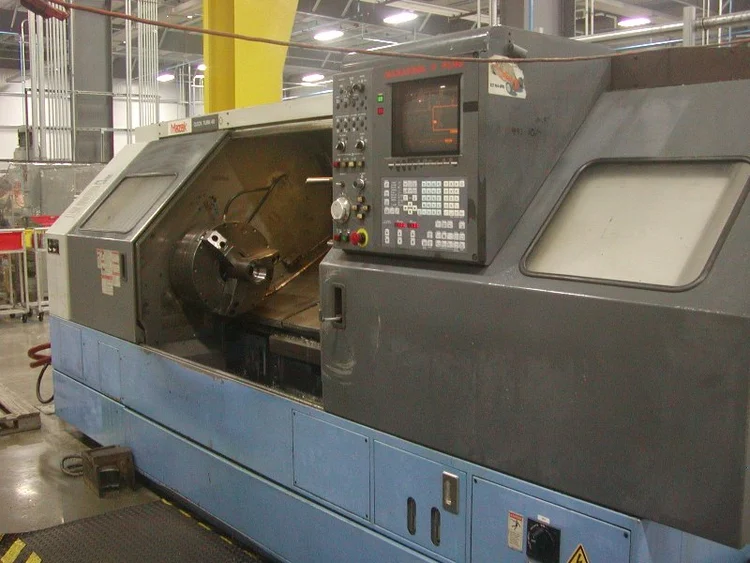

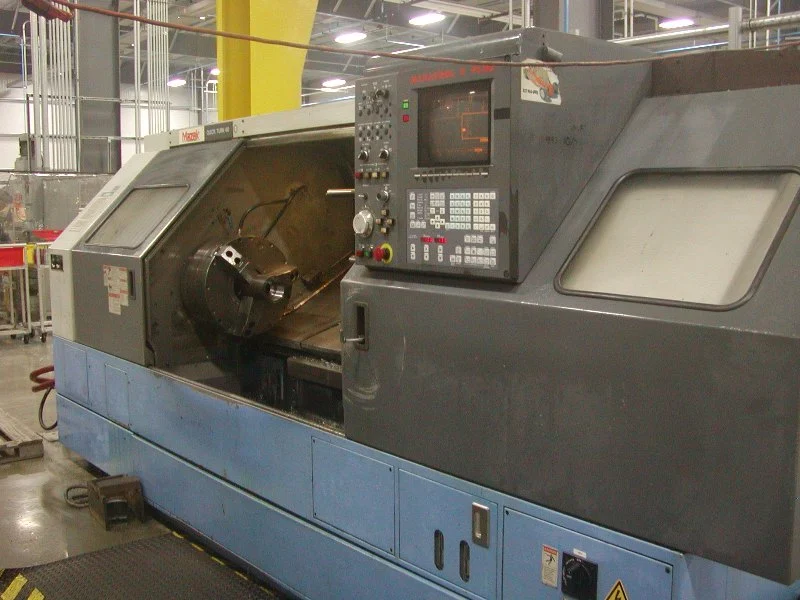

THIS BEEFY QT 40 HAS MAZATROL T-PLUS CONTROL, 24 POSITION TURRET, TAILSTOCK AND A 18" SMW AIR CHUCK WITH A 6.5" SPINDLE BORE AND 1300 RPM SPINDLE.

Max. Swing20"508 mm
Max Turning Diameter15.7"398.78 mm
Spindle Bore/Max Bar Capacity6.5"/ 6.5"6.5"/ 6.5"
Z Travel61.3"1,557 mm
X Travel11"279.4 mm
Machining Length59.3"1,506.2 mm
Chuck Size18"457.2 mm
Chuck TypeAirAir
Spindle Motor40 hp
Spindle Speeds (RPM)13001300
Spindle Bore6.5 in
Max. Bar Capacity6.5"165.1 mm
Turret Tool Positions1212
TailstockYesYes
ControlCNC (MAZATROL T-PLUS)CNC (MAZATROL T-PLUS)
Dimensions81" X 165.5" X 74.2"81" X 165.5" X 74.2"
Weight13,668 LBS13,668 LBS

SPECIFICATIONS:
CHUCK 18" SMW
MAX. SWING 20"
MAX. CUTTING DIA. 15.7"
MAX. WORK LENGTH 59.3"
X-AXIS TRAVEL 11"
Z-AXIS TRAVEL 61.3"
RAPID TRAVERSE X 412 IPM
TAPID TRAVERSE Y 709 IPM
TURRET TYPE 24 ATC
SPINDLE NOSE A2-11"
SPINDLE BORE 6.5"
MAX. BAR CAPACITY 6.5" W/ AIR CHUCK
SPINDLE SPEED 10~1300 RPM
SPINDLE MOTOR AC 30 / 40 HP
TAILSTOCK CENTER / DIA MT # 5 / 3.94"
TAILSTOCK QUILL / BODY TRAVEL 5.1" / 54.5"
MACHINE DIMENSIONS LXWXH 81" X 165.5" X 74.2"
WEIGHT CAPACITY 13,668 LBS

MAZATROL T-PLUS
18.5" SMW CHUCK
COOLANT SYSTEM
TOOL EYE
ALL AVAILABLE TOOLING
ALL AVAILABLE MANUALS
